Scheduling Types in Kubernetes (K8s) ☸️ 🕒

Scheduling

• Kubernetes users normally don’t need to choose a node to which their Pods should be scheduled.

• Instead, the selection of the appropriate node(s) is automatically handled by the Kubernetes scheduler.

• Automatic node selection prevents users from selecting unhealthy nodes or nodes with a shortage of resources.

• However, sometimes manual scheduling is needed to ensure that certain pods only scheduled on nodes with specialized hardware like SSD storages, or to co-locate services that communicate frequently(availability zones), or to dedicate a set of nodes to a particular set of users.

• Kubernetes offers several ways to manual schedule the pods. In all the cases, the recommended approach is to use label selectors to make the selection.

• Manual scheduling options include:

1. nodeName

2. nodeSelector

3. Node affinity

4. Taints and Tolerations

nodeName

• nodeName is a field of PodSpec.

• nodeName is the simplest form of node selection constraint, but due to its limitations it is typically not used.

• When scheduler finds no nodeName property, it automatically adds this and assigns the pod to any available node.

• Manually assign a pod to a node by writing the nodeName property with the desired node name.

• We can also schedule pods on Master by this method.

• Some of the limitations of using nodeName to select nodes are:

▪ If the named node does not exist, the pod will not be run, and in some cases may be automatically deleted.

▪ If the named node does not have the resources to accommodate the pod, the pod will fail and its reason will indicate why, for example OutOfmemory or OutOfcpu.

▪ Node names in cloud environments are not always predictable or stable

Prepare to take the reins as we journey into the world of Kubernetes manual scheduling with a real-world example and a single, game-changing command

create “nodeName.yml”:

apiVersion: v1
kind: Pod
metadata:
  name: nginx
spec:
  containers:
  - name: nginx
    image: nginx
    ports:
    - containerPort: 80
  nodeName: k8s-master

Run this command:

kubectl apply –f nodeName.yml

nodeSelector

• nodeSelector is a field of PodSpec.

• It is the simplest recommended form of node selection constraint.

• It uses labels(key-value pairs) to select matching nodes onto which pods can be scheduled.

• Disadvantage with nodeSelector is it uses hard preferences i.e., if matching nodes are not available pods remain in pending state!

check default node labels:

kubectl describe node <node_name>

Add labels to nodes:

kubectl label nodes <node-name> <label-key>=<label-value>
kubectl label nodes k8s-slave01 environment=dev

Create a “nodeSelector.yml”:

apiVersion: v1
kind: Pod
metadata:
  name: nginx
  labels:
    env: test
spec:
  containers:
  - name: nginx
    image: nginx
  nodeSelector:
    environment: dev

Run this command:

kubectl apply –f nodeSelector.yml  #To create pod
kubectl get pods –o wide --show -labels #To get all pods with labels
kubectl describe pod <pod-name> #To describe the pod/to get more details about the pod

nodeAffinity

• Node affinity is specified as field nodeAffinity in PodSpec.

• Node affinity is conceptually similar to nodeSelector — it allows you to manually schedule pods based on labels on the node. But it has few key enhancements:

• nodeAffinity implementation is more expressive. The language offers more matching rules besides exact matches created with a logical AND operation in nodeSelector.

• Rules are soft preferences rather than hard requirements, so if the scheduler can’t find a node with matching labels, the pod will still be scheduled on other nodes There are currently two types of node affinity rules:

1. requiredDuringSchedulingIgnoredDuringExecution: Hard requirement like nodeSelector. No matching node label, no pod scheduling!

2. preferredDuringSchedulingIgnoredDuringExecution: Soft requirement. No matching node label, pod gets scheduled on other nodes!

The IgnoredDuringExecution part indicates that if labels on a node change at runtime such that the affinity rules on a pod are no longer met, the pod will still continue to run on the node.

Create a “nodeAffinity.yml”:

apiVersion: v1
kind: Pod
metadata:
  name: with-node-affinity
spec:
  affinity:
    nodeAffinity:
      requiredDuringSchedulingIgnoredDuringExecution:
        nodeSelectorTerms:
        - matchExpressions:
          - key: environment
            operator: In
            values:
            - prod
  containers:
  - name: nginx-container
    image: nginx

Run this command:

kubectl apply –f nodeAffinity.yml

• Pod gets scheduled on the node has the label environment=production.

• If none of the nodes has this label, pod remains in pending state.

• To avoid this, use affinity “preferredDuringSchedulingIgnoredDuringExecution”

Taints and Tolerations

• Node affinity is a property of Pods that attracts them to a set of nodes (either as a preference or a hard requirement).

• Taints are the opposite — they allow a node to repel a set of pods.

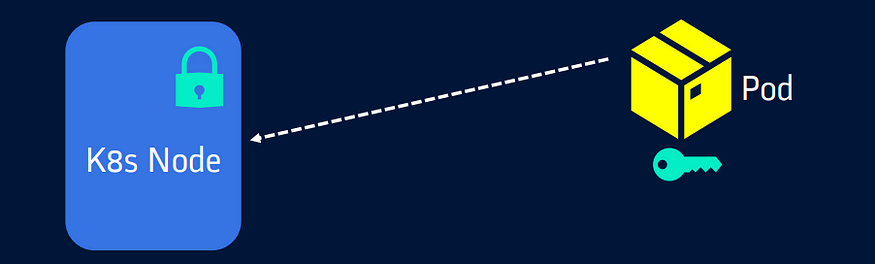

• Taints are applied to nodes(lock).

• Tolerations are applied to pods(keys).

• In short, pod should tolerate node’s taint in order to run in it. It’s like having a correct key with pod to unlock the node to enter it.

• Taints and tolerations work together to ensure that pods are not scheduled onto inappropriate nodes.

• By default, Master node is tainted. So you cannot deploy any pods on Master .

To check taints applied on any node use kubectl describe node <node_name>

Apply taint to nodes:

kubectl taint nodes <node-name> key=value:<taint-effect>

• taint’s key and value can be any arbitrary string.

• taint effect should be one of the supported taint effects such as

1. NoSchedule: no pod will be able to schedule onto node unless it has a matching toleration.

2. PreferNoSchedule: soft version of NoSchedule. The system will try to avoid placing a pod that does not tolerate the taint on the node, but it is not required.

3. NoExecute: node controller will immediately evict all Pods without the matching toleration from the node, and new pods will not be scheduled onto the node

Apply taint to nodes:

kubectl taint nodes k8s-slave01 env=stag:NoSchedule

In the above case, node k8s-slave01 is tained with label env=stag and taint effect as NoSchedule. Only pods that matches this taint will be scheduled onto this node

Create “taint_toleration.yml”

apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-deployment
spec:
  replicas: 3
  selector:
    matchLabels:
      app: myapp
  template:
    metadata:
      name: myapp-pod
      labels:
        app: myapp
    spec:
      containers:
      - name: nginx-container
        image: nginx
      tolerations:
      - key: "env"
        operator: "Equal"
        value: "stag"
        effect: "NoSchedule"

Run this command:

kubectl apply –f taint_toleration.yml

• Here pods are scheduled onto both the slave nodes.

• Only slave01 is tainted here and matching tolerations are added to pods. So pods are scheduled onto slave-01 as well.

• If we remove the tolerations from the pods and deploy them, they will get scheduled onto slave-02 only as slave01 is tainted and matching toleration is removed/not available with pods!

Congratulations, you’ve now mastered the art of manual scheduling in Kubernetes! 🚀 With nodeName, nodeSelector, nodeAffinity, and taint toleration at your command, you’ve unlocked a new level of control over your containerized applications.

🛠️ Keep up the great work, and remember that Kubernetes offers a world of possibilities for those who dare to explore. 🌟 It’s as if you’ve gained the keys to the kingdom, and your container orchestration journey has just begun. 🗝️ Happy orchestrating! 🎉
