Moth Flame Optimization in Swarm Intelligence

The moth flame optimization algorithm is a biological meta-heuristic optimization algorithm that draws its inspiration from the behavior of moths attracted to light sources and in this case flames or fire. This algorithm is designed to solve optimization problems by mimicking the spiralling behaviour of moths around a flame which in turn can be used to find optimal solutions in various fields.

Introduction

This algorithm is based on the behavior of moths to be attracted towards flames where they display a high amount of convergence towards the light source and this behavior is attributed to their transverse orientation, a navigation strategy that involves keeping a light source at a fixed angle to the moth, allowing them to fly in a straight line towards it. When a closer light source is introduced, the moths adjust their angle and end up spiraling around the light and this pattern is similar to how the algorithm seeks optimal solutions by adjusting their search direction based on the best solutions found so far.

Inspiration for the algorithm

The inspiration and base structure for the algorithm comes from the natural behavior of moths around flames and light sources in general and it is a perfect example of a population-based optimization algorithm, where the moths are analogous to solutions in an optimization problem and the flames represent the best solutions found so far.

Moths are known to be attracted by flames and this attraction is not random but is a consequence of their natural strategy employed for navigation known as transverse orientation. Moths tend to use a digital light source, typically the moon to fly in a straight line by keeping the source of light at a fixed angle to themselves. However, when a closer light source is introduced, the moths adjust their angle and end up spiraling around the light. This spiral behavior is what inspired this algorithm where the algorithm aims to simulate the movement of the moths around the flames to find the optimal solutions.

In the context of optimization problems, the algorithm frames the problem by considering a population of moths, each represented by a vector in a matrix. The algorithm also uses another matrix of moths, called the Flame matrix, to represent the best solutions found so far. The goal of the algorithm is to move the moths toward the flames by updating their positions based on a logarithmic spiral. simulating the moths' movement around the flames. This process is iterated until convergence or a predefined number of iterations is reached.

Convergence

The algorithm starts with the initialization of the population of moths and flames. It is designed to solve optimization problems by simulating the movement of the moths around the flames to find the optimal solutions. The algorithm starts with an initial population of moths and flames, where the moths represent potential solutions and the flames represent the best solutions found so far. Through an iterative process, the algorithm updates the positions of the moths based on the flames, using a logarithmic spiral to simulate the moths' movement around the flames. This process aims to converge the movement of the moths toward the flames which represents the optimal solution.

Significance of the logarithmic spiral

A logarithmic spiral or a growth spiral is a self-similar spiral curve that often shows up in different parts of nature whose turning distances are determined through a geometric progression. The significance of this geometrical shape in the moth flame optimization algorithm lies in its ability to efficiently and effectively guide the moths towards the flames where the moths represent the solutions identified and the flames represent the optimal solutions to solve the optimization task in hand. This movement is inspired by the natural behavior of moths around flames, where moths adjust their path based on the distance to the flame, leading them to spiral around the flame in a logarithmic fashion.

This behavior is used to update the positions of the moths in each iteration, with the distance to the flame influencing the direction and speed of the moth's movement. This approach ensures that the moths are not only drawn towards the flames but also adjust their paths based on the best solutions found so far, facilitating the exploration of the search space and the convergence towards optimal solutions. The logarithmic spiral movement thus plays a crucial role in balancing exploration and exploitation, avoiding local optima, and ensuring the algorithm's effectiveness in solving optimization problems

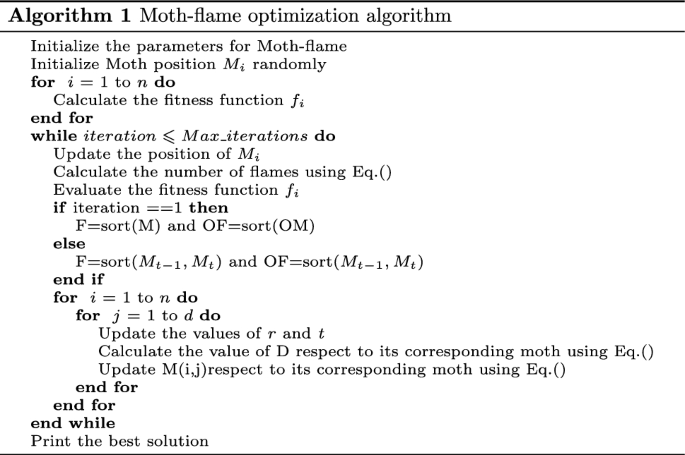

Algorithm or Steps undertaken in the Moth Flame Optimization Algorithm

The moth flame optimization algorithm tends to follow a series of steps designed to simulate the behavior of moths being attracted toward flames to find optimal solutions to optimization problems. Here are the steps that are involved -

Initialization: The algorithm starts with initializing a population of moths and flames. Every moth represents a potential solution to the optimization problem that is to be solved where every flame represents the best solution found so far. The initial positions of the moths and flames are randomly generated within a search space.
Moth Movement: The moths move toward the flames in a logarithmic spiral pattern simulating the moths' behavior when they move toward a light source close to them. This movement is guided by the distance between each moth and its corresponding flame. The moths' positions are updated on every iteration based on their spiral movement.
Flame Update: The algorithm then updates the positions of the flames based on the current positions of the moths. The flames are represented by the best positions found so far, and their positions are updated to reflect the positions of the moths that have converged towards them.
Convergence: The algorithm continues this process of updating moth positions and the positions of the flame until a set convergence criterion is fulfilled. This criterion could be a specific number of iterations without significant changes in the positions of the moths or flames, indicating that the algorithm has reached a stable state.
Dynamic Adjustment: Throughout the iterations, the algorithm dynamically adjusts the number of flames. Initially, there may be a large number of flames but as the algorithm progresses, the number of flames keeps reducing. This adjustment helps in the balancing of the exploration and exploitation, ensuring that the algorithm doesn't prematurely converge to suboptimal solutions by focusing too much on the best solutions so far.
Avoiding Local Optima: By maintaining a population of potential solutions and dynamically adjusting the focus towards the best solutions found, the algorithm is particularly effective in avoiding local optima.
Termination: The algorithm terminates when the convergence criterion is met or after a predefined number of iterations. At this point, the flames represent the best solutions found by the algorithm, which can be solved by the optimization problem.

Constraints for the algorithm

The moth flame optimization algorithm uses the following variables or search parameters for the algorithm to work. These act as constraints for this algorithm to help the algorithm course correct itself. The constraints are -

Moths: The moths themselves tend to represent potential solutions to the optimization problem that is to be solved where every single moth is defined by its position in the search space.
Flames: Flames represent the best solutions found so far, initially there's only one flame, but more can be added based on the algorithm's progress.
Levy Flight: A random search mechanism is undertaken by the moths which is analogous to their foraging behavior of moving toward a light source. This parameter helps the moths to explore the search space in a much more efficient manner.

Exploration vs Exploitation in the Moth Flame Optimization Algorithm

As in many agent-based optimization paradigms employed to solve non-deterministic problems, exploration/exploitation needs to be considered. In the case of the moth flame optimization algorithm, the moths are forced to exploit their corresponding flame. This, however, prevents the algorithm from over-exploitation early on and encourages them to explore instead preventing pre-mature stopping of the algorithm. On the other hand, if we kept the number of flames constant over time, we may end up under-exploiting the best solutions discovered so far. So, to avoid this, the number of flames is also decreased over time. In general, we tend to update the moths in relation to the best corresponding flames. Since we progressively decrease the number of flames, the remaining moths are updated with respect to the last flame.

Variations of the Moth Flame Optimization Algorithm

Some of the common variations of this algorithm employed to solve optimization problems are -

Multi-Objective Moth Flame Optimization Algorithm: These variants adapt the algorithm to handle problems with multiple objectives, requiring trade-offs between them.
Binary Moth Flame Optimization: These versions tackle problems with binary variables, where the solutions are represented by 0s and 1s.
Hybridization with other algorithms: The algorithm is often combined with other optimization methods like Genetic Algorithms, Simulated annealing, and more which can leverage their strengths and also address their weaknesses/limitations.

Applications of the Moth Flame Optimization Algorithm

The Moth Flame Optimization algorithm has been applied to various tech fields to solve complex optimization problems. Its ability to avoid local optima and explore alternative areas of the search space makes it particularly effective in finding optimal or near-optimal solutions. Some of the applications of this algorithm include -

Avoiding Local Optima: This algorithm is designed to balance exploration and exploitation making it effective in avoiding the local optima. This is achieved by maintaining a population of potential solutions and dynamically adjusting the focus towards the best solutions found. This feature allows the algorithms to converge towards optimal solutions while still exploring alternative areas of the search space, ensuring a more comprehensive search for the best solutions.
Solving Optimization Problems: This algorithm has been used to solve a wide range of optimization problems, including those in the fields of engineering, computer science, and mathematical optimization. The algorithm's ability to model the behavior of moths attracted to flames and use this behavior to find optimal solutions makes it versatile and applicable to various types of optimization tasks.
Renewable Energy Optimization: This algorithm can aid in the sizing and placement of renewable energy sources like solar panels and wind turbines to maximize energy production and minimize costs.
Power System Planning: Optimizing the expansion of power grids to meet future demand while considering reliability and cost.
Control System Design: This algorithm can prove to be useful for the tuning of controller parameters for optimal performance in various systems like robots, drones, and industrial processes.
Image Segmentation: This algorithm can be used to divide an image into meaningful regions for further analysis such as object detection and tracking.
Feature Selection: Identifying the most relevant features from an image for tasks like classification and recognition.
Image Enhancement: Improving image quality by removing noise, adjusting brightness, and enhancing contrast.

Limitations of the Moth Flame Optimization Algorithm

While powerful, the moth flame optimization algorithm has limitations that need to be considered before applying it to solve your problem. Here are some of its key limitations -

Premature Convergence: This algorithm while mostly efficient at avoiding premature convergence, could end up stuck in a particular local optimum if the search space of the task in hand tends to prove to be extremely tricky to navigate with deceptive valleys and troughs in it. This is because the algorithm relies on the previously found or existing good solutions to propel its search forward and if these flames [current solutions] are suboptimal, it might not explore the other regions in an effective manner.
Limited Diversity: The basic moth flame optimization algorithm relies on a single flame initially and only adds more flames later based on specific conditions. This can limit the exploration of diverse regions in the search space, potentially leading to suboptimal solutions.
Parameter Sensitivity: While this algorithm has very few parameters come into play for it to solve the problem at hand in general, these few parameters could significantly affect its performance in general. It is crucial to tune these parameters effectively which requires experience and problem-specific knowledge
Slow convergence in Complex Problems: For highly complex and technical problems with a lot of dimensions and intricate relationships, this algorithm could take a hit to its performance. This algorithm could converge slowly as compared to other algorithms. This is because the balance between exploration and exploitation might not be optimal for such scenarios.
High Memory Usage: When dealing with large-scale problems with many variables, the algorithm can require a significant amount of storage to keep track of all of the moth positions and the flame positions as well which can prove to be a bottleneck for resource-constrained environments or problems.
Unsuitable for Discrete Problems: This algorithm is based on the fact that optimization can be achieved iteratively and is meant for continuous optimization problems in general. It might not be suitable for problems with discrete variables or those requiring specific constraints on solution values.
Lack of Theoretical Guarantees: This algorithm lacks rigorous theoretical guarantees about its convergence behaviour or optimality of solutions which makes it difficult to predict its performance beforehand and requires empirical evaluation of every problem.
Difficulty in Handling Constraints: This algorithm does not naturally handle constraints in optimization problems. Additional modifications or hybrid approaches might be needed to incorporate constraints effectively.
Lack of Adaptability: This algorithm might not adapt well to problems with dynamic changes or where the optimal solution evolves over time. It is primarily suited for static optimization problems.
Potential for Stagnation: For cases where the moths could get attracted to one single solution or flame in this context for an extended period of time, the algorithm can stagnate and lose its exploration capabilities, leading to suboptimal solutions.

Code Implementation with MealPy

Now, we will be implementing this algorithm with the help of a Python library named MealPy -

import numpy as np
from mealpy import FloatVar, MFO

def objective_function(solution):
    return np.sum(solution**2)

problem_dict = {
    "bounds": FloatVar(lb=(-10.,) * 30, ub=(10.,) * 30, name="delta"),
    "minmax": "min",
    "obj_func": objective_function
}

model = MFO.OriginalMFO(epoch=200, pop_size=50)
g_best = model.solve(problem_dict)
print(f"Solution: {g_best.solution}, Fitness: {g_best.target.fitness}")
print(f"Solution: {model.g_best.solution}, Fitness: {model.g_best.target.fitness}")

Conclusion

Overall, The Moth Flame Optimization algorithm offers a robust and easy-to-implement approach to solving optimization problems. By mimicking the behavior of moths attracted to flames, MFO balances exploration and exploitation avoids local optima, and maintains the best solutions found so far. This makes it a versatile algorithm with potential applications in various optimization tasks.
