Introduction :-

This document provides instructions and an explanation of the AWS CloudFormation template for deploying an API Gateway. The template defines a set of AWS resources and configurations to create the API Gateway, custom domains.

Template Structure

The CloudFormation template is written in YAML format and is structured as follows:

• AWSTemplateFormatVersion: Specifies the template version.

• Transform: Uses the AWS::Serverless-2016-10-31 transform.

• Parameters: Input parameters for customization.

• Conditions: Conditional logic based on parameter values.

• Resources: Definitions of AWS resources.

• Outputs: Stack outputs for reference.

Deployment Steps

Follow these steps to upload and create the CloudFormation stack using the AWS Management Console:

1. Sign in to the AWS Management Console: Log in to your AWS account if you haven’t already.

2. Navigate to CloudFormation: Go to the AWS CloudFormation service from the AWS Management Console.

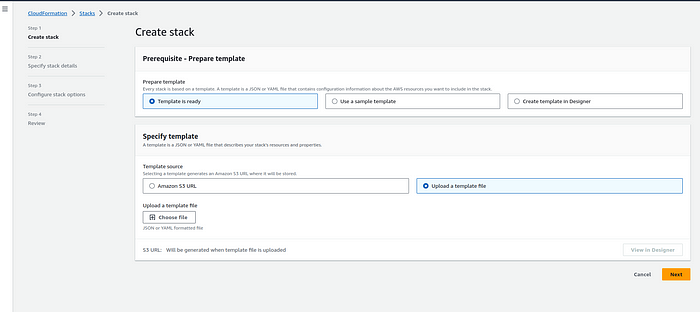

3. Click the “Create stack” button.

4. Upload the CloudFormation template file (YAML).

Yaml File :

AWSTemplateFormatVersion: '2010–09–09'
Transform: AWS::Serverless-2016–10–31
Description: 'AWS CloudFormation Template Api Gateway.'
Parameters:
 EnvironmentName:
 Description: Environment name for the application - [dev/staging/production]
 Type: String
 AllowedValues:
 - dev
 - staging
 - production
 ApiGatewayName:
 Type: String
 Default: aip-api-gw
 CorsAllowOrigins:
 Type: String
 Description: Comma seperated list of origins from where API calls are allowed
 DomainName:
 Type: String
 CertificateArn:
 Type: String
 Route53HostedZoneId:
 Type: String
 JwtIssuer:
 Type: String
 FrontendAppClientId:
 Type: String
Conditions:
 DomainNotEmpty: !Not [!Equals [!Ref DomainName, '']]
Resources:
 ApiGateway:
 Type: AWS::ApiGatewayV2::Api
 Properties:
 Name: !Sub ${EnvironmentName}-${ApiGatewayName}
 Description: AIP Api Gateway
 ProtocolType: HTTP
 Version: '0.1'
 CorsConfiguration:
 AllowCredentials: true
 AllowHeaders:
 - '*'
 AllowMethods:
 - OPTIONS
 - GET
 - POST
 - PUT
 - PATCH
 - DELETE
 AllowOrigins: !Split [',', !Ref CorsAllowOrigins]
 MaxAge: 0
RestApiAuthorizer:
 Type: AWS::ApiGatewayV2::Authorizer
 Properties:
 ApiId: !Ref ApiGateway
 AuthorizerType: JWT
 IdentitySource:
 - '$request.header.Authorization'
 JwtConfiguration:
 Issuer:
 !Ref JwtIssuer
 Name: JwtAuthorizer
ApiLogGroup:
 Type: AWS::Logs::LogGroup
 Properties:
 LogGroupName: !Sub '/aws/API-Gateway/${AWS::StackName}/access-logs'
 RetentionInDays: 7
ApiStage:
 Type: 'AWS::ApiGatewayV2::Stage'
 Properties:
 StageName: !Ref EnvironmentName
 AutoDeploy: true
 ApiId: !Ref ApiGateway
 AccessLogSettings:
 DestinationArn:
 Fn::GetAtt: [ApiLogGroup, Arn]
RouterDomainName:
 Type: 'AWS::ApiGatewayV2::DomainName'
 Condition: DomainNotEmpty
 Properties:
 DomainName: !Ref DomainName
 DomainNameConfigurations:
 - EndpointType: REGIONAL
 CertificateArn: !Ref CertificateArn
 CertificateName: !Ref DomainName
ApiMapping:
 Type: 'AWS::ApiGatewayV2::ApiMapping'
 Condition: DomainNotEmpty
 Properties:
 DomainName: !Ref RouterDomainName
 ApiId: !Ref ApiGateway
 Stage: !Ref ApiStage
DNSRecordSet:
 Type: AWS::Route53::RecordSet
 Condition: DomainNotEmpty
 Properties:
 HostedZoneId: !Ref Route53HostedZoneId
 Type: A
 Name: !Ref DomainName
 AliasTarget:
 DNSName:
 Fn::GetAtt: RouterDomainName.RegionalDomainName
 HostedZoneId:
 Fn::GetAtt: RouterDomainName.RegionalHostedZoneId
Outputs:
 Region:
 Description: 'Region'
 Value: !Ref AWS::Region
ApiGatewayLogGroup:
 Description: 'Api Gateway Log Group'
 Value:
 Fn::GetAtt: [ApiLogGroup, Arn]
 Export:
 Name: !Sub '${AWS::StackName}-ApiGatewayLogGroup'
ApiGatewayEndpoint:
 Description: 'Api Gateway Endpoint'
 Value: !Sub 'https://${ApiGateway}.execute-api.${AWS::Region}.amazonaws.com/${EnvironmentName}/'
 Export:
 Name: !Sub '${AWS::StackName}-ApiGatewayEndpoint'
ApiGatewayId:
 Description: 'Api Gateway ID'
 Value: !Ref ApiGateway
 Export:
 Name: !Sub '${AWS::StackName}-ApiGatewayId'
ApiGatewayJWTAuthorizer:
 Description: 'Api Gateway JWT Authorizer'
 Value: !Ref RestApiAuthorizer
 Export:
 Name: !Sub '${AWS::StackName}-ApiGatewayJWTAuthorizer'

5. Specify Stack Details:

• Enter a Stack name for your deployment.

• Provide parameter values as needed, such as EnvironmentName, ApiGatewayName, and others.

• Review and acknowledge the capabilities (if required).

• You can set additional stack options or tags if necessary.

6. Review and Create:

• Review the stack details and configuration.

• Click “Create stack” to initiate the deployment.

7. Monitor Stack Creation:

• The CloudFormation stack creation process will begin.

• Monitor the stack events in the AWS Management Console.

• Once the stack creation is successful, the API Gateway will be deployed.

After successful stack creation, you can find the following outputs for reference:

• Region: The AWS region where the stack was deployed.

• ApiGatewayLogGroup: The CloudWatch Logs log group for the API Gateway.

• ApiGatewayEndpoint: The endpoint URL of the API Gateway.

• ApiGatewayId: The ID of the API Gateway.

• ApiGatewayJWTAuthorizer: The JWT authorizer for the API Gateway.

conclusion :-

AWS CloudFormation is a valuable tool for deploying and managing AWS resources, including API Gateway. By following best practices and leveraging the capabilities of CloudFormation, you can streamline your API Gateway deployment process, improve infrastructure management, and ensure the reliability and scalability of your APIs.
