Twitter Thread tl;dr with Ai ? part 2

Laurent DoguinLaurent Doguin
11 min read

In part 1 we saw how to scrap Twitter, turn tweets in JSON documents, get an embedding representation of that tweet, store everything in Couchbase and how to run a Vector search. These are the first step of a Retrieval Augmented Generation architecture that could summarize a twitter thread. The next step is to use a Large Language Model. We can prompt it to summarize the thread, and we can enrich the context of the prompt thanks to Vector Search.

Langchain and Streamlit

So how do we make this all work together with an LLM ? That's where the Langchain project can help. Its goal is to enable developers to build LLM-based applications. We already have some samples available on github.com/couchbase-examples/ that showcase our Langchain module. Like this RAG demo allowing the user to upload a PDF, vectorize it, store it in Couchbase and use it in a chatbot: https://developer.couchbase.com/tutorial-nodejs-langchain-pdf-chat. This one is in JavaScript, but there is also a Python version hosted here: https://github.com/couchbase-examples/rag-demo

As it turns out, this is exactly what I want to do, except it's using a PDF instead of a list of tweets. So I forked it and started playing with it: https://github.com/ldoguin/rag-demo-x Here Nithish is using a couple interesting libraries, Langchain of course, and Streamlit. Another cool thing to learn! Streamlit is like a 'PaaS meet low code meet data science' service. It allows you to deploy data based app very easily, with minimum code, in a very, very opinionated way.

Configuration

Let's break down the code in smaller chunks. We can start with the configuration. The following method make sure the right environment variables are set, and stops the application deployment if they are not.

The check_environment_variable method is called several time to make sure the needed configuration is set, and if not will stop the app.

def check_environment_variable(variable_name):
"""Check if environment variable is set"""
if variable_name not in os.environ:
    st.error(f"{variable_name} environment variable is not set. Please add it to the secrets.toml file")
    st.stop()

     check_environment_variable("OPENAI_API_KEY") # The OpenApi API Key I have created and user earlier
       check_environment_variable("DB_CONN_STR") # A connection string to connect to Couchbase, like couchbase://localhost or couchbases://cb.abab-abab.cloud.couchbase.com
       check_environment_variable("DB_USERNAME") # Username
       check_environment_variable("DB_PASSWORD") # And password to connect to Couchbase
       check_environment_variable("DB_BUCKET") # The name of the bucket containing our scopes and collection
       check_environment_variable("DB_SCOPE") # Scope
       check_environment_variable("DB_COLLECTION") # and collection name, you can think of a collection as a table in RDBMS
       check_environment_variable("INDEX_NAME") # The name of the search vector index

This means everything in there is needed. A connection to OpenAI and to Couchbase. Let's quickly talk about Couchbase. It's a JSON, multi-model distributed database with an integrated cache. You can use it as K/V, SQL, Fulltext Search, TimeSeries, Analytics, and we added fantastic new features in 7.6: Recurive CTEs to do graph queries , or the one that interests us most today, Vector Search. Fastest way to try is to go to cloud.couchbase.com, there is a 30 days trial, no credit card required.

From there you can follow the steps and get your new cluster setup. Setup a bucket, scope, collection and index, a user and make sure your cluster is available from outside and you can move on to the next part. Getting a connection to Couchbase from the app. It can be done with these two functions. You can see they are annotated with @st.cache_resource. It's used to cache the object from Streamlit's perspective. It makes it available for other instances or rerun. Here's the doc excerpt

Decorator to cache functions that return global resources (e.g. database connections, ML models).

Cached objects are shared across all users, sessions, and reruns. They must be thread-safe because they can be accessed from multiple threads concurrently. If thread safety is an issue, consider using st.session_state to store resources per session instead.

from langchain_community.vectorstores import CouchbaseVectorStore
from langchain_openai import OpenAIEmbeddings

@st.cache_resource(show_spinner="Connecting to Vector Store")
def get_vector_store(
    _cluster,
    db_bucket,
    db_scope,
    db_collection,
    _embedding,
    index_name,
):
    """Return the Couchbase vector store"""
    vector_store = CouchbaseVectorStore(
        cluster=_cluster,
        bucket_name=db_bucket,
        scope_name=db_scope,
        collection_name=db_collection,
        embedding=_embedding,
        index_name=index_name,
        text_key
    )
    return vector_store

@st.cache_resource(show_spinner="Connecting to Couchbase")
def connect_to_couchbase(connection_string, db_username, db_password):
    """Connect to couchbase"""
    from couchbase.cluster import Cluster
    from couchbase.auth import PasswordAuthenticator
    from couchbase.options import ClusterOptions
    from datetime import timedelta
    auth = PasswordAuthenticator(db_username, db_password)
    options = ClusterOptions(auth)
    connect_string = connection_string
    cluster = Cluster(connect_string, options)
    # Wait until the cluster is ready for use.
    cluster.wait_until_ready(timedelta(seconds=5))
    return cluster

So with this we have a connection to the Couchbase cluster and a connection to the Langchain Couchbase vector store wrapper.

connect_to_couchbase(connection_string, db_username, db_password) creates the Couchbase cluster connection. get_vector_store(_cluster, db_bucket, db_scope, db_collection, _embedding, index_name,) creates the CouchabseVectorStore wrapper. It holds a connection to the cluster, the bucket/scope/collection information to store data, the index name to make sure we can query the vectors, and and embedding property.

Here it refers to the OpenAIEmbeddings function. It will automatically pick up the OPENAI_API_KEY and allow Langchain to use OpenAI's API with the key. Every API call will be made transparent by langchain. Which also means that switching model provider should be fairly transparent when it comes to embedding management.

Writing Langchain Documents to Couchbase

Now, where the magic happens, where we get the tweets, parse them as JSON, create the embedding and write the JSON doc to the specific Couchbase collection. Thanks to Steamlit we can setup a file upload widget and execute an associated function:

import tempfile
import os
from langchain.docstore.document import Document

def save_tweet_to_vector_store(uploaded_file, vector_store):
    if uploaded_file is not None:
       data = json.load(uploaded_file)  # Parse the uploaded file in JSON, expecting an array of objects

    docs = []
    ids = []
    for tweet in data: # For all JSON tweets
        text = tweet['text']
        full_text = tweet['full_text']
        id = tweet['id']
        # Create the Langchain Document, with a text field and associated metadata.
        if full_text is not None:
            doc = Document(page_content=full_text, metadata=tweet)
        else:
            doc = Document(page_content=text, metadata=tweet)
        docs.append(doc)
        ids.append(id) # Create a similar array for Couchbase doc IDs, if not provided, uuid will be automatically generated

    vector_store.add_documents(documents = docs, ids =  ids) # Store all documents and embeddings
    st.info(f"tweet and replies loaded into vector store in {len(docs)} documents")

It looks somewhat similar to the code in part 1, except all the embedding creation is managed transparently by Langchain. The text field will be vectorized, the metadata will be added to the Couchbase doc. It will look like this:

{
"text": "@kelseyhightower SOCKS! I will throw millions of dollars at the first company to offer me socks!\n\nImportant to note here: I don’t have millions of dollars! \n\nI think I might have a problem.",
"embedding": [
    -0.0006439118069540552,
    -0.021693240183757154,
    0.026031888593037636,
    -0.020210755239867904,
    -0.003226784468532888,
    .......
    -0.01691936794757287
],
"metadata": {
    "created_at": "Thu Apr 04 16:15:02 +0000 2024",
    "id": "1775920020377502191",
    "full_text": null,
    "text": "@kelseyhightower SOCKS! I will throw millions of dollars at the first company to offer me socks!\n\nImportant to note here: I don’t have millions of dollars! \n\nI think I might have a problem.",
    "lang": "en",
    "in_reply_to": "1775913633064894669",
    "quote_count": 1,
    "reply_count": 3,
    "favorite_count": 23,
    "view_count": "4658",
    "hashtags": [],
    "user": {
    "id": "4324751",
    "name": "Josh Long",
    "screen_name ": "starbuxman",
    "url ": "https://t.co/PrSomoWx53"
    }
}

From now on we have functions to manage the tweets upload, vectorize the tweets and store them in Couchbase. Time to use Streamlit to build the actual app and manage the chat flow. Let's split that function in several chunks.

Write a Streamlit Application

Starting with the main declaration and the protection of the app. You don't want anyone to use it, and use your OpenAI credits. Thanks to Streamlit it can be done fairly easily. Here we setup a password protection using the LOGIN_PASSWORD env variable. And we also setup the global page config thanks to the set_page_config method. This will give you a simple form to enter the password, and a simple page.

if name == "__main__":
    # Authorization
    if "auth" not in st.session_state:
        st.session_state.auth = False
    st.set_page_config(
        page_title="Chat with a tweet export using Langchain, Couchbase & OpenAI",
        page_icon="🤖",
        layout="centered",
        initial_sidebar_state="auto",
        menu_items=None,
    )
    AUTH = os.getenv("LOGIN_PASSWORD")
    check_environment_variable("LOGIN_PASSWORD")
    # Authentication
    user_pwd = st.text_input("Enter password", type="password")
    pwd_submit = st.button("Submit")
    if pwd_submit and user_pwd == AUTH:
        st.session_state.auth = True
    elif pwd_submit and user_pwd != AUTH:
        st.error("Incorrect password")

To go a bit further we can add the environment variable checks, OpenAI and Couchbase configuration, and a simple title to start the app flow.

if st.session_state.auth:
    # Load environment variables
    DB_CONN_STR = os.getenv("DB_CONN_STR")
    DB_USERNAME = os.getenv("DB_USERNAME")
    DB_PASSWORD = os.getenv("DB_PASSWORD")
    DB_BUCKET = os.getenv("DB_BUCKET")
    DB_SCOPE = os.getenv("DB_SCOPE")
    DB_COLLECTION = os.getenv("DB_COLLECTION")
    INDEX_NAME = os.getenv("INDEX_NAME")

# Ensure that all environment variables are set
check_environment_variable("OPENAI_API_KEY")
check_environment_variable("DB_CONN_STR")
check_environment_variable("DB_USERNAME")
check_environment_variable("DB_PASSWORD")
check_environment_variable("DB_BUCKET")
check_environment_variable("DB_SCOPE")
check_environment_variable("DB_COLLECTION")
check_environment_variable("INDEX_NAME")
# Use OpenAI Embeddings
embedding = OpenAIEmbeddings()
# Connect to Couchbase Vector Store
cluster = connect_to_couchbase(DB_CONN_STR, DB_USERNAME, DB_PASSWORD)
vector_store = get_vector_store(
    cluster,
    DB_BUCKET,
    DB_SCOPE,
    DB_COLLECTION,
    embedding,
    INDEX_NAME,
)
st.title("Chat with X")

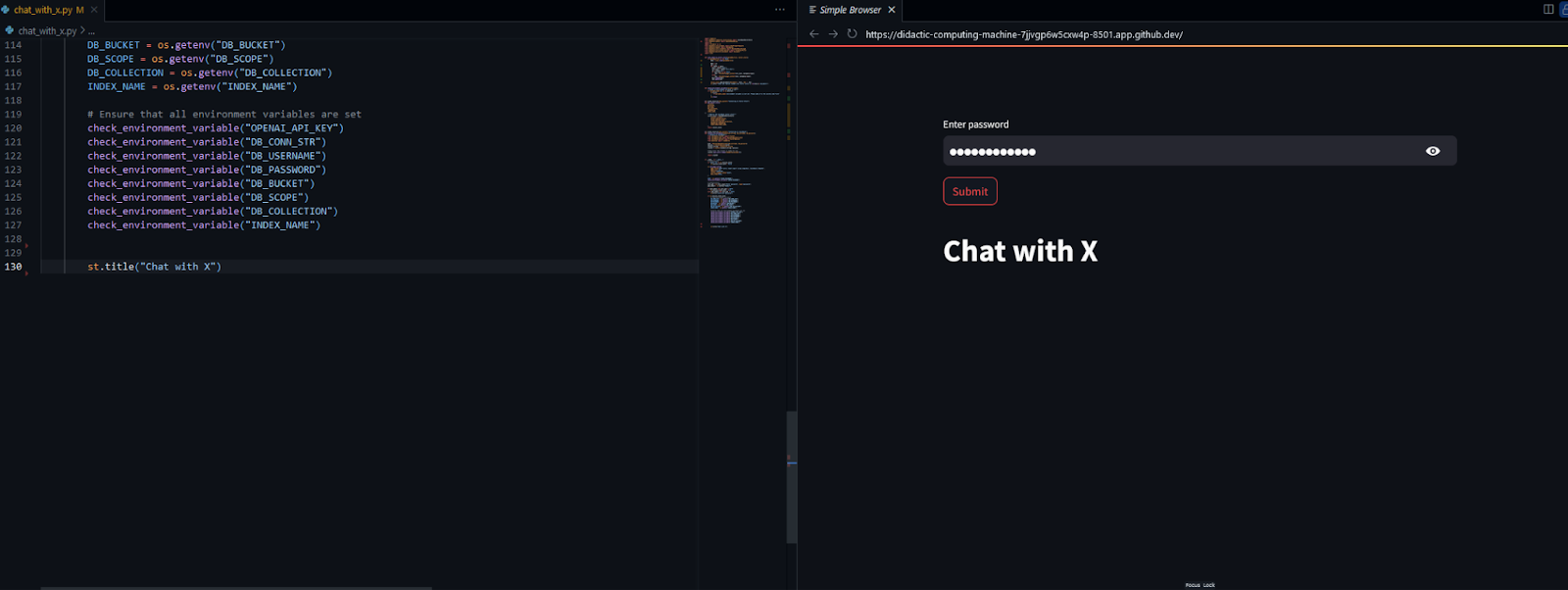

Streamlit has a nice codepsace integration, I really encourage you to use it, it makes developement really easy. And our VSCode plugin can be installed, so you can browse Couchbase and execute queries.

Create Langchain Chains

After that comes the chain setup. That’s really where Langchain shines. This is where we can setup the retriever. It’s going to be used by Langchain to query Couchbase for all the vectorized tweets. Then it’s time to build the RAG prompt. You can see the template takes a {context} and {question} parameter. We create a Chat prompt object from the template.

After that comes the LLM choice, here I chose GPT4. And finally the chain creation.

# Use couchbase vector store as a retriever for RAG
retriever = vector_store.as_retriever()
# Build the prompt for the RAG
template = """You are a helpful bot. If you cannot answer based on the context provided, respond with a generic answer. Answer the question as truthfully as possible using the context below:
{context}
Question: {question}"""
prompt = ChatPromptTemplate.from_template(template)
# Use OpenAI GPT 4 as the LLM for the RAG
llm = ChatOpenAI(temperature=0, model="gpt-4-1106-preview", streaming=True)
# RAG chain
chain = (
    {"context": retriever, "question": RunnablePassthrough()}
    | prompt
    | llm
    | StrOutputParser()
)

The chain is built from the chosen model, the context and query parameters, the prompt object and a StrOuptutParser. Its role is to parse the LLM response and send it back as a streamable/chunkable string. The RunnablePassthrough method called for the question parameter is used to make sure it’s passed to the prompt ‘as is’ but you can use other methods to change/sanitize the question. That's it, a RAG architecture. Giving some additional context to an LLM prompt to get a better answer.

We can also build one chain without it to compare the results:

# Pure OpenAI output without RAG
template_without_rag = """You are a helpful bot. Answer the question as truthfully as possible.
Question: {question}"""
prompt_without_rag = ChatPromptTemplate.from_template(template_without_rag)
llm_without_rag = ChatOpenAI(model="gpt-4-1106-preview")
chain_without_rag = (
    {"question": RunnablePassthrough()}
    | prompt_without_rag
    | llm_without_rag
    | StrOutputParser()
)

No need for context in the prompt template and chain parameter, and no need for a retriever.

Now that we have a couple chain, we can use them through Streamlit. This code will add the first question and the sidebar, allowing for fileupload:

# Frontend
couchbase_logo = (
    "https://emoji.slack-edge.com/T024FJS4M/couchbase/4a361e948b15ed91.png"
)
st.markdown(
    "Answers with [Couchbase logo](https://emoji.slack-edge.com/T024FJS4M/couchbase/4a361e948b15ed91.png) are generated using RAG while 🤖 are generated by pure LLM (ChatGPT)"
)

with st.sidebar:
    st.header("Upload your X")
    with st.form("upload X"):
        uploaded_file = st.file_uploader(
            "Choose a X export.",
            help="The document will be deleted after one hour of inactivity (TTL).",
            type="json",
        )
    submitted = st.form_submit_button("Upload")
    if submitted:
        # store the tweets in the vector store
        save_tweet_to_vector_store(uploaded_file, vector_store)

    st.subheader("How does it work?")
    st.markdown(
    """
    For each question, you will get two answers:
    * one using RAG ([Couchbase logo](https://emoji.slack-edge.com/T024FJS4M/couchbase/4a361e948b15ed91.png))
    * one using pure LLM - OpenAI (🤖).
    """
    )
    st.markdown(
    "For RAG, we are using [Langchain](https://langchain.com/), [Couchbase Vector Search](https://couchbase.com/) & [OpenAI](https://openai.com/). We fetch tweets relevant to the question using Vector search & add it as the context to the LLM. The LLM is instructed to answer based on the context from the Vector Store."
    )
    # View Code
    if st.checkbox("View Code"):
        st.write(
        "View the code here: [Github](https://github.com/couchbase-examples/rag-demo/blob/main/chat_with_x.py)"
        )

Then the instructions and input logic:

# Look at the message history and append the first message if empty
if "messages" not in st.session_state:
    st.session_state.messages = []
    st.session_state.messages.append(
        {
            "role": "assistant",
            "content": "Hi, I'm a chatbot who can chat with the tweets. How can I help you?",
            "avatar": "🤖",
        }
    )

# Display chat messages from history on app rerun
for message in st.session_state.messages:
    with st.chat_message(message["role"], avatar=message["avatar"]):
        st.markdown(message["content"])

# React to user input
if question := st.chat_input("Ask a question based on the Tweets"):
    # Display user message in chat message container
    st.chat_message("user").markdown(question)

    # Add user message to chat history
    st.session_state.messages.append(
        {"role": "user", "content": question, "avatar": "👤"}
    )

    # Add placeholder for streaming the response
    with st.chat_message("assistant", avatar=couchbase_logo):
        message_placeholder = st.empty()

    # stream the response from the RAG
    rag_response = ""
    for chunk in chain.stream(question):
        rag_response += chunk
        message_placeholder.markdown(rag_response + "▌")

    message_placeholder.markdown(rag_response)
    st.session_state.messages.append(
        {
            "role": "assistant",
            "content": rag_response,
            "avatar": couchbase_logo,
        }
    )

    # stream the response from the pure LLM

    # Add placeholder for streaming the response
    with st.chat_message("ai", avatar="🤖"):
        message_placeholder_pure_llm = st.empty()

    pure_llm_response = ""

    for chunk in chain_without_rag.stream(question):
        pure_llm_response += chunk
        message_placeholder_pure_llm.markdown(pure_llm_response + "▌")

    message_placeholder_pure_llm.markdown(pure_llm_response)
    st.session_state.messages.append(
        {
            "role": "assistant",
            "content": pure_llm_response,
            "avatar": "🤖",
        }
    )

With that you have everything needed to run the streamlit app that allows the user to:

  • upload a JSON file containing tweets

  • transform each tweet into a Langchain Document

  • store them in Couchbase along with their embedding representation

  • manage two different prompts

    • one with a Langchain retriever to add context

    • one without

If you run the app you should see something like this:

Conclusion

And when you ask "are Socks are important to developers ?", you get those two very interesting answers:

Based on the context provided, it seems that socks are important for some developers, as mentioned by Josh Long and Simon Willison in their tweets. They express a desire for socks and seem to value them.

Socks are important for developers as they provide comfort and support while spending long hours sitting at a computer. Additionally, keeping feet warm can help improve focus and productivity.

Voilà, we have a bot that knows about a twitter thread, and can answer accordingly. And the fun thing is it did not use just the text Vector in the context, it also used all the metadata stored like the username, because we also indexed all the Langchain document metadata when creating the Index in part 1.

But is this really summarizing the X thread ? Not really. Because Vector Search will enrich context with closest documents and not the full thread. So there is a bit of data engineering to do. Let's talk about this in the next part!

0
Subscribe to my newsletter

Read articles from Laurent Doguin directly inside your inbox. Subscribe to the newsletter, and don't miss out.

AIllmTwitterXstreamlitopenaicouchbasechatbot

Written by

Laurent Doguin
Laurent Doguin
