How to Create a VPN Gateway in Microsoft Azure: A Step-by-Step Guide

Are you curious about secure connections in today's digital world? A VPN (Virtual Private Network) is essential for secure communication, especially in cloud computing.

In this article, I will guide you through the process of creating a VPN Gateway in Microsoft Azure. By the end, you will understand its benefits and be able to set one up yourself.

What is a VPN Gateway?

A VPN Gateway in Azure is a service that establishes secure connections between on-premises networks and Azure. It ensures that data travels securely across the internet, protecting it from unauthorized access.

Why Use a VPN Gateway?

• Enhanced Security

  • A VPN Gateway encrypts connections, ensuring data security.

  • It protects data from unauthorized access during transmission.

• Remote Access

  • Allows users to connect securely from different locations.

  • Facilitates remote work by providing secure access to network resources.

• Hybrid Cloud Connectivity

  • Supports businesses using both on-premises and cloud resources.

  • Ensures seamless integration between local and cloud environments.

• Simplified Network Management

  • Provides a unified method to connect various network segments.

  • Reduces complexity and potential points of failure.

• High Availability and Reliability

  • Azure offers redundant gateways and multiple paths.

  • Ensures stable and reliable connections, minimizing downtime.

• Regulatory Compliance

  • Helps meet data protection and privacy requirements.

  • Ensures encrypted and secure data transmission.

Benefits of Using VPN Gateways in Azure

Enhanced Security

VPN Gateways encrypt your data, ensuring it stays secure. This encryption complies with industry standards, providing peace of mind.

Scalability and Flexibility

VPN Gateways can scale according to your business needs. Whether you need to connect multiple networks or handle increasing traffic, VPN Gateways offer the flexibility to do so.

Cost-Effectiveness

Using a VPN Gateway is cost-effective compared to traditional methods. It reduces the need for expensive hardware and maintenance, allowing you to focus on your core business activities.

Steps to Create a VPN Gateway in Azure

Step 1: Setting Up Your Azure Account

• Create an Azure account

  • Visit the Azure portal.

  • Sign up using your email address.

  • Provide payment details (Azure offers a free tier for beginners).

Step 2: Creating a Virtual Network

• Let’s create a resource.

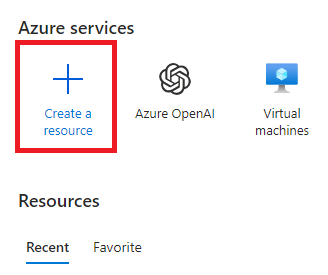

• Go to 'Create a resource'

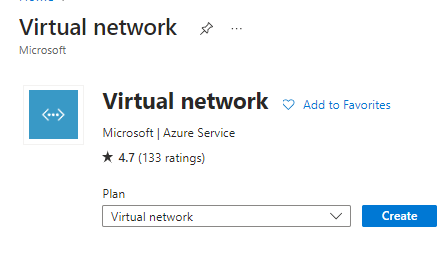

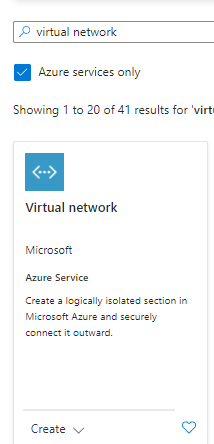

• Select 'Virtual Network'.

• Click create.

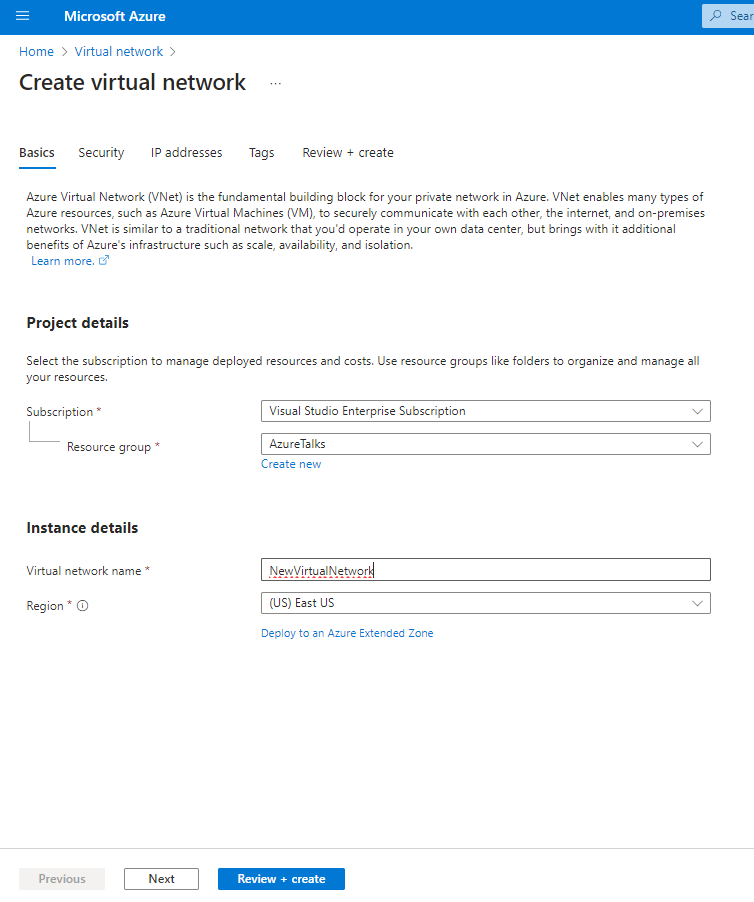

• Enter the required information:

  • Name: Choose a unique name for your Virtual Network.

  • Address Space: Define the IP address range (e.g., 10.0.0.0/16).

  • Resource Group: Select an existing group or create a new one.

• Configure subnets as needed.

Step 3: Adding a Gateway Subnet

• Select your Virtual Network

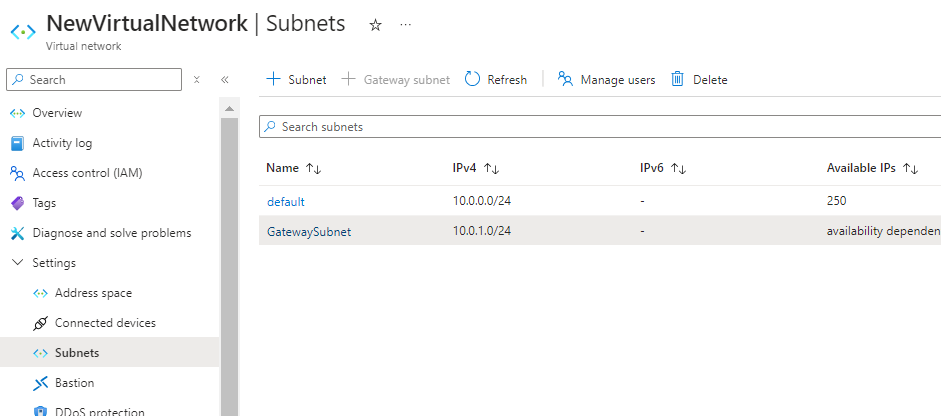

  • Go to 'Subnets'.

  • Click on 'Gateway Subnet'.

  • Assign an address range:

    • Ensure it is within the Virtual Network's address space.

    • Example: 10.0.1.0/24.



Step 4: Creating the VPN Gateway

• Go to 'Create a resource'

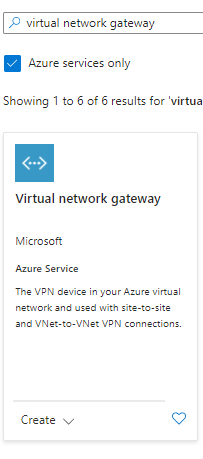

  • Search for 'Virtual Network Gateway'.

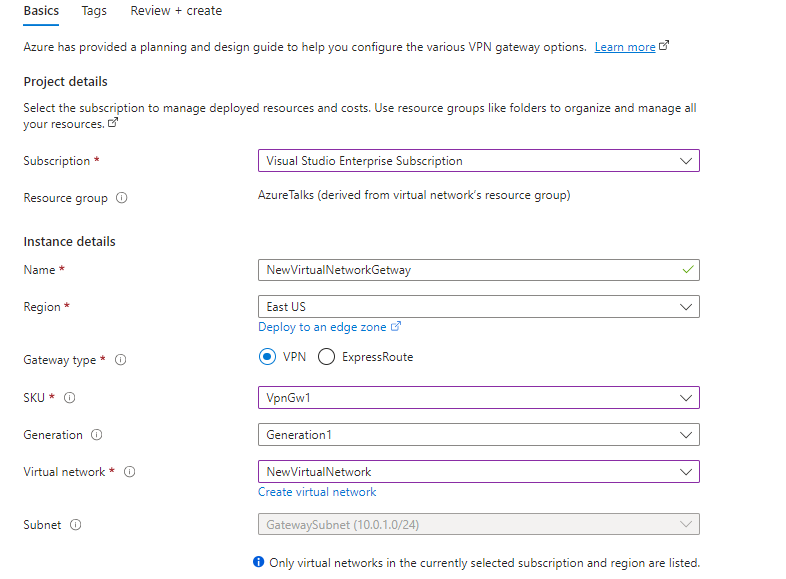

• Enter the following details:

  • Name: Unique name for the VPN Gateway.

  • Region: Select the same region as your Virtual Network.

  • Gateway Type: Choose 'VPN'.

  • VPN Type: Select 'Route-based' or 'Policy-based' depending on your needs.

  • SKU: Select the appropriate SKU (e.g., VpnGw1, VpnGw2).

  • Virtual Network: Select the Virtual Network created earlier.

  • Gateway Subnet: Confirm the subnet created in the previous step.

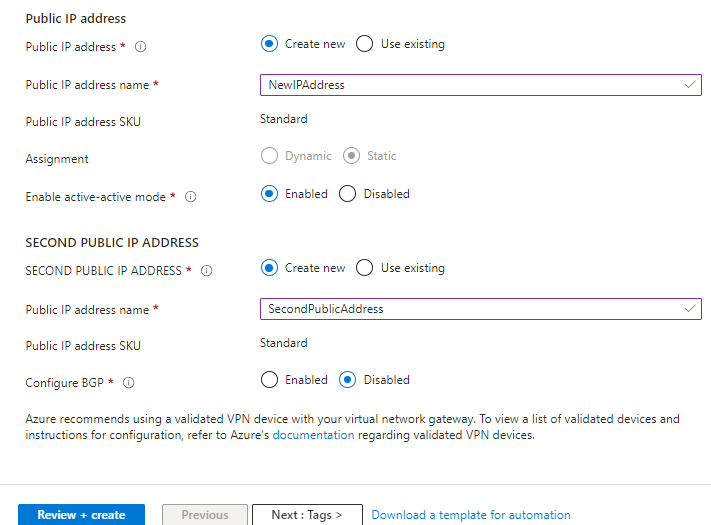

• Create a new public IP address or select an existing one. This IP address will be assigned to the VPN Gateway.

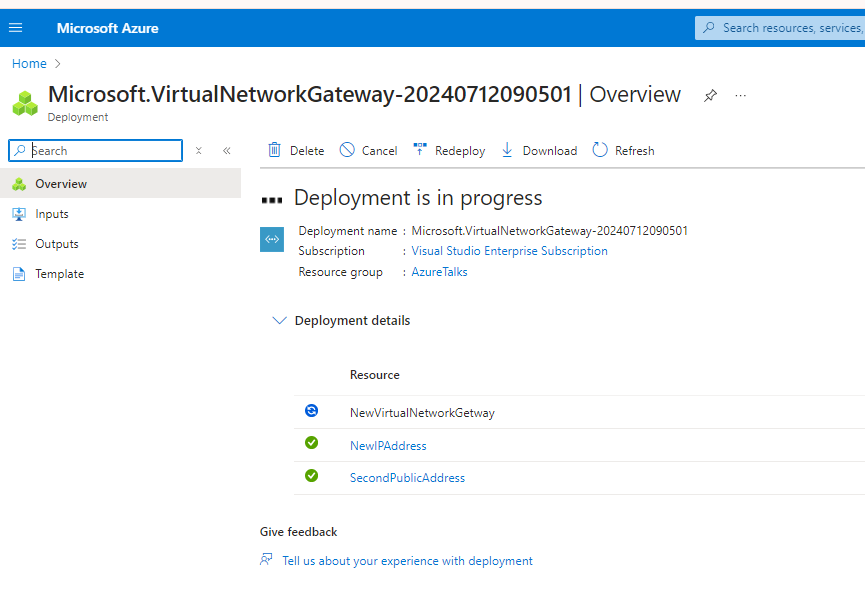

• Ensure all the details are correct and then click 'Create' to deploy the VPN Gateway.

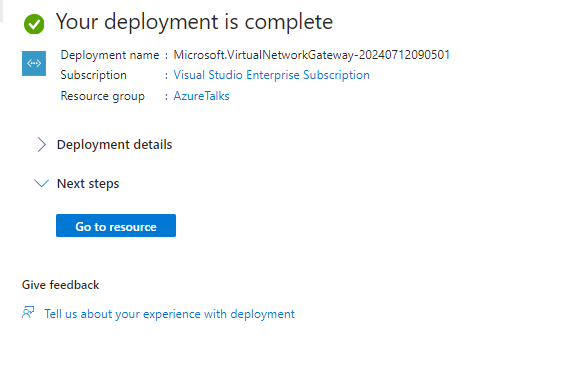

This process can take around 20-30 minutes to complete.

Step 5: Configuring the VPN Connection

• Set up the on-premises network

  • Define the on-premises VPN device IP address.

  • Configure the device to connect to Azure.

• Create a connection in Azure

  • In the Azure portal, navigate to the 'Virtual Network Gateway' resource that you created in Step 4.

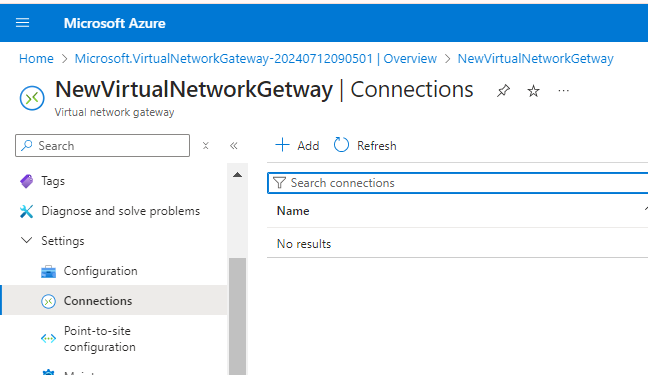

  • Select 'Connections'.

  • Click 'Add' to create a new connection.

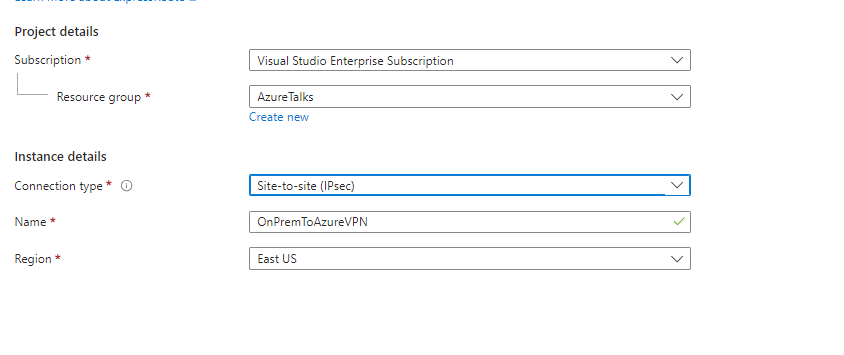

• Enter the connection details:

  • Name: Unique name for the connection.

  • Connection Type: Choose 'Site-to-site (IPsec)'.

• Shared Key: Enter a shared key (must match the key on the on-premises device).

• Local Network Gateway: Select or create a Local Network Gateway with the on-premises network information.

• Finalize the setup

  • Review the settings.

  • Click 'OK' to create the connection.

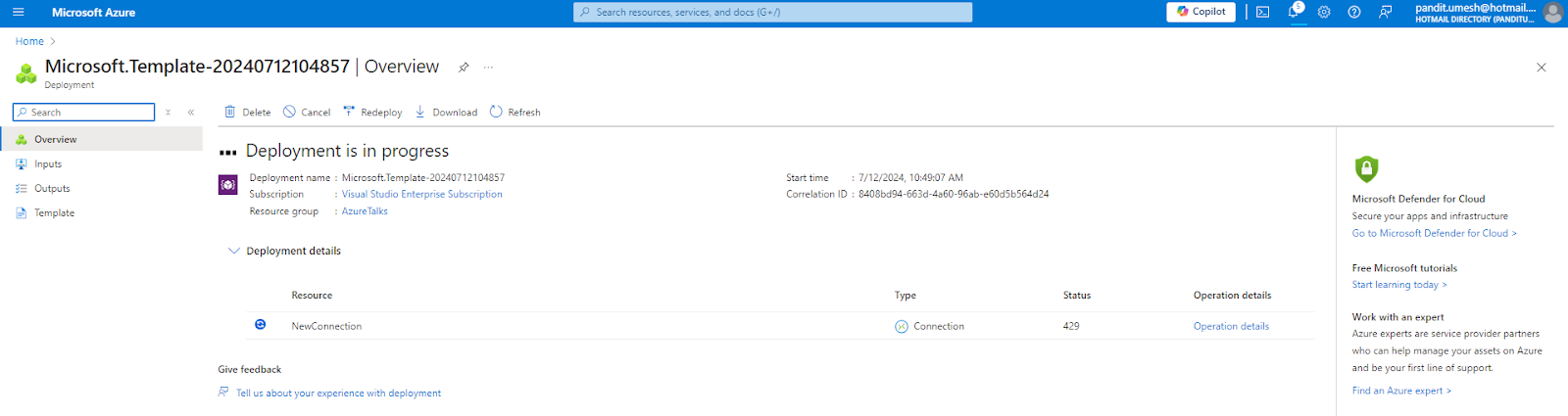

  • Monitor the connection status to ensure it is established. The deployment process may take 20-30 minutes, so be patient.

Practical Tips for Success

Regular Monitoring

Regularly monitor your VPN Gateway for any issues. Use Azure's monitoring tools to track performance and detect problems early.

Documentation and Backup

Maintain detailed documentation of your setup process. This documentation helps in troubleshooting and future configurations. Also, ensure you have regular backups to protect your data and configurations.

Personal Insights

In this article, we explored the importance of VPN Gateways in Azure. We discussed their benefits and walked through the steps to create one. Setting up a VPN Gateway might seem challenging at first, but with careful attention to each step, it becomes manageable. Personally, I find the security and flexibility it offers to be incredibly valuable.
