When it comes to your HTTP and HTTPS-based application infrastructure, the load balancer is one of the significant components.

The Application Load Balancer, launched in 2016, supports content-based routing, works well for serverless and container-based applications, and is highly scalable.

Pre-Requisites:

1. VPC

2. IGW

3. Subnets

4. Route Table

5. Target groups

6. Load Balancer

7. Ec2 servers

Plan details:

Based on the Architecture below,

ALB: 10.10.0.0/16
ELB-PUB-A: 10.10.0.0/24
ELB-PUB-B: 10.10.1.0/24

IGW: 0.0.0.0/0

EC2-PUB-A: 10.10.11.0/24
EC2-PUB-B: 10.10.12.0/24

#!/bin/bash
yum install httpd -y
service httpd start
chkconfig httpd on
mkdir /var/www/html/app1
echo "<h1> Hi Guys..! Welcome to app1 Server</h1>" > /var/www/html/app1/index.html
echo "configured successfully"

#!/bin/bash
yum install httpd -y
service httpd start
chkconfig httpd on
mkdir /var/www/html/app2
echo "<h1> welcome to Cloud World! app2 is working.! </h1>" > /var/www/html/app2/index.html
echo "configured successfully"

Steps:

Create a VPC, 2 public subnets for the ELB, and 2 public subnets for EC2.

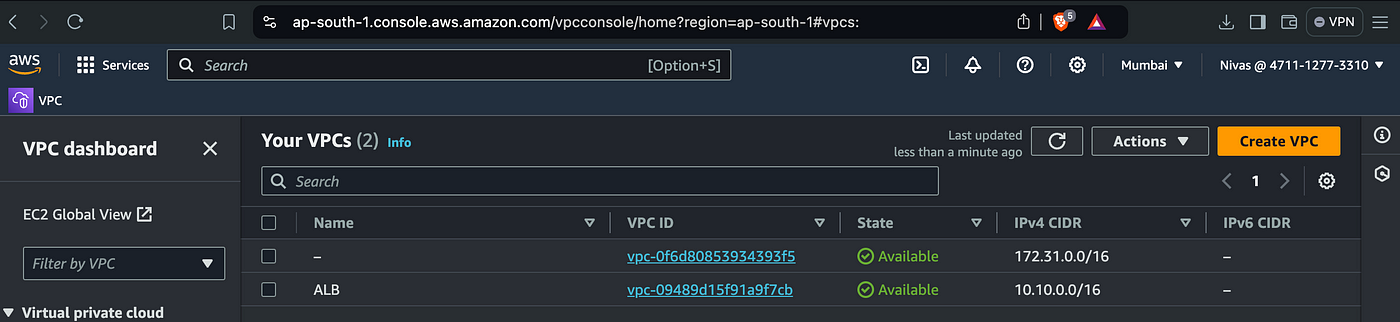

VPC created with name of ALB.

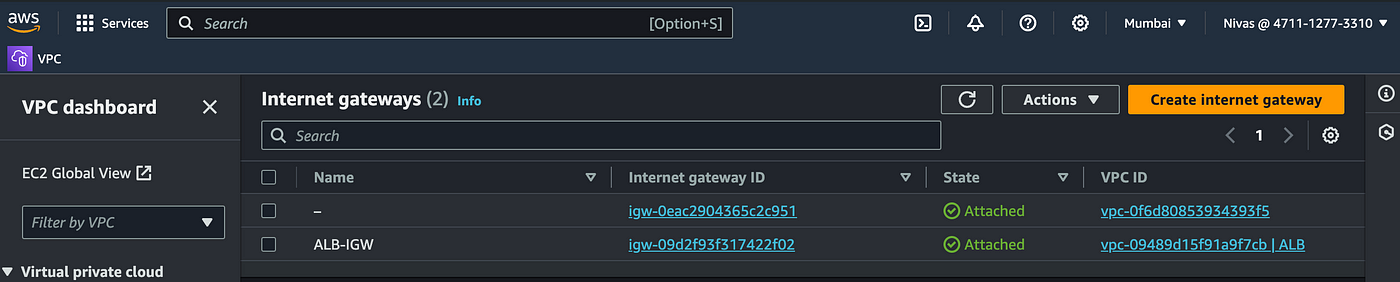

Internet Gateway is attached to VPC

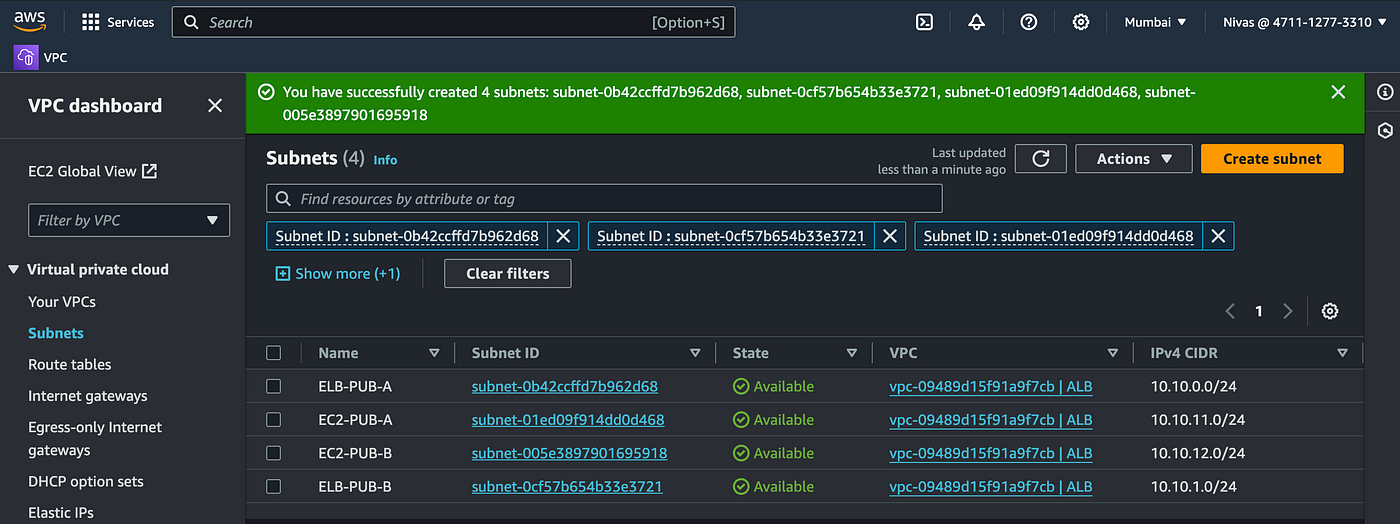

4 subnets were created.

2 Route table added for 4 Subnets.

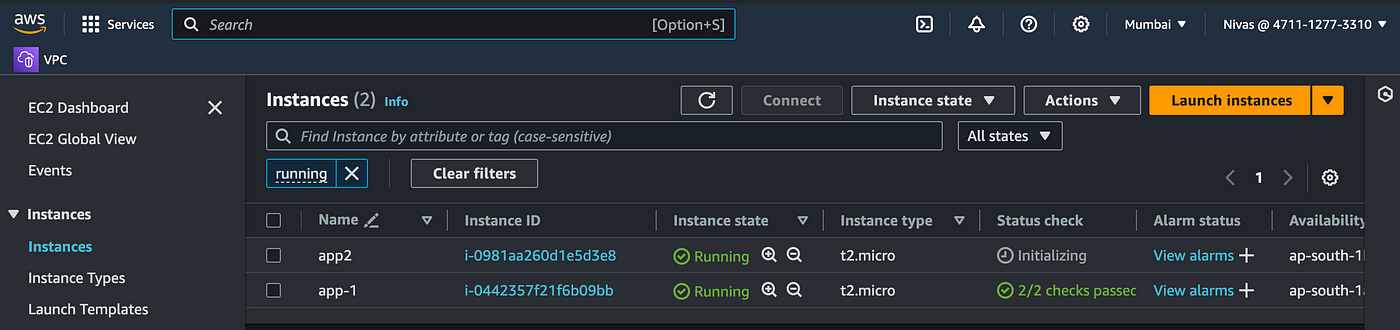

App1 & App2 — Ec2 servers created. attached with user data.

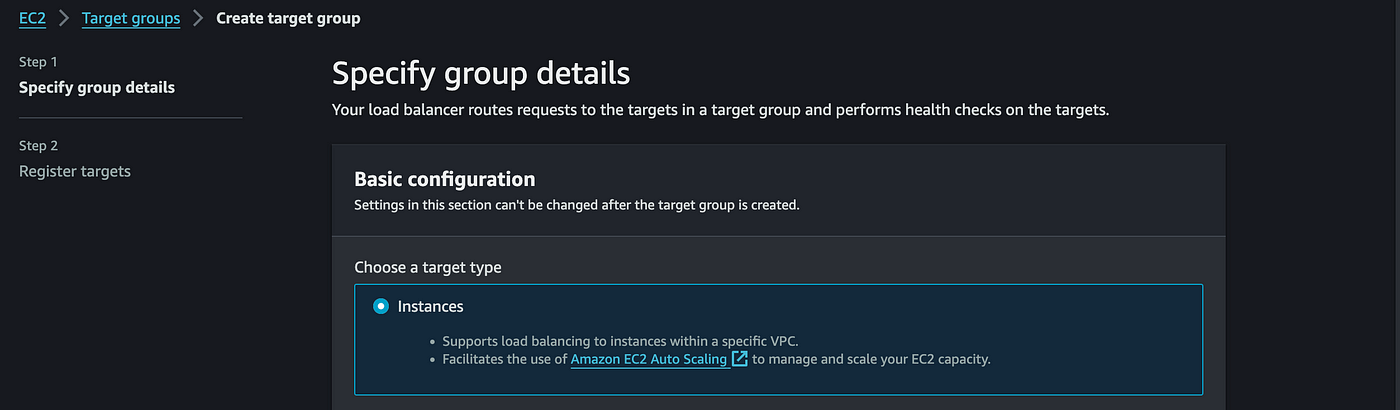

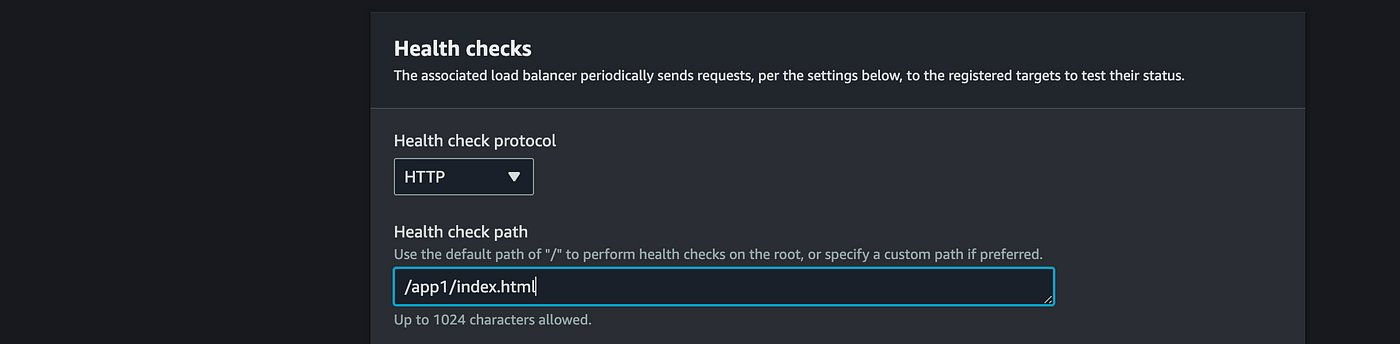

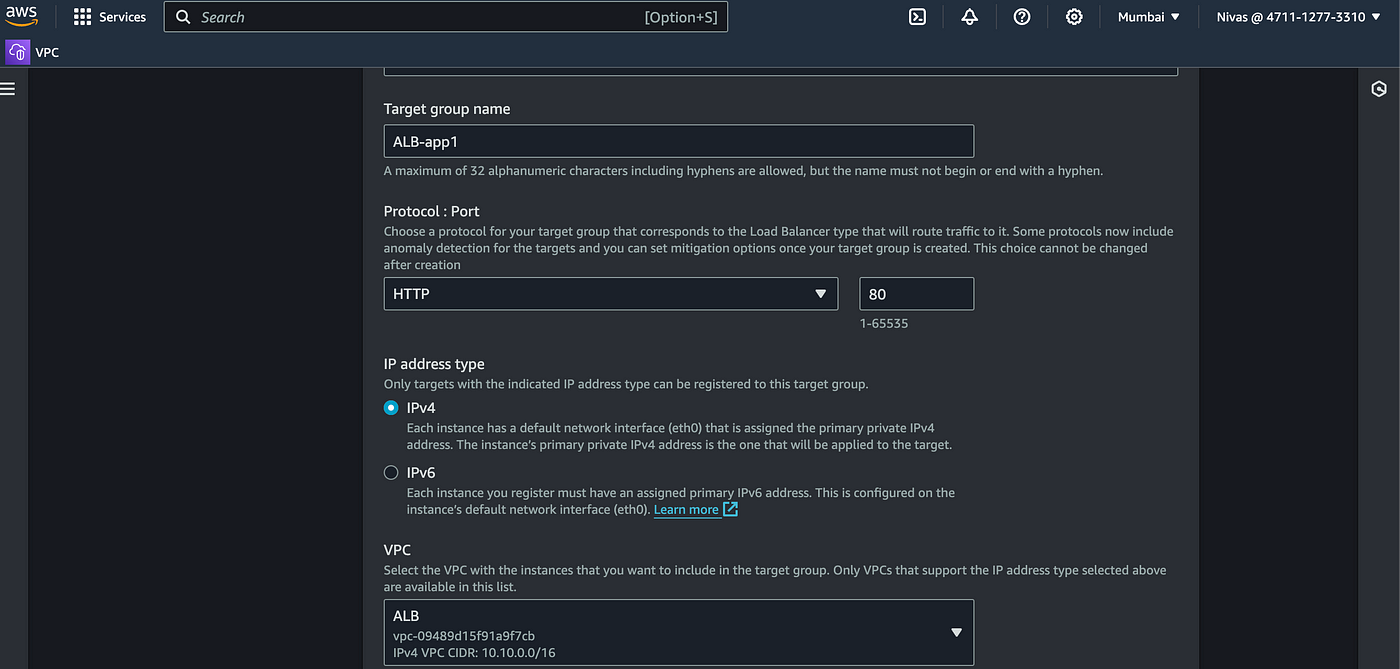

Create 2 Target Group for 2 servers

Here is the place to attach your file path

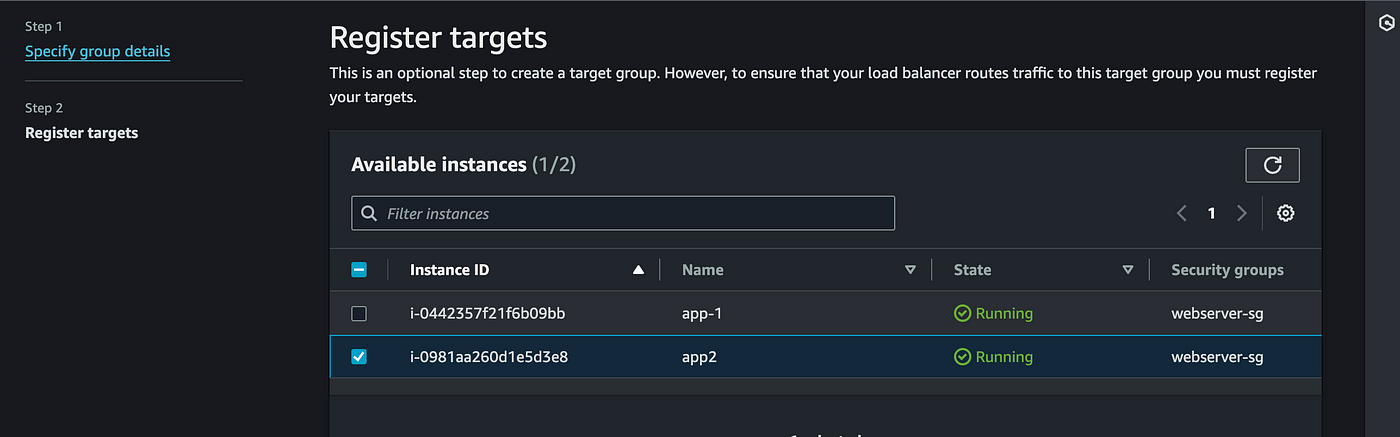

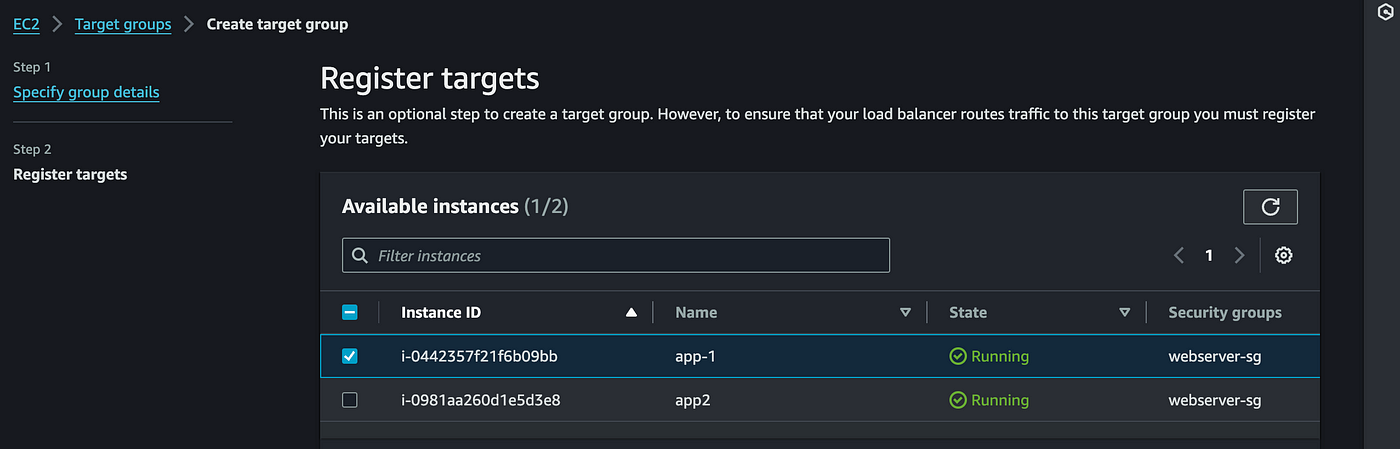

Add app1 server to the Target group

Repeat the steps above: create a target group for app2 and attach the app2 server.

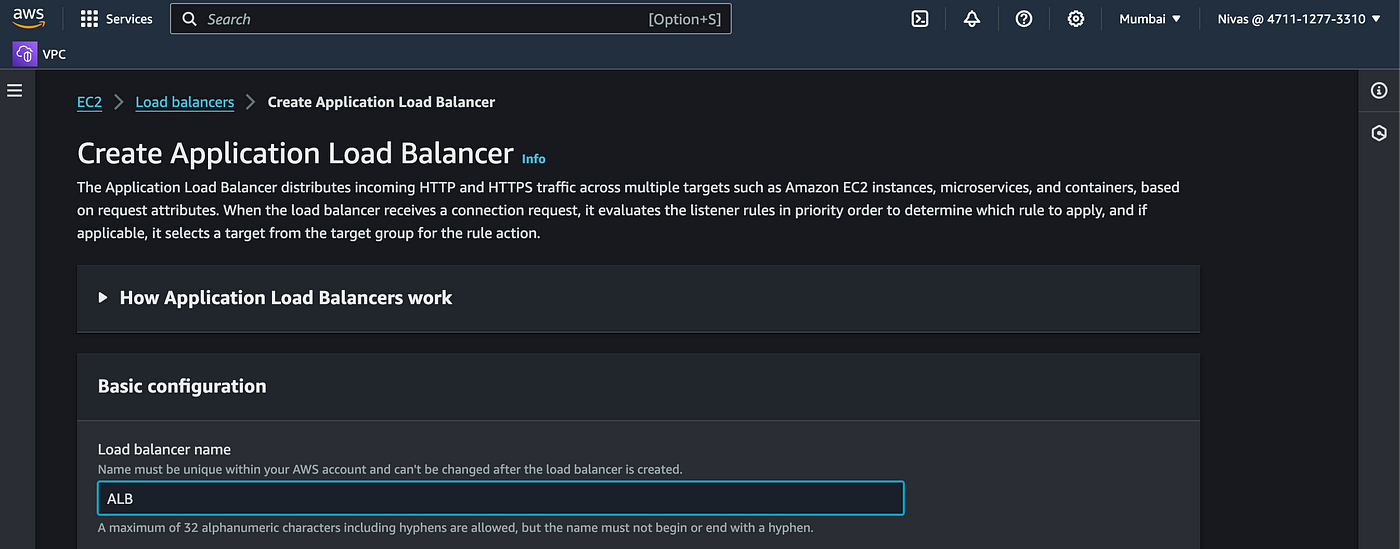

Create an Application Load Balancer

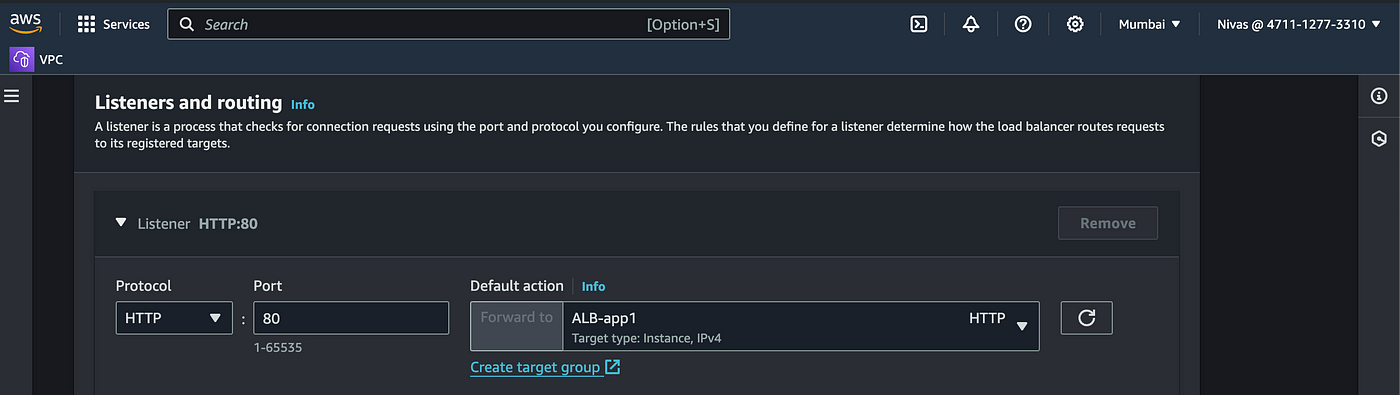

Attach your TG with LB

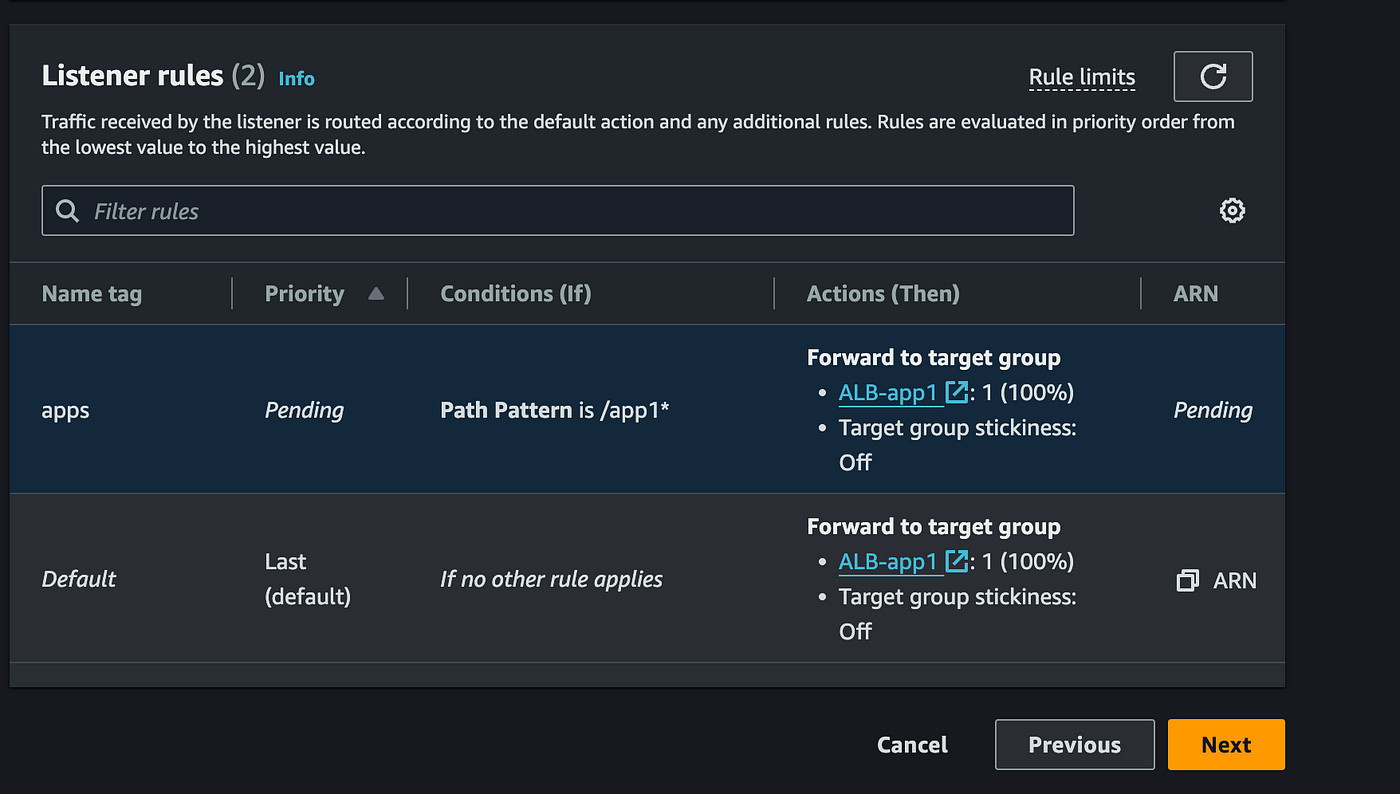

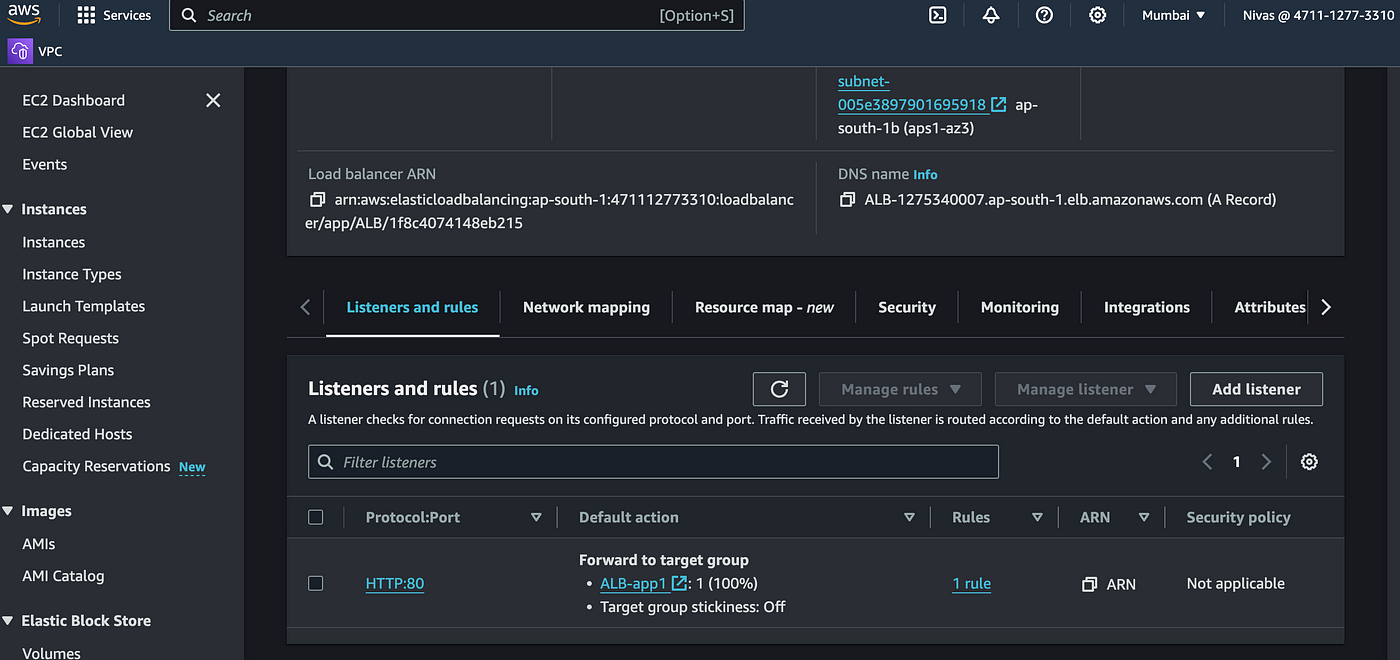

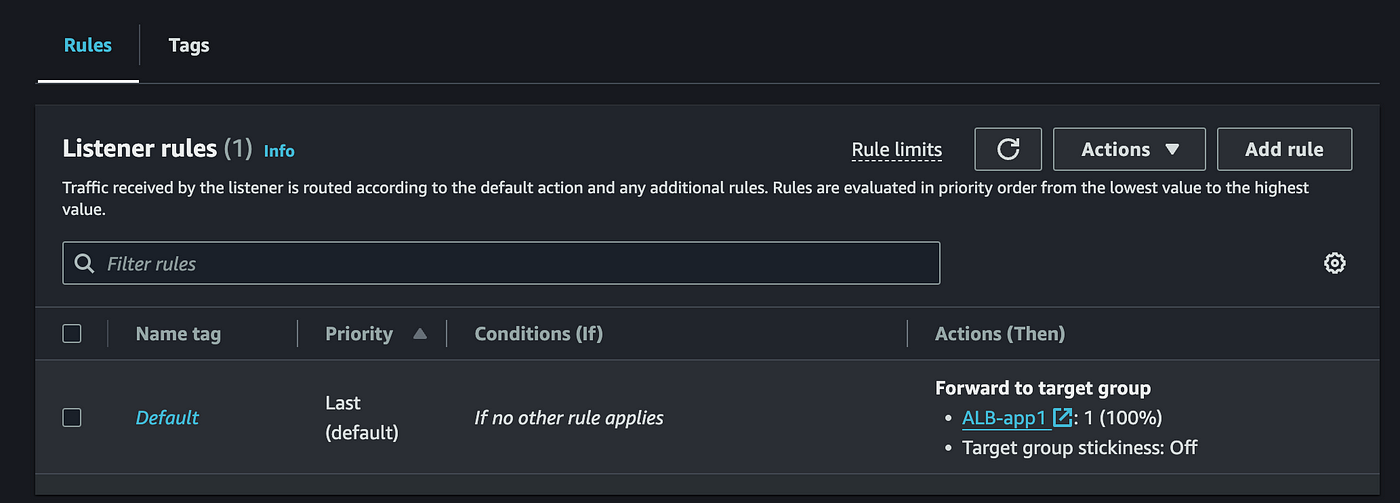

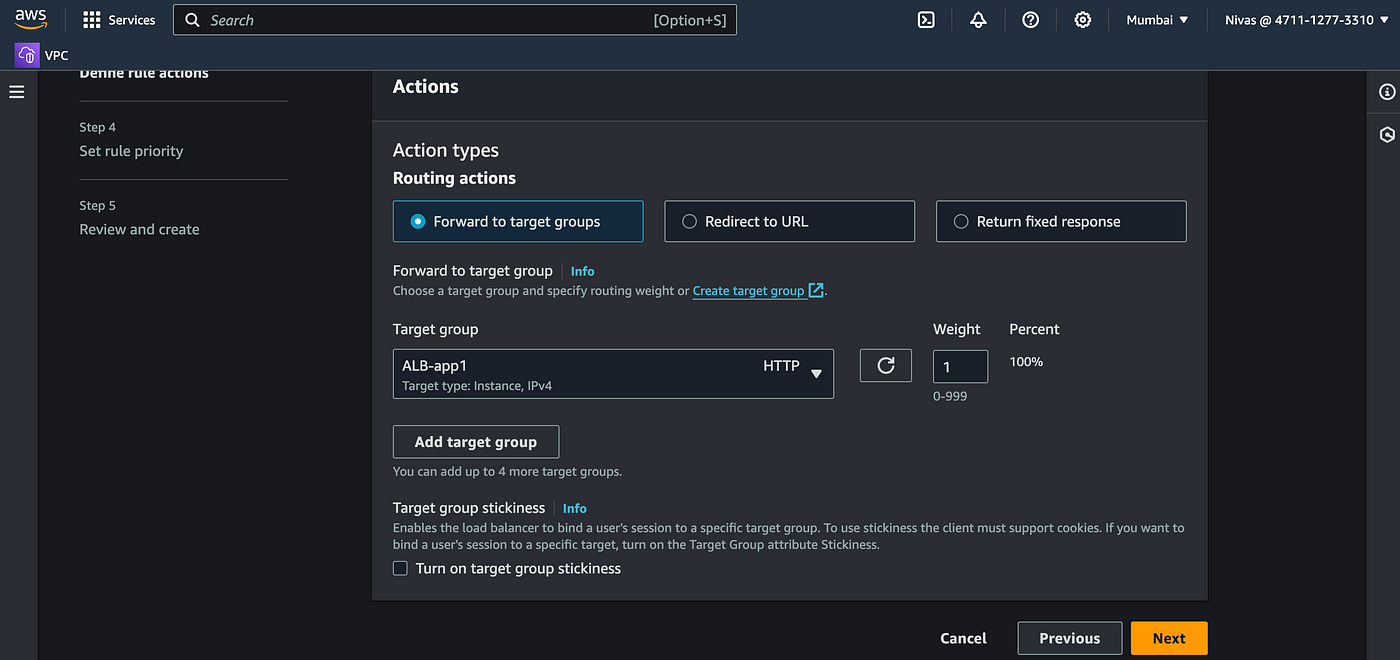

TG added a listener rule to forward traffic.

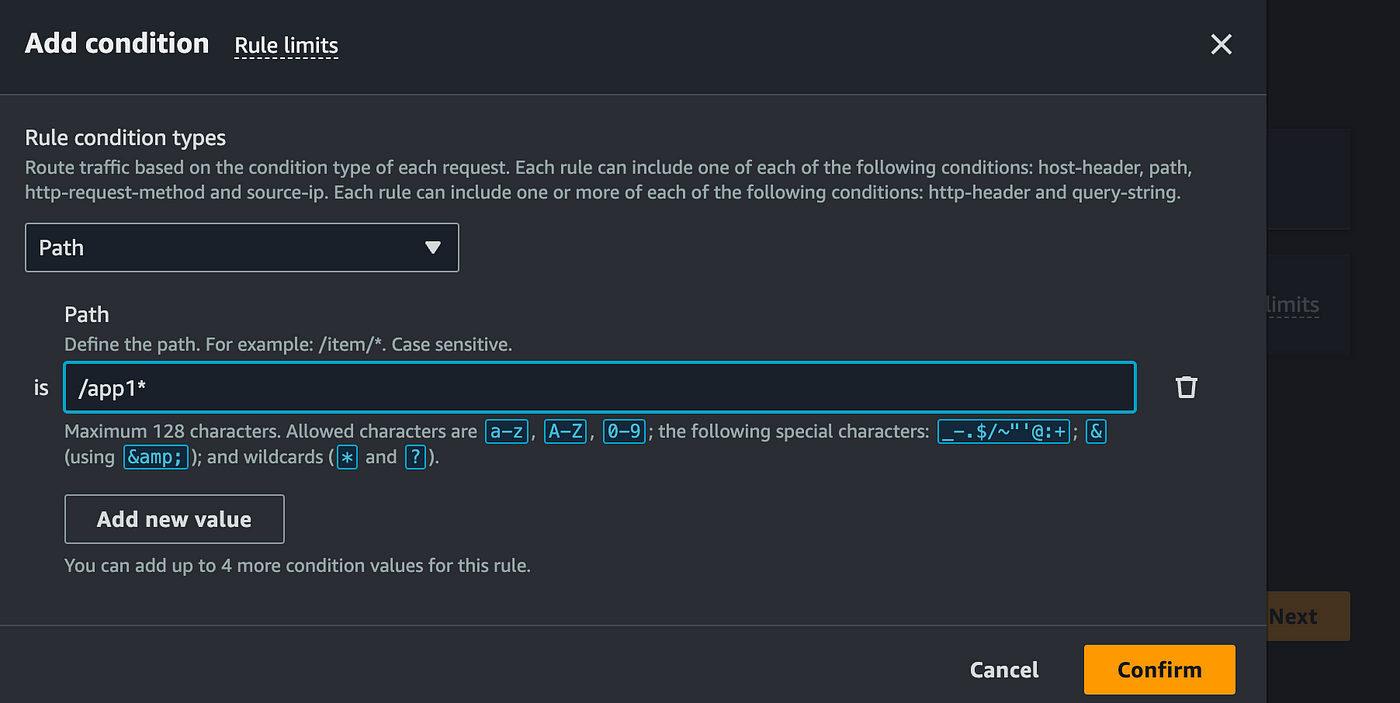

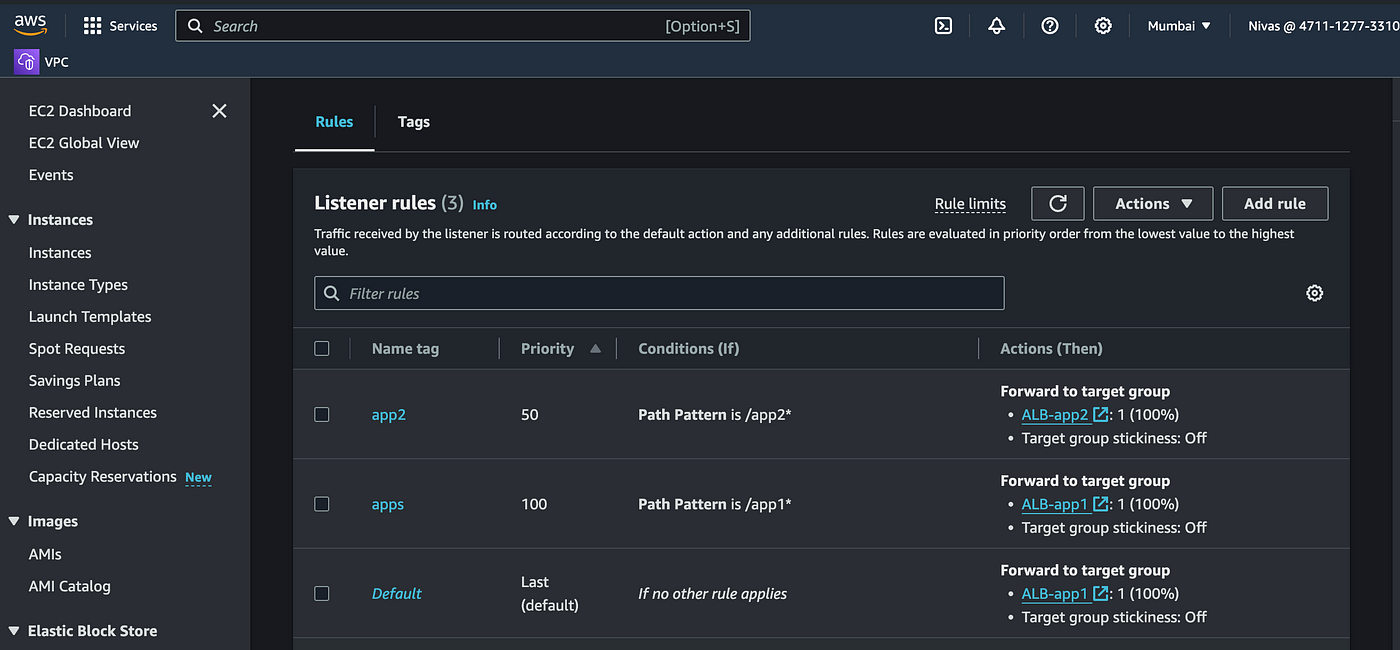

Apply path-based routing here.

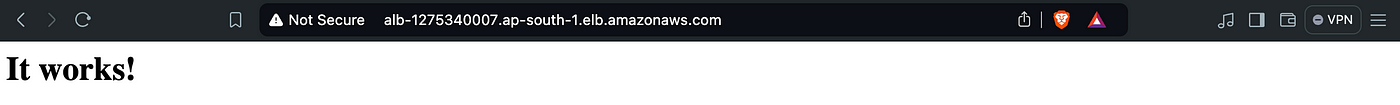

Add both target groups and set up path-based traffic forwarding. Once everything is ready, copy the Load Balancer URL and paste it into your browser.

Outputs:

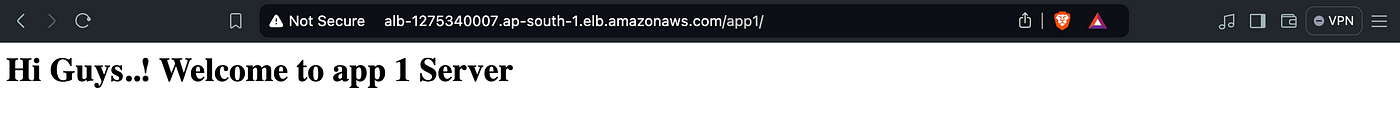

<URL>/app1

<URL>/app2
