Expand/collapse views in Flutter


Hello, sometimes in app development, we may have a requirement to hide/show views. To expand/collapse views in Flutter we can use the Expansion tile widget. It is quite easy and interesting.
So, now what is Expansion Tile? - A single line list tile with a trailing button that expands or collapses the tile to reveal or hide the children. Let’s start the coding part.
- First of all, create a new Flutter project and delete everything. Your main.dart will look like this:
import 'dart:ui';
import 'package:flutter/material.dart';void main() {
runApp(MyApp());
}class MyApp extends StatelessWidget {
// This widget is the root of your application.
@override
Widget build(BuildContext context) {
return MaterialApp(
title: 'Flutter Demo',
debugShowCheckedModeBanner: false,
theme: ThemeData(
primarySwatch: Colors.blue,
accentColor: Colors.black,
visualDensity: VisualDensity.adaptivePlatformDensity,
),
home: ExpansionTileDemo(),
);
}
}
Create a stateful widget named- ExpasionTileDemo.
Add the below code within your build method of ExpansionTileDemo class.
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
title: Text('ExpansionTile'),
),
body: Column(
children: [
Image.asset(
'assets/coffee.jpg',
height: 150,
),
Divider(
height: 1,
color: Colors.grey,
),
ExpansionTile(
backgroundColor: Colors.yellow[50],
title: Text(
'Coffee',
style: TextStyle(
color: Colors.black,
fontSize: 20,
),
textAlign: TextAlign.center,
),
children: [
Padding(
padding: const EdgeInsets.all(8.0),
child: Text(
'Coffee is a brewed drink prepared from roasted coffee beans, the seeds of berries from certain Coffee species.',
style: TextStyle(fontSize: 15),
maxLines: 3,
softWrap: true,
textAlign: TextAlign.start,
),
),
],
),
],
),
);
}
I have created ExpansionTileDemo class and within the build method return scaffold.
I have added a column and within that added Image.asset and ExpansionTile widget.
Useful properties:-
initiallyExpanded: specify whether the expansion tile will be expanded or collapsed. Default is false i.e. collapsed.
title: To give a title to your tile. This is the required attribute.
subtitle: Add additional information below the title.
expandedAlignment: To specify the alignment of the children.
trailing: Display widget after the title. By default, the rotating icon will be displayed.
leading: Display widget before the title.
children: Widget(s) to display when tile expanded.
onExpansionChanged: Define a function to perform changes when a tile expands or collapses.
backgroundColor: Display background color behind the sublist when expanded.

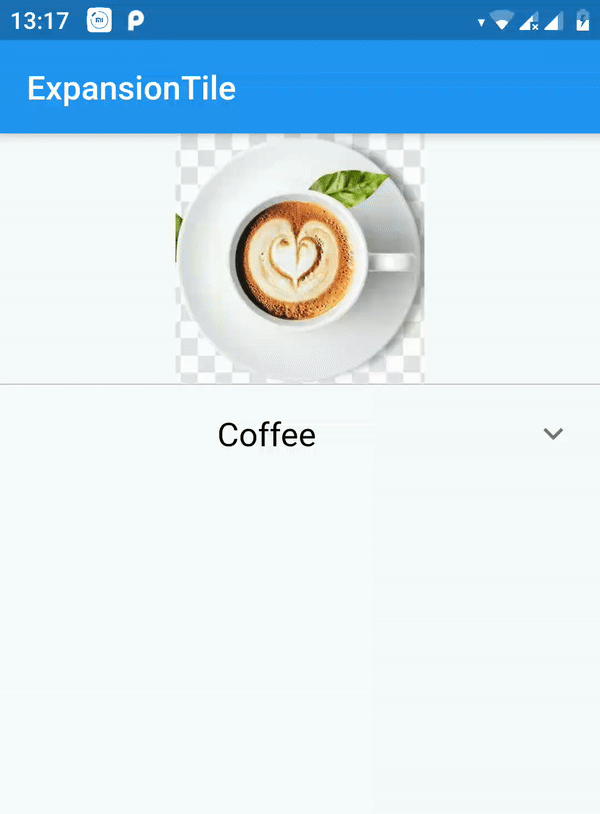

So, we are done with the coding part, and let’s run the application to see the output.
By default, keyboard_arrow_down will be displayed as a trailing icon. But we can change the leading and trailing icon as per our requirement.
yay!! It is done.
