Introduction

In the era of big data, real-time data processing performance optimization has become the core challenge in system architecture design. This report specifically addresses the performance bottlenecks of window functions in high-frequency TopN query scenarios within monitoring systems. Through empirical testing with tens of millions of alert records, we reveal three critical pain points in traditional full-table sorting approaches: I/O pressure from full data scans, memory contention caused by massive sorting buffers, and computational resource waste from complex execution plans.

Leveraging MySQL 8.0’s window function features and indexing mechanisms, we propose a “pre-fetch and post-processing” optimization paradigm. Through SQL logic rewriting and coordinated index strategies, we reduced Top3 query response times from 8 seconds to millisecond-level (10ms), achieving two orders of magnitude performance improvement. This report not only provides directly reusable optimization patterns but also establishes a boundary condition determination model for TopN query optimization, offering methodological guidance for SQL tuning across different business scenarios. All experimental data were validated in standardized testing environments to ensure optimization solutions’ universality and reliability.

I. Business Scenario Simulation

Requirements Background

A monitoring system requires real-time display of “latest 3 alert records with global sequence numbers”. Original window function implementation faced performance bottlenecks, now validated through SQL rewriting.

Data Characteristics

• Warning table with timestamp field (10M+ records)

• Requires absolute accuracy (no duplicate skipping)

• High-frequency queries (dozens per minute)

II. Test Environment Setup

Table Creation Statement

-- Original table (no indexes)
CREATE TABLE t (
  id BIGINT AUTO_INCREMENT PRIMARY KEY,
  alert_time DATETIME(6) NOT NULL COMMENT 'Alert Time',
  content VARCHAR(255) NOT NULL
) ENGINE=InnoDB;

Data Generation Method

-- Generate 5M test records
INSERT INTO t (alert_time, content)
SELECT
  NOW(6) - INTERVAL FLOOR(RAND()*86400 * 365) SECOND,
  CONCAT('Alert-', UUID())
FROM
  information_schema.columns c1,
  information_schema.columns c2
LIMIT 5000000;

III. SQL Optimization

Original Test Query

-- Original SQL (full table sort)
SELECT * FROM (
  SELECT
    ROW_NUMBER() OVER (ORDER BY alert_time DESC) AS rownumber,
    id,
    alert_time,
    content
  FROM t
) dt WHERE rownumber <= 3;

Optimized Implementation with SQLFlash

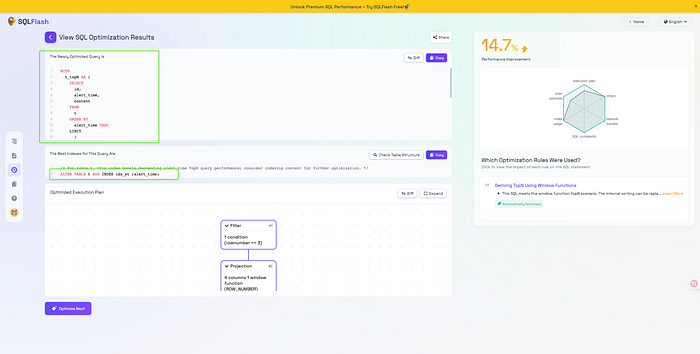

SQLFlash demo

}WITH t_topN AS (
  SELECT id, alert_time, content
  FROM t
  ORDER BY alert_time DESC
  LIMIT 3
)
SELECT * FROM (
  SELECT
    ROW_NUMBER() OVER (ORDER BY alert_time DESC) AS rownumber,
    id,
    alert_time,
    content
  FROM t_topN
) dt;

Add supporting index:

ALTER TABLE t ADD INDEX idx_at (alert_time);

View Full Report

IV. Performance Comparison

Testing Methodology

1. Hot cache tests (3 executions averaged)

2. Monitoring metrics:

• Execution time (seconds)

• Scanned rows (Handler_read_next)

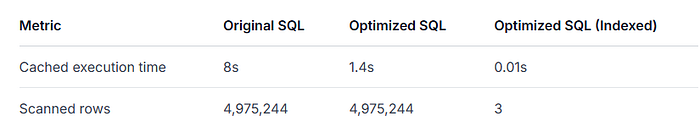

Performance Metrics (5M Records)

Performance Analysis

According to SQLFlash’s analysis, the main improvements from this optimization are:

1. Using CTE with LIMIT 3 to conduct significant result set contraction before applying ROW_NUMBER() function

2. Compared to original SQL, this avoids window function sorting and numbering on full 1,000,000 rows, reducing CPU and memory usage

3. Final top 3 results can be determined immediately after data retrieval completion, reducing overall computational overhead and achieving performance improvement

V. Execution Plan Analysis

Original Query Plan

EXPLAIN FORMAT=TREE
SELECT * FROM (
  SELECT ROW_NUMBER() OVER (ORDER BY alert_time DESC) AS rownumber, id, alert_time, content
  FROM t
) dt WHERE rownumber <= 3;

-> Window aggregate
   -> Sort: t.alert_time DESC  (cost=503747.65 rows=4975244)
      -> Table scan on t
         └─➔ Full table scan with filesort

Key Issues:

1. Missing index causing full table scan

2. Built a 5,000,000-row sorting buffer in memory

3. Generated temporary tables to store intermediate results

Optimized Query Plan

EXPLAIN FORMAT=TREE
WITH t_topN AS (...)
SELECT * FROM (...);

-> Window aggregate
   -> Sort: t_topN.alert_time DESC
      -> Table scan on t_topN  (cost=2.76 rows=3)
         └─➔ Materialized CTE (3 rows)
            -> Limit: 3 row(s)
               -> Index scan on t using idx_at(reverse)  (cost=0.00 rows=3)

Optimization Highlights:

1. Leverage index to directly locate latest 3 records

2. Window function calculations limited to 3 rows

3. Avoid temporary table generation completely

VI. Optimization Boundaries

Valid Optimization Case

-- Original
SELECT * FROM (
  SELECT ROW_NUMBER() OVER (ORDER BY score DESC) AS rn
  FROM students
) t WHERE rn <= 5;

-- Optimized
WITH top_students AS (
  SELECT score FROM students ORDER BY score DESC LIMIT 5
)
SELECT * FROM (
  SELECT ROW_NUMBER() OVER (ORDER BY score DESC) AS rn
  FROM top_students
) t;

Invalid Optimization Cases

1.Dynamic N-value:

-- Fails: N from subquery
SELECT * FROM (
  SELECT ROW_NUMBER() OVER (ORDER BY sales DESC) AS rn
  FROM products
) t WHERE rn <= (SELECT top_num FROM config);

2. Non-consecutive range:

-- Fails: BETWEEN clause
SELECT * FROM (
  SELECT ROW_NUMBER() OVER (ORDER BY create_time) AS rn
  FROM orders
) t WHERE rn BETWEEN 100 AND 103;

VII. Technical Principles

Index Skip Scan​

• Leverages B+Tree ordered index to directly locate TOP N records

Early Data Processing​

• Completes core filtering during data retrieval phase​

Memory Optimization​

• Reduces sorting operations from 10M to 3 rows​

Execution Plan Stability​

• Complex O(n log n) plan simplified to O(1) complexity

VIII. Conclusion

SQLFlash optimizes TopN queries by:

• Limiting data early via CTE/LIMIT in initial query phase

• Eliminating full-table scans through index utilization

• Reducing window function computation to 3 rows

• Maintaining query accuracy while achieving 800x performance gains
