Installing Splunk on a Host Machine and Simulating a DoS Attack Using hping3 from Kali Linux

Saurav ChapagainSaurav Chapagain
2 min read

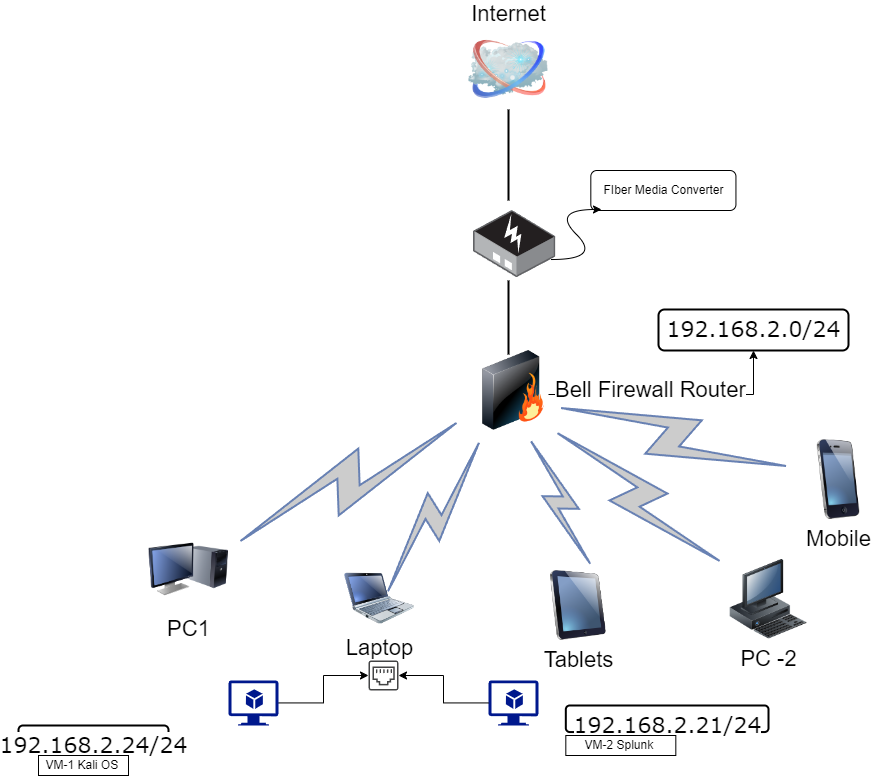

Since this is my simple home setup, I am using self-managed Splunk, and my attacker machine is Kali VM

  1. After filling in the necessary details, we will download the Splunk file for Windows

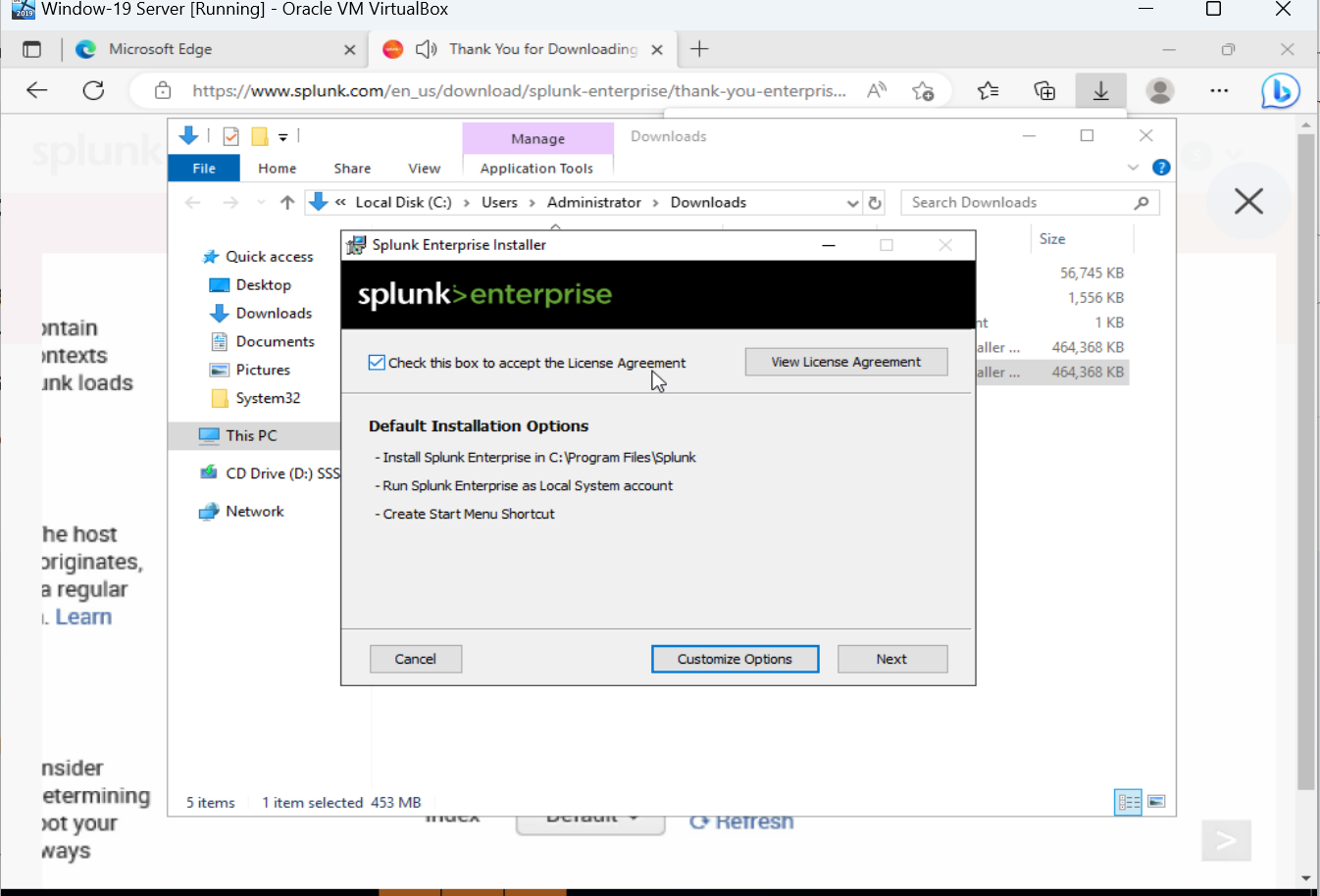

  2. The next step is to accept the license agreement and hit the Next button

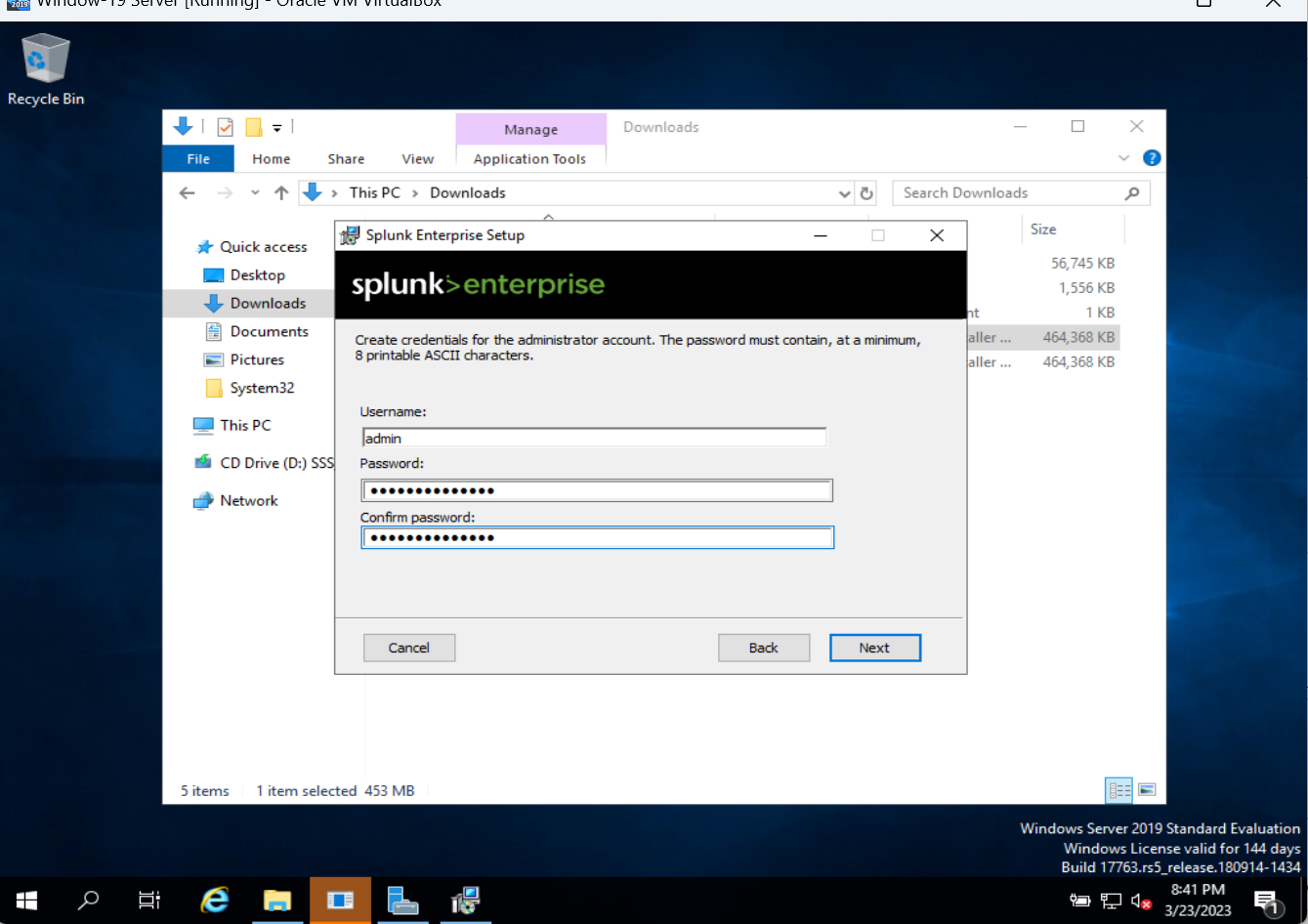

  1. In this step, we will assign a username and a password

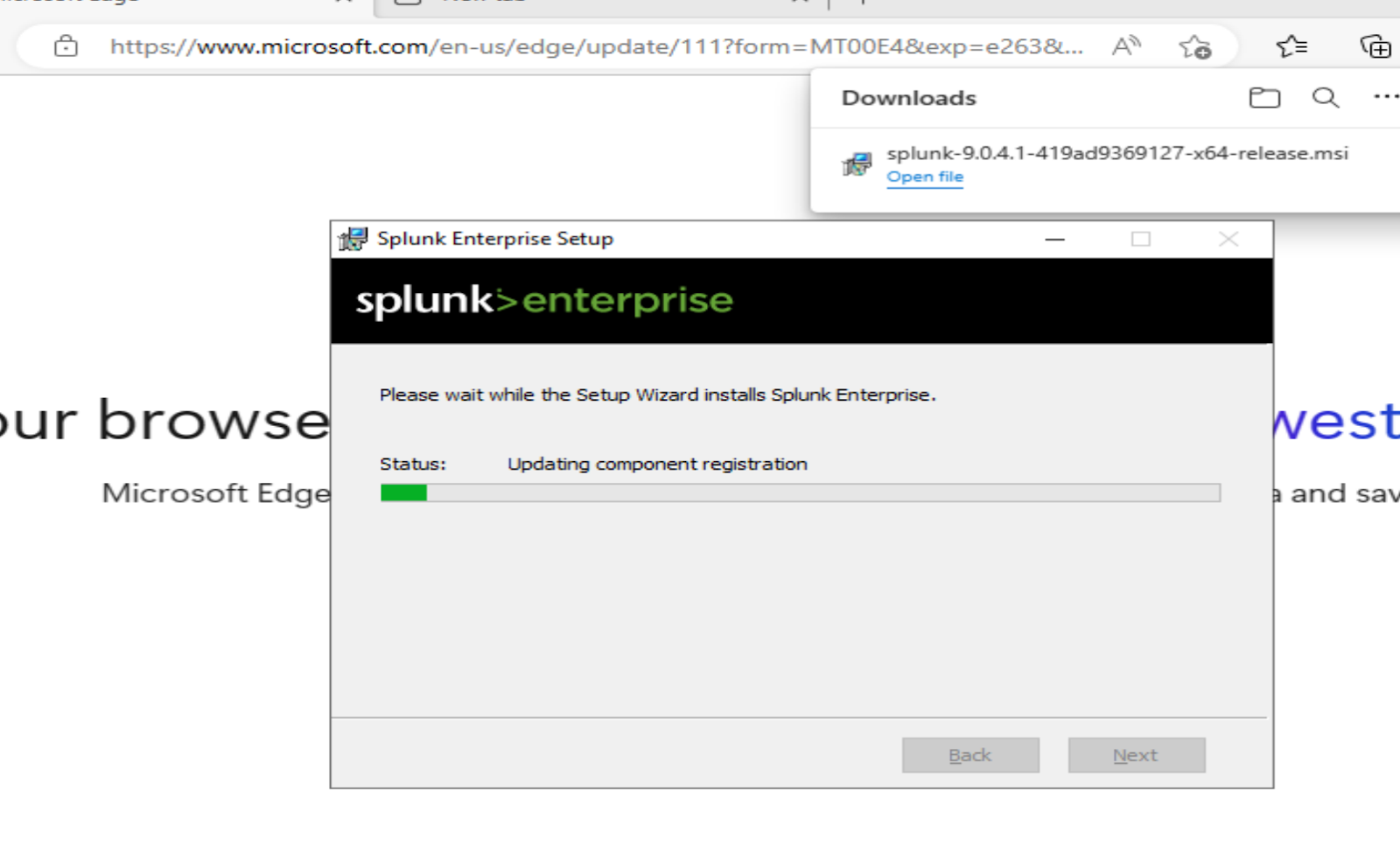

  1. After confirming the username and password, we will hit Next and move ahead with the installation procedure.

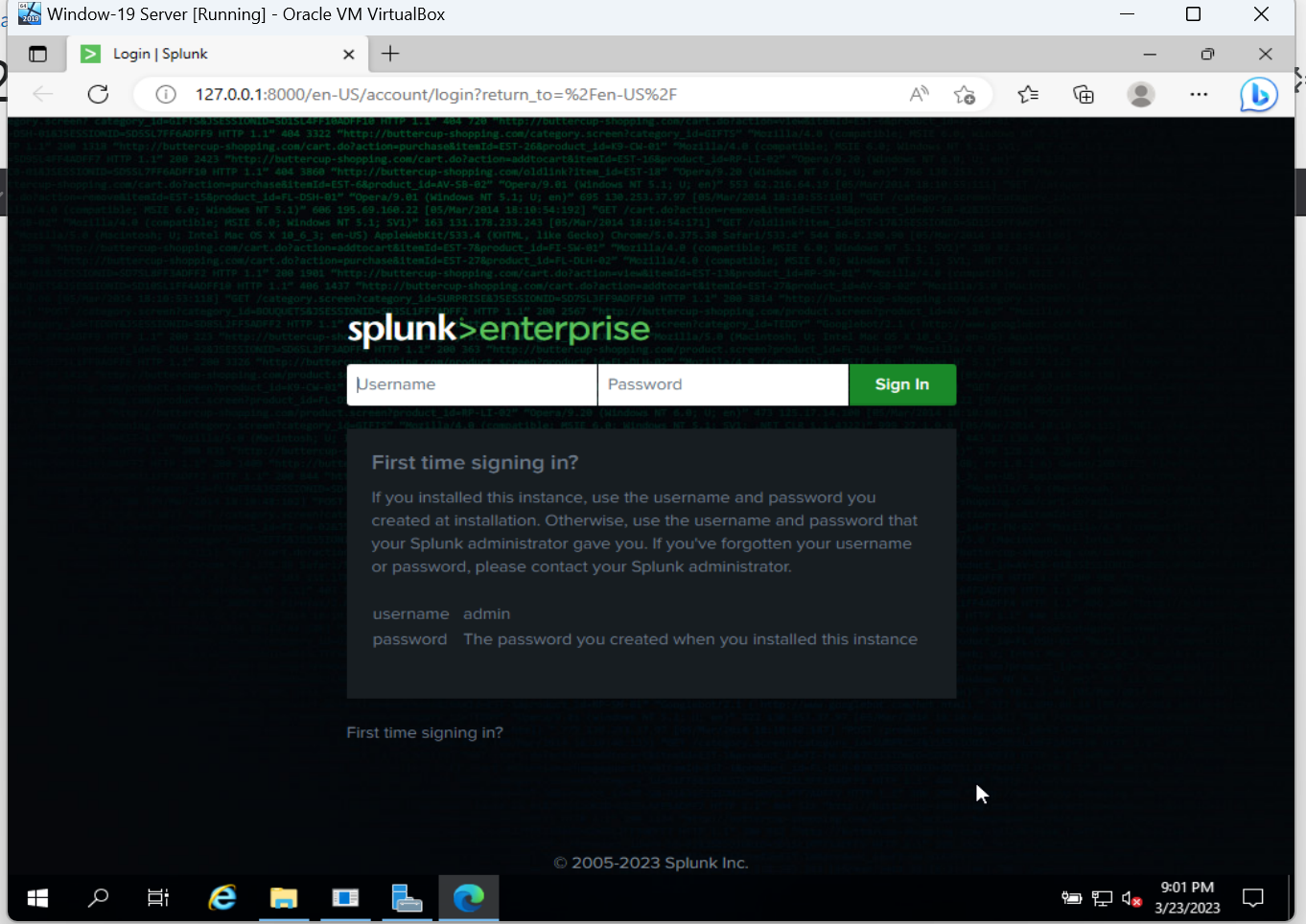

  1. After completion of the progress, it will ask you to pop up the login/configuration portal and ask you for the credentials that were supplied during the setup process

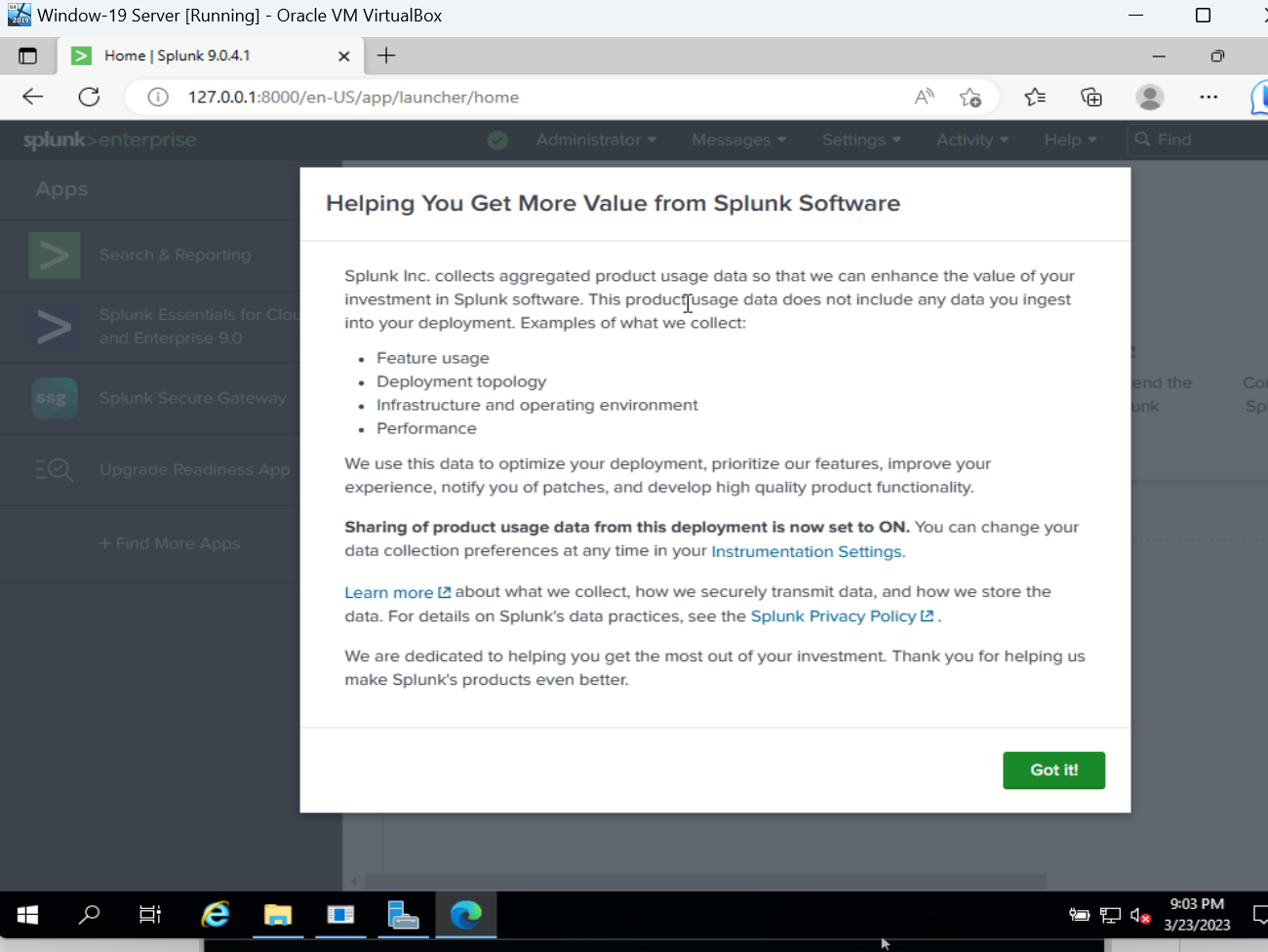

  1. After that, it will take us to the landing page, which looks as below:

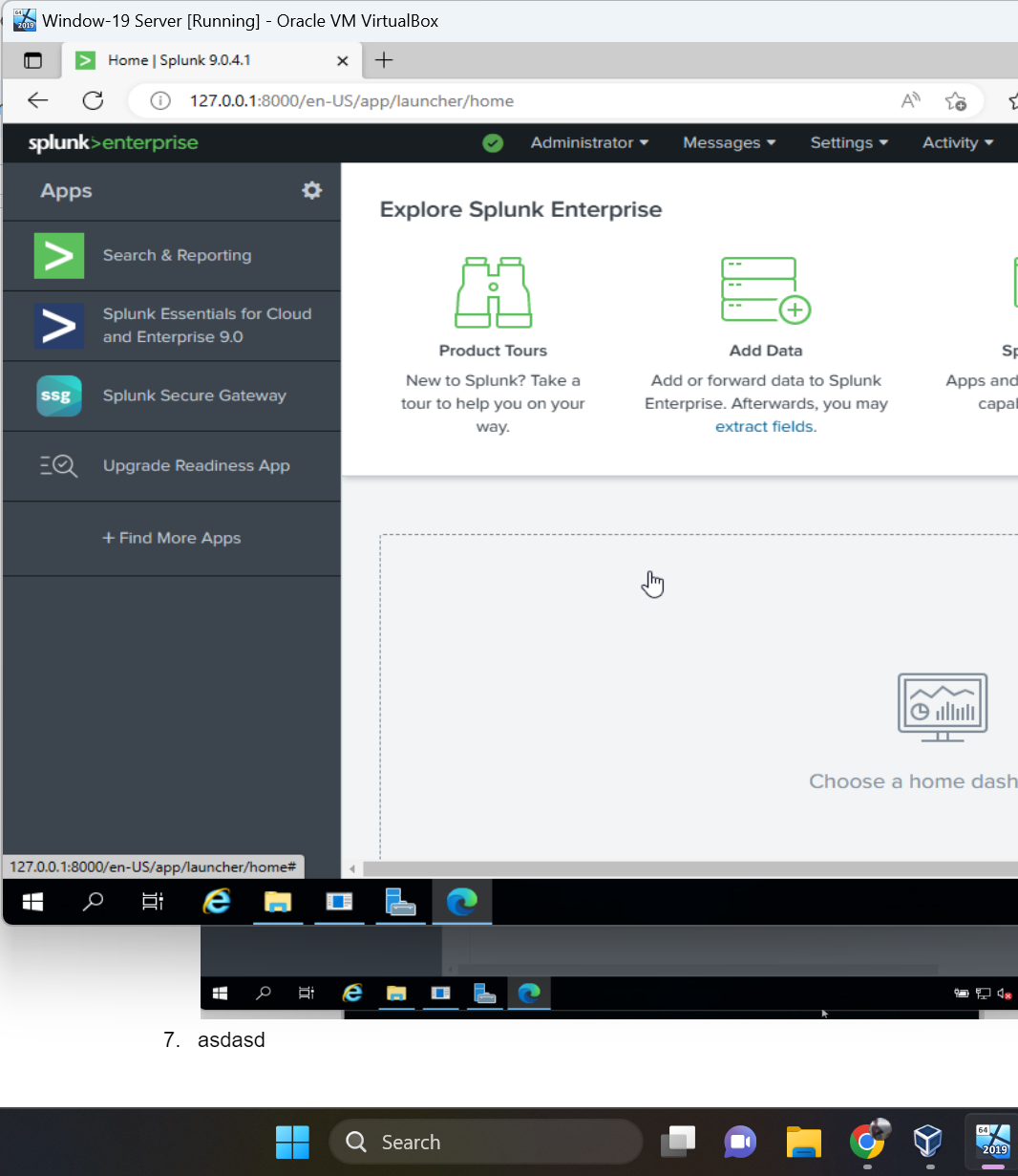

  1. The clear image of the default home page is as below:

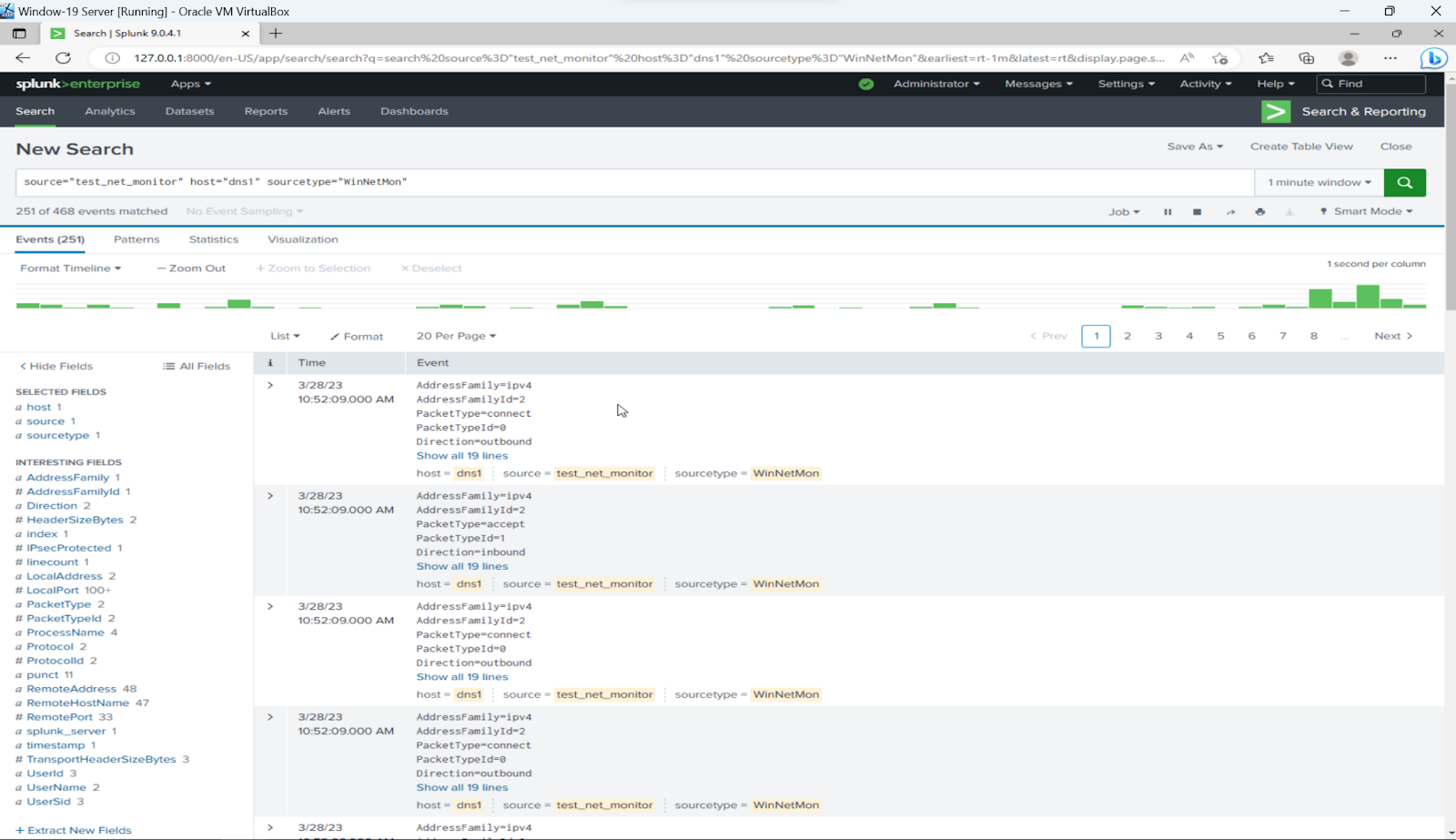

  1. Now we are analyzing the system logs generated in our Windows machine

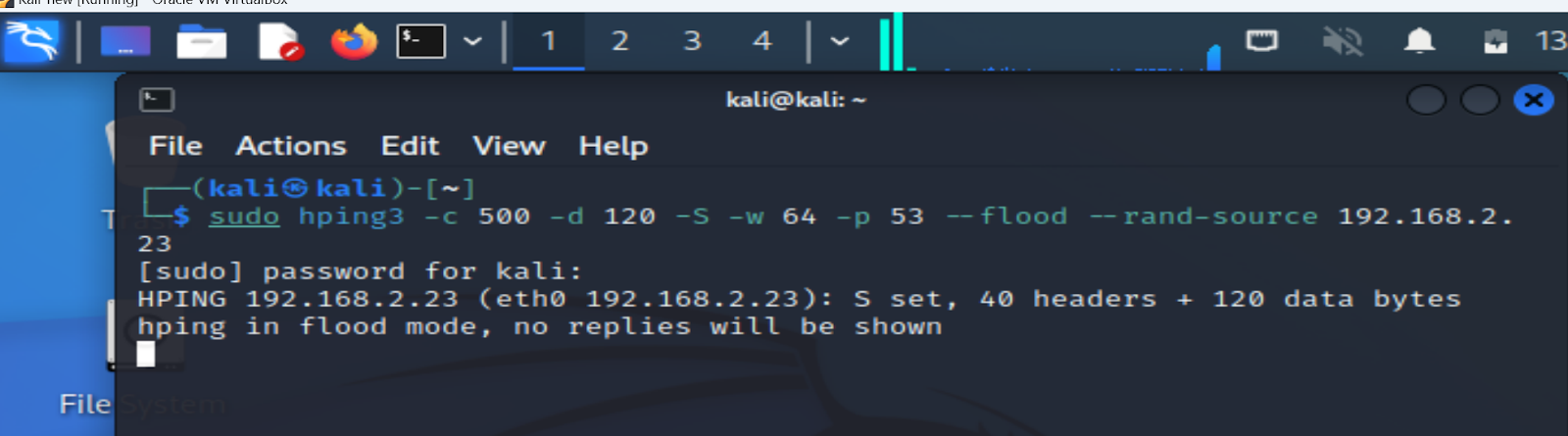

  1. We will do DOS attack in our Splunk machine using the hping3 command. The command and option used is explained here:

    1. -c : packet count

    2. -d: data size

    3. -s: SYN flag to initiate TCP session

    4. -w: winsize

    5. -p: destination port

    6. –flood: sending packets as fast as possible, wont show replies

    7. –random-source: random source address

    8. Last is the target machine’s IP

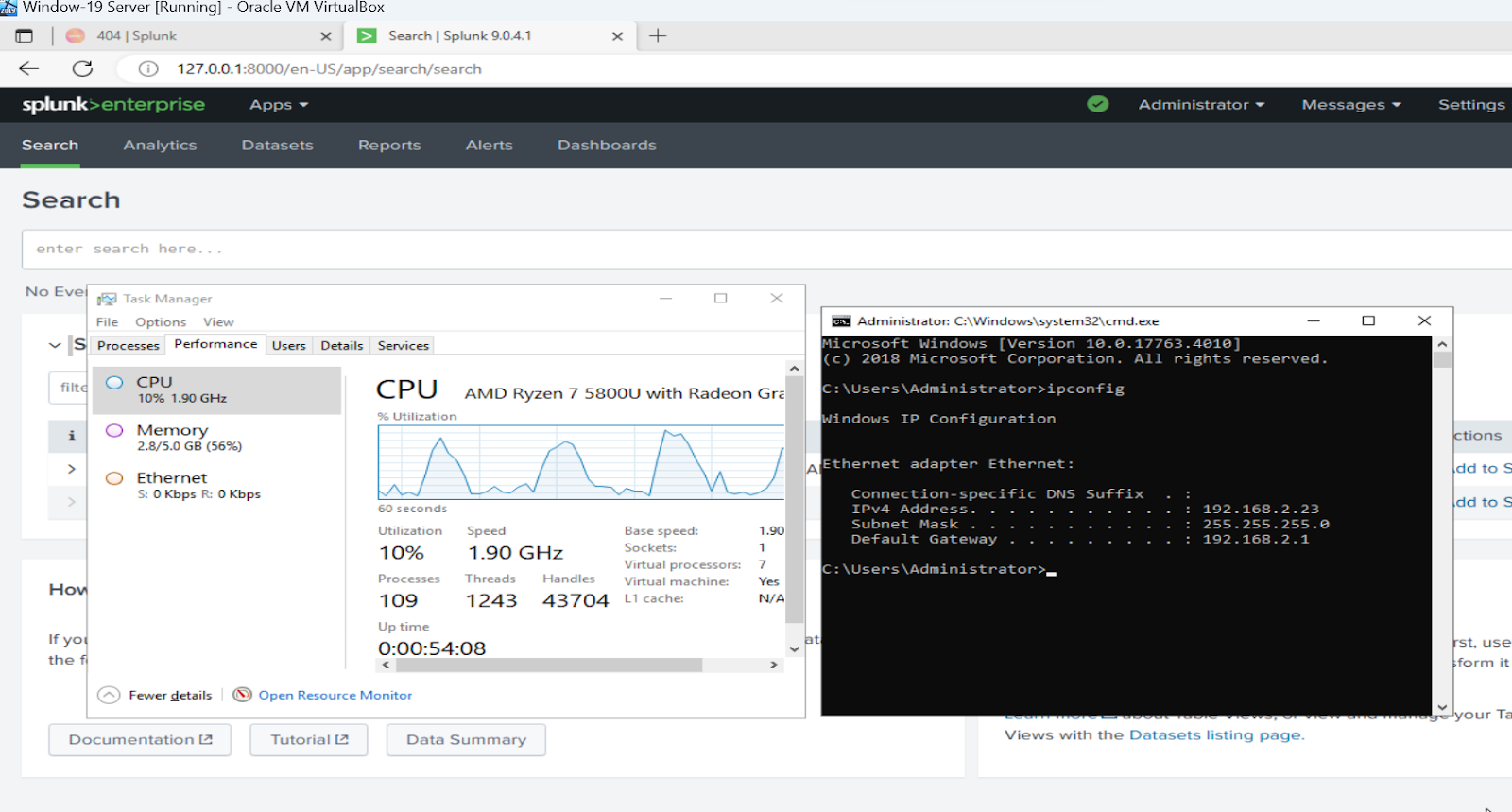

  1. We can see the CPU usage in the target machine is idle before the attack is launched.

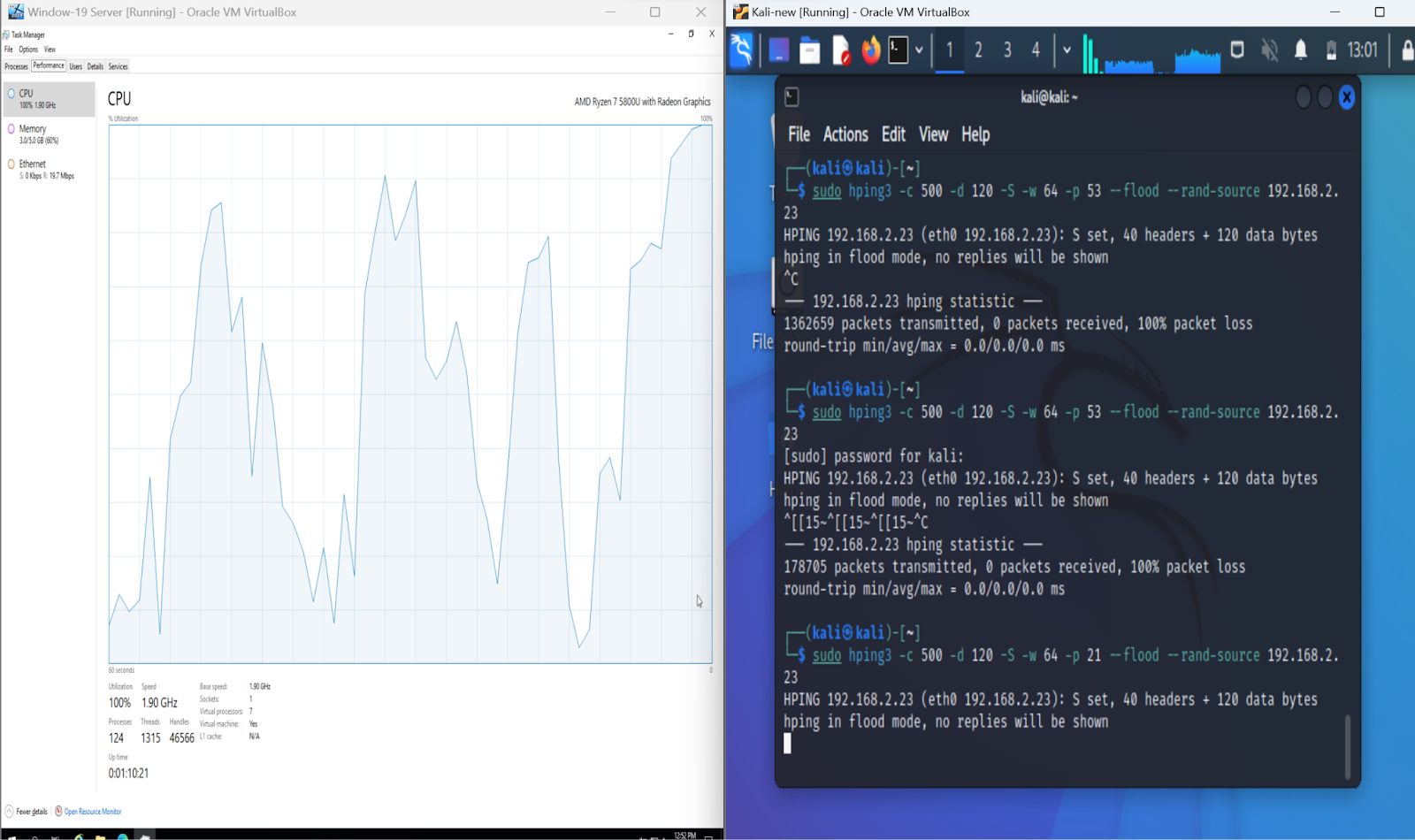

  1. After the target is launched, we can see the CPU utilization rises exponentially

  1. Before we move forward to the Splunk page, it has to be noted that KALI_DOS is a name given to network monitor. Later, we will be searching under the same monitoring. Here Splunk is monitoring Local Windows Network Monitoring as, we can see it is also highlighted.

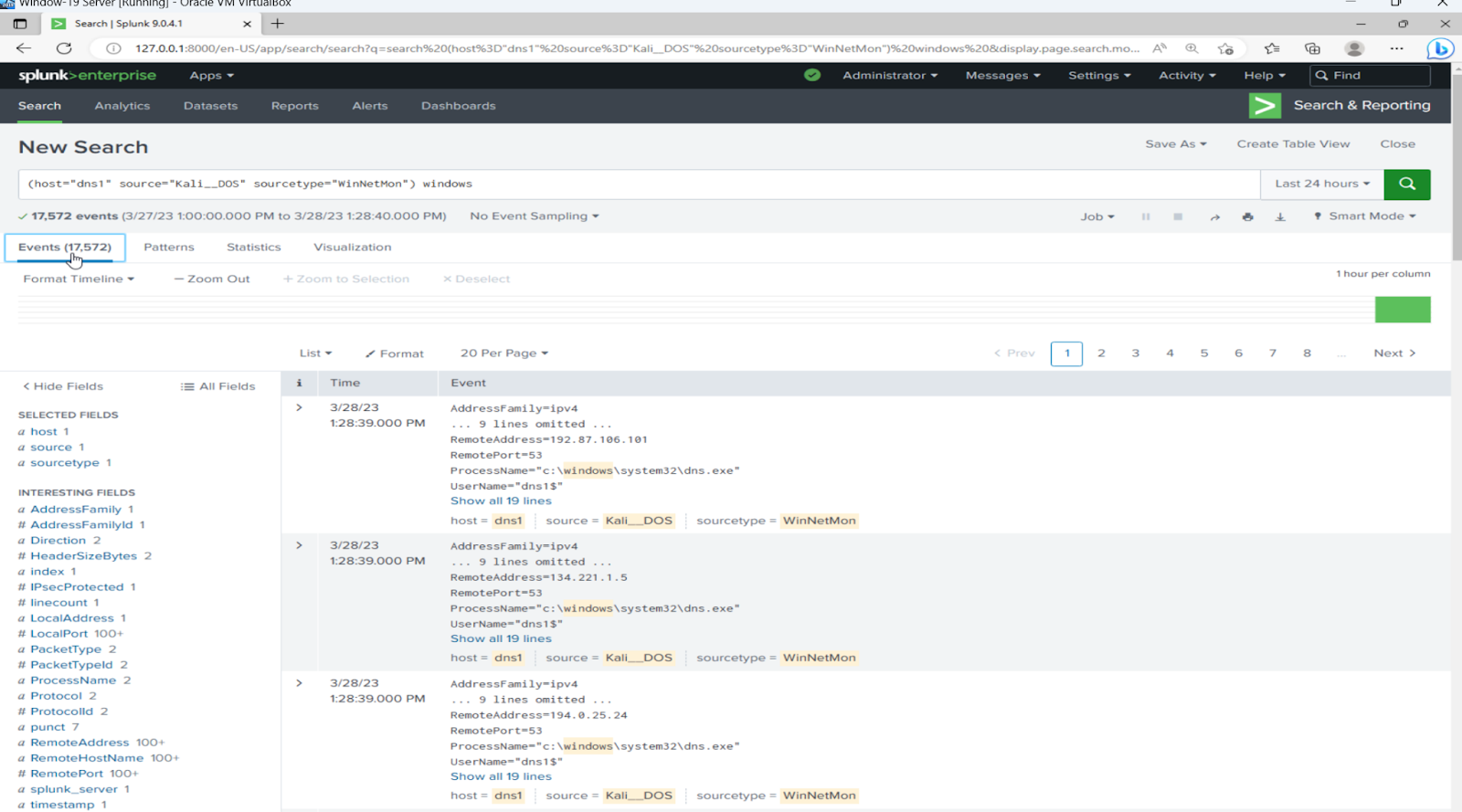

  1. After that, we navigate to the Splunk webpage and check our attack logs. As we can see more than 17 thousand events have occurred already.

  1. If we further dig into the Splunk page further it has already analysed the attack pattern and provides insight into attacks.

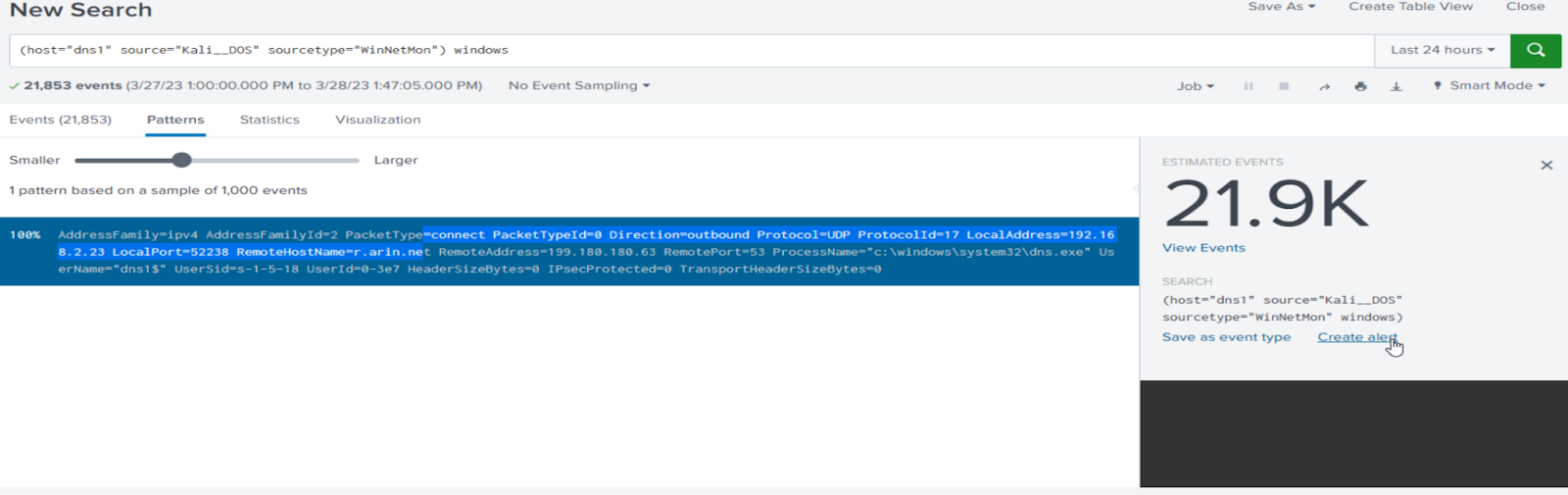

  1. It is seen that there were around 21.9K events already. We can simply create alert for such patterns and notify them in realtime.

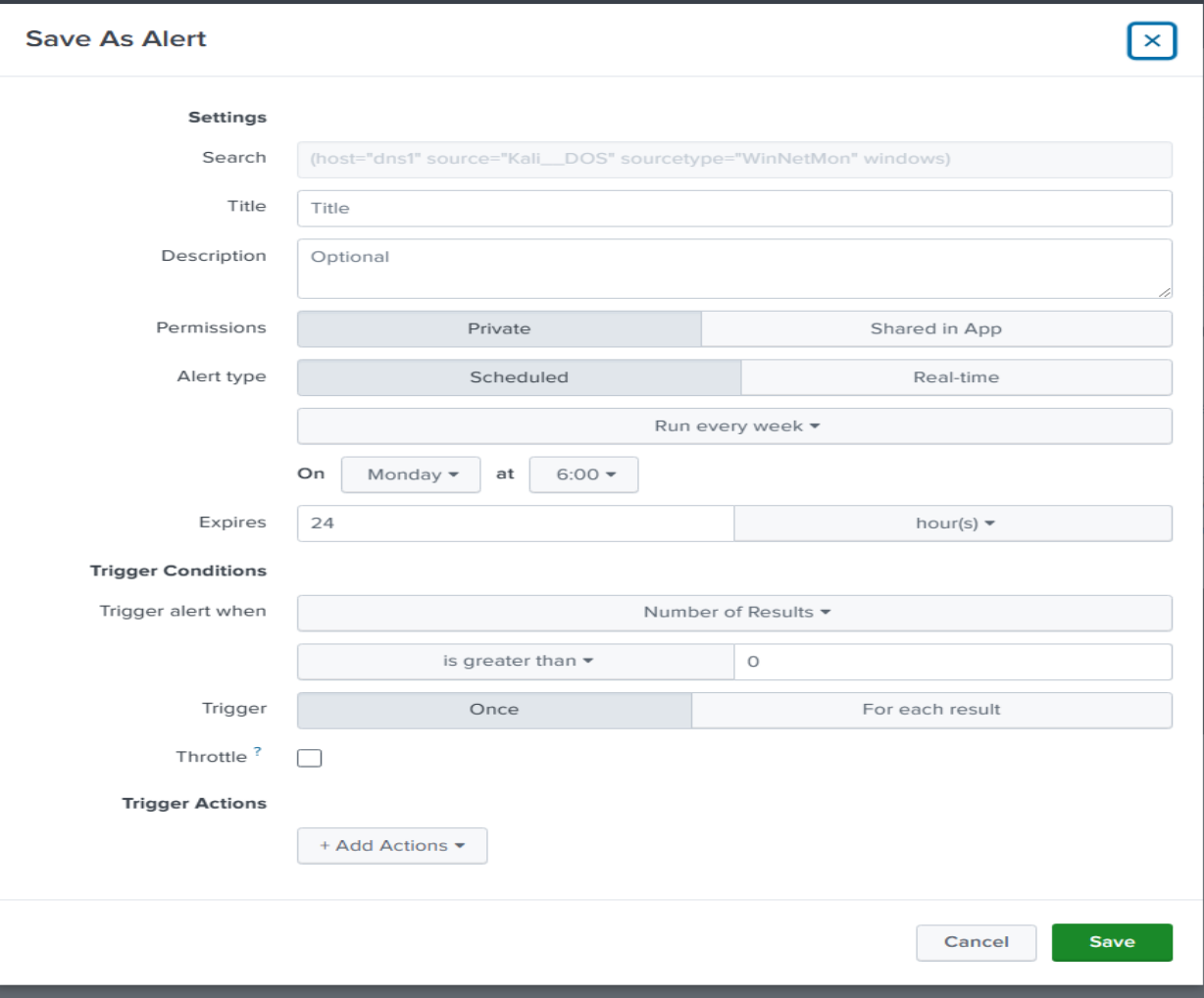

  1. The alert configuration page has various options to tune accordingly.

For feedback and suggestions, feel free to email me at chapagainsaurav@gmail.com
