Whether you’re a budding developer, a curious learner, or someone brushing up on the fundamentals — understanding databases is essential in today’s software-driven world. Databases power everything from simple apps to massive enterprise systems. In this blog series, we’ll break down complex concepts into digestible chunks so you can build a strong foundation in database design and management.

Let’s start our journey by exploring the core concepts that every developer and database designer should know!

Data Models in DBMS

A Data Model in a DBMS is an abstract framework that defines how data is structured, stored, and related to real-world entities. It standardizes how data elements interact with each other and with the attributes of entities, ensuring consistency, integrity, and efficient access and storage of data.

Data models play a fundamental role in the design of any database system — they form the foundation upon which databases are built, optimized, and queried.

🔹 Types of Data Models

Hierarchical Model

• Concept:
  Organizes data in a tree-like structure, where each record (parent) can have multiple child records, but each child has exactly one parent.

• Characteristics:

• Easy to understand and implement for one-to-many relationships.

• Efficient for fixed, large-scale reports.

• Inflexible for complex relationships and prone to data redundancy.

• Example:
  An organizational hierarchy where a CEO oversees multiple managers, and each manager supervises several executives. While a manager (parent) can have many executives (children), an executive reports to only one manager.

Network Model

• Concept:
  An extension of the hierarchical model that allows many-to-many relationships. Data is represented as a graph structure, enabling each child record to have multiple parent records.

• Characteristics:

• Supports complex relationships between entities.

• Enhances data retrieval efficiency.

• More difficult to design and maintain than simpler models.

• Example:
  A university system where students can enroll in multiple courses, and each course can have multiple students.

Relational Model

• Concept:
  Structures data into two-dimensional tables (relations) made up of rows (tuples) and columns (attributes). Tables are linked via keys to represent relationships.

• Characteristics:

• Highly structured and flexible.

• Maintains data integrity through constraints like primary and foreign keys.

• SQL is used for data manipulation and querying.

• Reduces redundancy through normalization.

• Example:
  A Students table and a Courses table linked via a StudentID in an Enrollment table, representing which student is enrolled in which course.

Object-Oriented Model

• Concept:
  Integrates Object-Oriented Programming (OOP) concepts with database features. Both data and relationships are encapsulated as objects, just like in OOP languages.

• Characteristics:

• Supports inheritance, encapsulation, and polymorphism.

• Ideal for applications requiring complex data types like graphics, multimedia, or scientific simulations.

• Example:
  An Employee object contains properties like name and address, and methods like calculateSalary()

Entity-Relationship (ER) Model

• Concept:
  A high-level, conceptual model used primarily during the database design phase. It visually maps real-world entities, their attributes, and the relationships among them using ER diagrams.

• Characteristics:

• Provides a clear and intuitive way to design databases.

• Often used as a preliminary step before converting to a relational model.

• Example — An Employee entity works for a department entity.

DBMS vs RDBMS

🔸 What is DBMS?

A Database Management System (DBMS) is software that provides an interface to define, create, maintain, and control access to databases. It handles the underlying storage and facilitates operations like data retrieval, insertion, deletion, and updates.

• Examples: File systems, XML databases, NoSQL databases.

🔹 What is RDBMS?

A Relational Database Management System (RDBMS) is a specialized type of DBMS based on the relational model. It organizes data into structured tables (relations) consisting of rows and columns. RDBMS uses SQL for querying and supports ACID properties to ensure transactional integrity. It also promotes normalization to eliminate data redundancy.

• Examples: MySQL, PostgreSQL, Oracle, SQL Server.

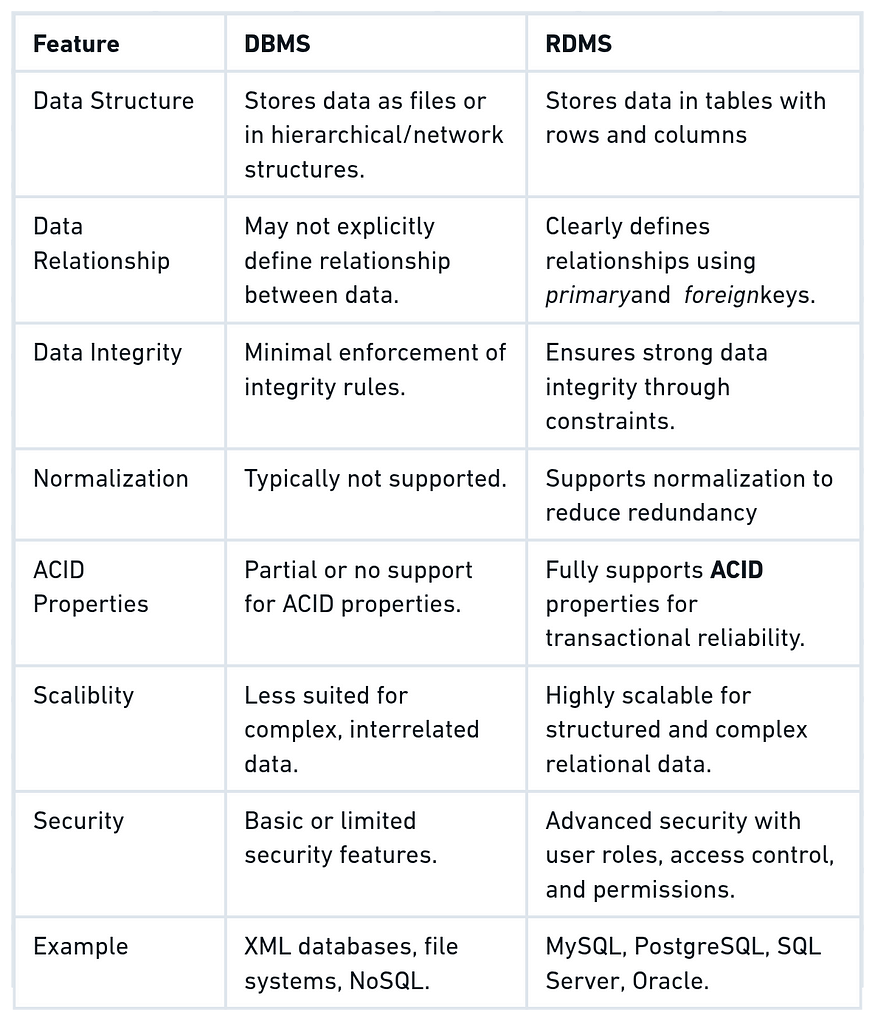

DBMS VS RDBMS

RDBMS is a more structured and robust form of DBMS. While DBMS offers a foundational approach to data storage and access, RDBMS brings in structure, reliability, and scalability — making it the go-to solution for most modern applications where data consistency, relationships, and complex querying are crucial.

Database Schema vs Database Instance

What is a Database Schema?

A Database Schema is the blueprint or logical design of a database. It defines how data is organized and how relationships between data are maintained. The schema outlines everything from tables and columns to data types, keys, and constraints.

Key Characteristics:

• Logical Structure:
  Defines how data is logically organized and interrelated.

• Metadata:
  Contains data about the data, including table definitions, column names, and relationships.

• Static Nature:
  Remains mostly unchanged over time, unless the structure of the database itself is modified.

• Abstraction Layer:
  Provides a high-level view, abstracting the complexities of how data is stored and accessed.

Types of Schemas:

1. Physical Schema:

• Describes how data is physically stored on storage devices.

• Covers file organization, indexing, data compression, partitioning, etc.

2. Logical Schema:

• Represents the entire logical view of the database.

• Defines entities, attributes, data types, constraints, and relationships.

3.External Schema:

• Also known as the view level, it defines the portion of the database relevant to a specific user or application.

• Enables customized access control and simplifies complex data for end-users.

What is a Database Instance?

A Database Instance is the actual snapshot of the data in the database at any given point in time. While the schema defines structure, the instance refers to the real data currently held within that structure.

🔍 Key Characteristics:

• Dynamic:
  Continuously changes as operations like insertions, deletions, and updates occur.

• Snapshot of Data:
  Represents the current state or content of the database — similar to a “live photo” of the data at that instant.

Keys in DBMS

📌 Types of Keys:

Super Key

A Super Key is any combination of one or more attributes that can uniquely identify a row in a table. It may include extra attributes that are not necessary for uniqueness.

• Example:
  In a student table with attributes (StudentID, Name, Age, Phone):

• (StudentID) is a super key.

• (StudentID, Name) is also a super key — although it includes an unnecessary attribute, it still ensures uniqueness.

Candidate Key

A Candidate Key is a minimal super key — meaning no attribute can be removed without losing its ability to uniquely identify a row. There can be multiple candidate keys in a table.

• Example:
  In a Student table with (StudentID, RollNo, Name):

• If both StudentID and RollNo uniquely identify a student, then both are candidate keys.

Primary Key

A Primary Key is the chosen candidate key used to uniquely identify each row in a table. It must be unique and not null. There can be only one primary key per table.

• Example:
  StudentID is often chosen as the primary key in a Student table.

Alternate Key

An Alternate Key is a candidate key that was not chosen as the primary key. It still has the potential to uniquely identify rows.

• Example:
  If StudentID is the primary key and RollNo is another candidate key, then RollNo is considered an alternate key.

Foreign Key

A Foreign Key is an attribute in one table that refers to the primary key in another table. It establishes referential integrity between related tables.

• Example:
  In an Orders table:

• CustomerID could be a foreign key referencing the CustomerID in the Customers table.

Composite Key

A Composite Key is a primary key made up of two or more attributes. Together, they uniquely identify each record. No single attribute in the combination can uniquely identify a record on its own.

• Example:
  In a Grades table:

• (StudentID, CourseID) together form a composite key, as neither StudentID nor CourseID alone can uniquely identify a grade.

SQL vs NoSQL — What’s the Difference?

SQL and NoSQL represent two fundamentally different approaches to storing and managing data. While SQL databases offer structure and reliability, NoSQL databases bring flexibility and scalability to the table — especially in modern, data-intensive applications.

SQL Databases (Relational)

SQL (Structured Query Language) databases follow the relational model, where data is stored in predefined tables consisting of rows and columns. Relationships between data are established using primary and foreign keys.

Key Characteristics:

• Structured Schema:
  Data is organized into fixed schemas. Schema changes can be complex and may require downtime.

• ACID Compliance:
  SQL databases strongly adhere to ACID properties (Atomicity, Consistency, Isolation, Durability), ensuring reliable transactions.

• Vertical Scalability:
  Scales by increasing resources (CPU, RAM) of a single server.

• Powerful Querying:
  Ideal for applications requiring complex joins, transactions, and consistent data.

• Use Cases:
  Financial systems, inventory management, e-commerce platforms — where data consistency and relationships are crucial.

• Examples:
  MySQL, PostgreSQL, Oracle, Microsoft SQL Server.

NoSQL Databases (Non-Relational)

NoSQL databases are non-relational and offer more flexibility in how data is stored and queried. They’re designed for scalability and performance, especially in distributed systems with unstructured or rapidly changing data.

Key Characteristics:

• Flexible Schema:
  Supports semi-structured data like JSON documents, key-value pairs, wide-columns, or graphs.

• Types of NoSQL Models:

• Document-based: MongoDB

• Key-Value: Redis

• Columnar: Cassandra

• Graph: Neo4j

• BASE Model:
  Most NoSQL systems follow the BASE principle (Basically Available, Soft state, Eventually consistent):

• Basically Available — System remains operational even during partial failures.

• Soft State — State of data may change over time, even without input.

• Eventually Consistent — Data will become consistent eventually, not immediately.

• Horizontal Scalability:
  Scales easily across multiple servers, making it ideal for large-scale, distributed applications.

• Performance at Scale:
  Suited for high-traffic applications, real-time analytics, IoT, and big data workloads.

• Use Cases:
  Social media feeds, content management systems, analytics platforms, recommendation engines.

• Examples:
  MongoDB, Cassandra, Redis, Couchbase, Neo4j.

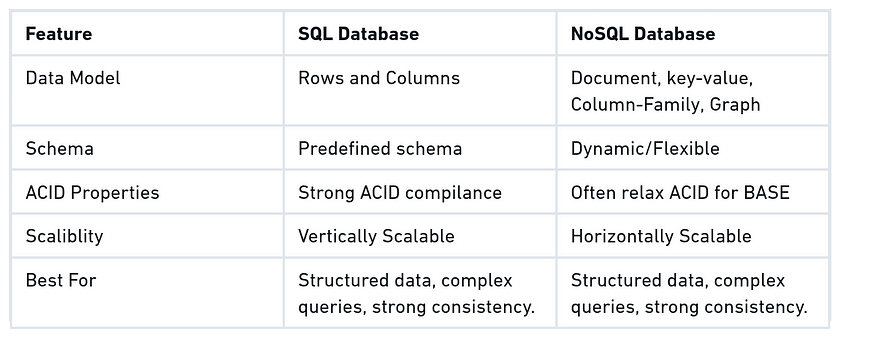

SQL VS NoSQL Database

🧠 Final Thoughts

In this first part of our deep dive into Database Management Systems (DBMS), we explored foundational concepts like data models, DBMS vs RDBMS, schemas and instances, keys, and the differences between SQL and NoSQL. These core ideas not only form the backbone of how databases operate but also influence how we design, manage, and scale modern applications.

Whether you’re just starting your journey or brushing up on the essentials, having a solid understanding of these principles is crucial for working with any real-world database system.

👉 In Part 2, we’ll go further into advanced topics like Normalization, Denormalization, E-R Diagrams, and more — so stay tuned!
