SelfCAD is a powerful and user-friendly 3D modeling software designed to make the process of creating, modifying, and preparing models for 3D printing accessible to beginners and professionals alike. One of the essential tools within SelfCAD is the Plane, which serves as a foundational element in many design projects. Understanding how to use a plane effectively can significantly enhance your modeling capabilities, allowing for precise constructions, accurate alignments, and creative design workflows.

To access the interactive tutorial to this article, check out; https://www.selfcad.com/tutorials/3q3m6u2q5u6v224n18715b5zb1h6k342r165

Once you’ve launched the editor;

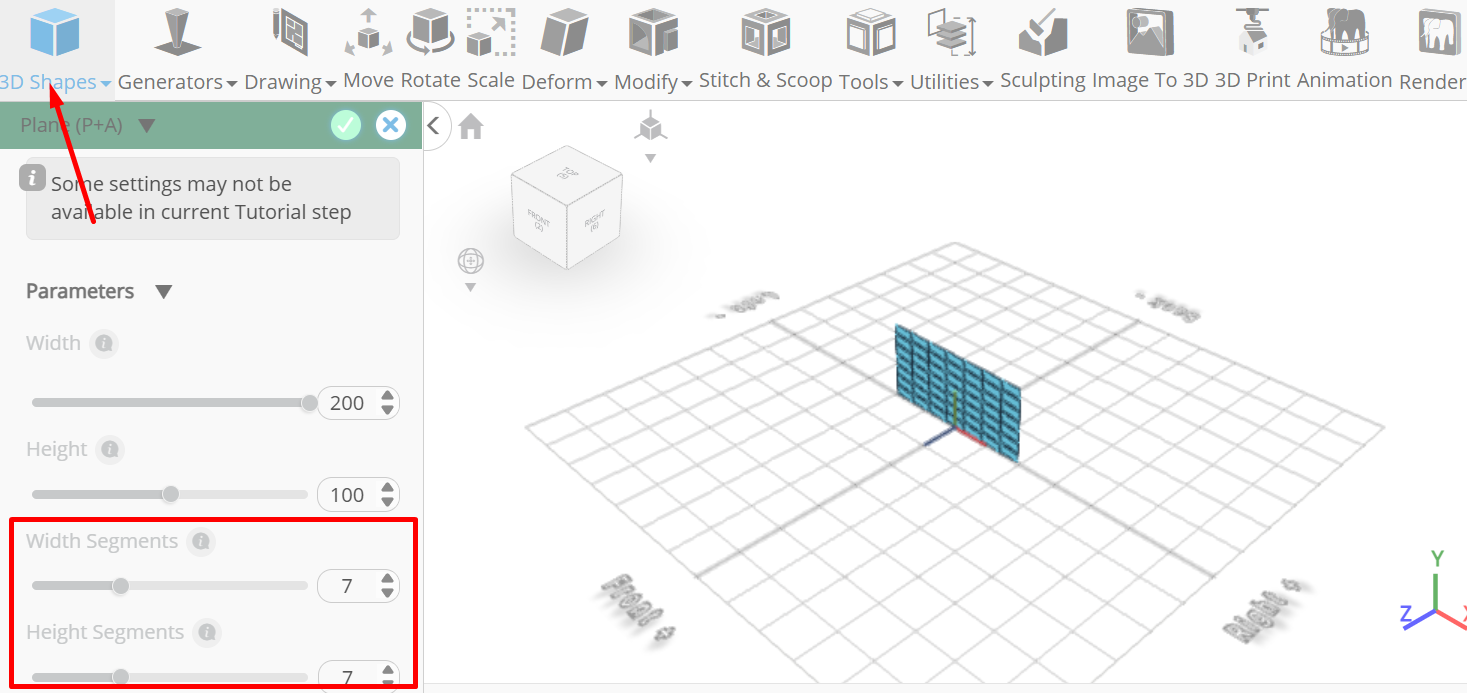

From the 3D Shapes category on the toolbar choose plane; Set width segment to 7, height segment to 7

Tick the checkmark finalize plane

Click solid+wireframe button to set rendering mode

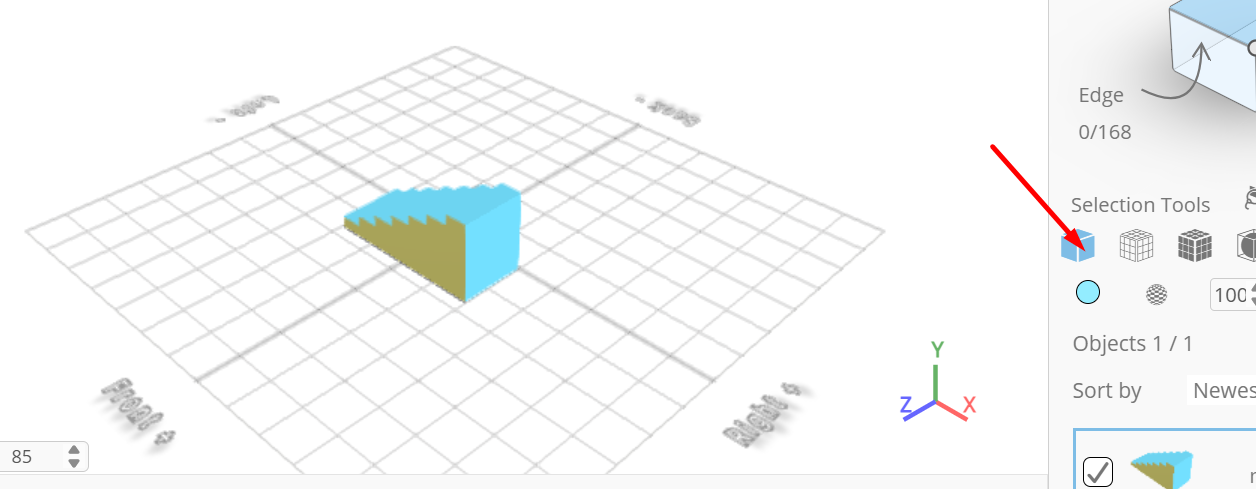

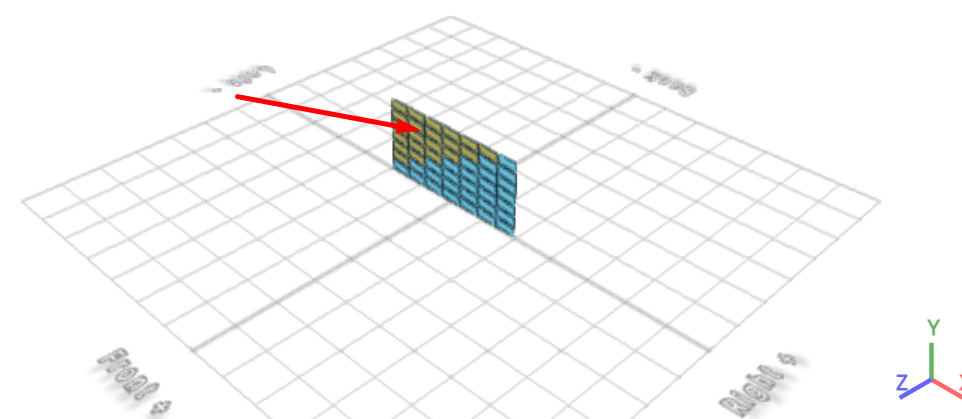

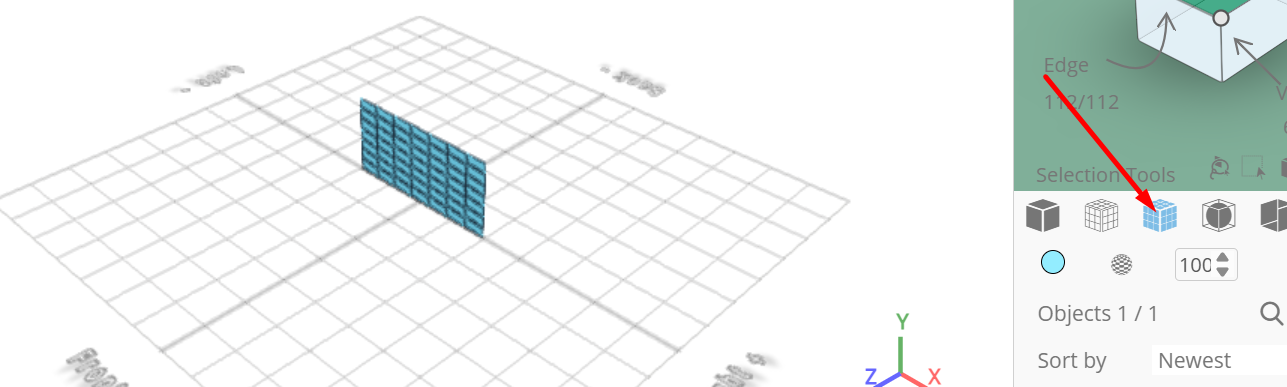

Click to activate face selection; Click on highlighted region to select it

Click delete button to delete selected objects

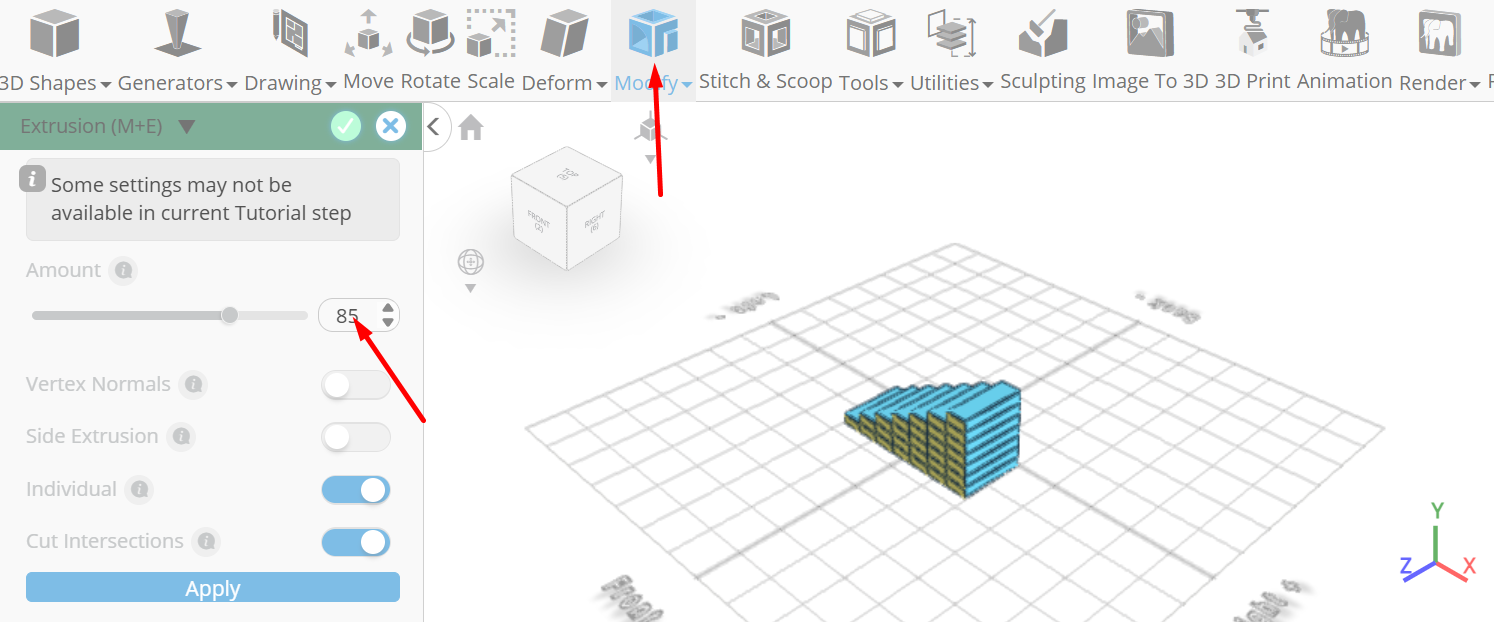

From the modify category on the toolbar choose extrusion; Set extrusion amount to 85

Tick the checkmark to finalize extrusion

Click solid button to set rendering mode

As you continue honing your design skills, remember that SelfCAD offers a wealth of resources to support your learning journey. To deepen your understanding and explore more advanced features, consider checking out the interactive tutorials (https://www.selfcad.com/tutorials) available on the SelfCAD website. The tutorials page provides a treasure trove of guides, tips, and tricks that cater to designers of all levels.

More structured learning experience can also be accessed at the SelfCAD Academy (https://www.selfcad.com/academy/curriculum/), https://www.youtube.com/@3dmodeling101, and 3D Modeling 101 series (https://www.youtube.com/playlist?list=PL74nFNT8yS9DcE1UlUUdiR1wFGv9DDfTB). This comprehensive resource offers in-depth courses taught by industry experts, allowing you to master the intricacies of SelfCAD at your own pace
