SQL BULK INSERT Format Issues

Question:

I'm using SQL Server and Management Studio.

I was getting data conversion errors when performing a BULK INSERT into a table, that I could not resolve and switching to using a format file allowed data to be inserted, but the data inserted was wrong.

I initially had ~2000 rows, but reduced down and can reproduce the same issue with a single row of data.

Here are the database table declarations:

-- Create the Signals table
CREATE TABLE Signals
(
    ID INT IDENTITY(1,1) PRIMARY KEY,
    SignalName NVARCHAR(255) NOT NULL,
    SignalUnit NVARCHAR(50)
);
GO

-- Create the Series table
CREATE TABLE Series
(
    ID INT IDENTITY(1,1) PRIMARY KEY,
    SeriesType NVARCHAR(255) NOT NULL,
    ReferenceSignalID INT,
    FOREIGN KEY (ReferenceSignalID) REFERENCES Signals(ID)
);
GO

-- Create the SeriesData table
CREATE TABLE SeriesData
(
    ID INT IDENTITY(1,1) PRIMARY KEY,
    SeriesID INT,
    SignalID INT,
    SignalValue FLOAT NULL, -- I queried the precision of this and it is "53"
    ReferenceSignalValueID INT NULL,
    FOREIGN KEY (SeriesID) REFERENCES Series(ID),
    FOREIGN KEY (SignalID) REFERENCES Signals(ID),
    FOREIGN KEY (ReferenceSignalValueID) REFERENCES SeriesData(ID)
);
GO

Example CSV content (reduced from ~2000 rows as example):

29,953,0.0,
29,953,0.01000213623046875,
29,953,0.0200042724609375,

There are no headers, but columns represent SeriesID | SignalID | SignalValue | ReferenceSignalValueID (all blank in this example - to be NULL in the database)

Line ending characters are "CR""LF" - encoding is UTF-8.

I scanned down and cannot see any rogue/hidden/invalid characters, all formats seem to match the target.

SQL code doing the BULK INSERT:

BULK INSERT SeriesData
FROM 'myPath\myData.csv'
WITH (
    --FIELDTERMINATOR = ',',
    --ROWTERMINATOR = '\r\n', -- also "\n" has an issue, but more errors
    FORMATFILE = 'myPath\SeriesData.fmt',
    CODEPAGE = '65001' -- obtained this from AI chats for UTF-8 encoding
    --KEEPNULLS -- no change using this
)

The .fmt file I have contains:

10.0
4
1       SQLINT              0       4       ","     1     SeriesID               ""
2       SQLINT              0       4       ","     2     SignalID               ""
3       SQLFLT8             0       8       ","     3     SignalValue            ""
4       SQLINT              0       4       "\r\n"  4     ReferenceSignalValueID ""

(received this from an AI chat)

The result in the SeriesData table is like this:

ID      SeriesID    SignalID    ReferenceSignalValueID
----------------------------------------------------------
6166    3355961         0   NULL    NULL
6167    3355961         0   NULL    NULL
6168    3355961         0   NULL    NULL

For every row of the CSV the SeriesID is always 3355961 instead of 29, the SignalID is always 0 instead of 953, and the SignalID is always NULL instead of the actual float value.

The AI chat I was using to debug and learn about how to do this suggested the following .fmt content (but using this resulted in the same type mismatch error):

10.0
4
1       SQLCHAR             0       12      ","     1     SeriesID               ""
2       SQLCHAR             0       12      ","     2     SignalID               ""
3       SQLCHAR             0       20      ","     3     SignalValue            ""
4       SQLCHAR             0       12      "\r\n"  4     ReferenceSignalValueID ""

Does anyone know how I can get SQL to interpret the values correctly, or is there something else fundamentally wrong?

For further info, previous attempts were using FIELDTERMINATOR and ROWTERMINATOR (as commented-out above) and in those cases I was getting an error:

Msg 4864, Level 16, State 1, Line 79
Bulk load data conversion error (type mismatch or invalid character for the specified codepage) for row 1, column 3 (SignalID).

This is concerning seeing as SignalID should be column 2, not 3 - does this suggest something wrong with the CSV or SQL reading of it and the .fmt file approach is not sufficient/distracting from the "real" issue?

Answer:

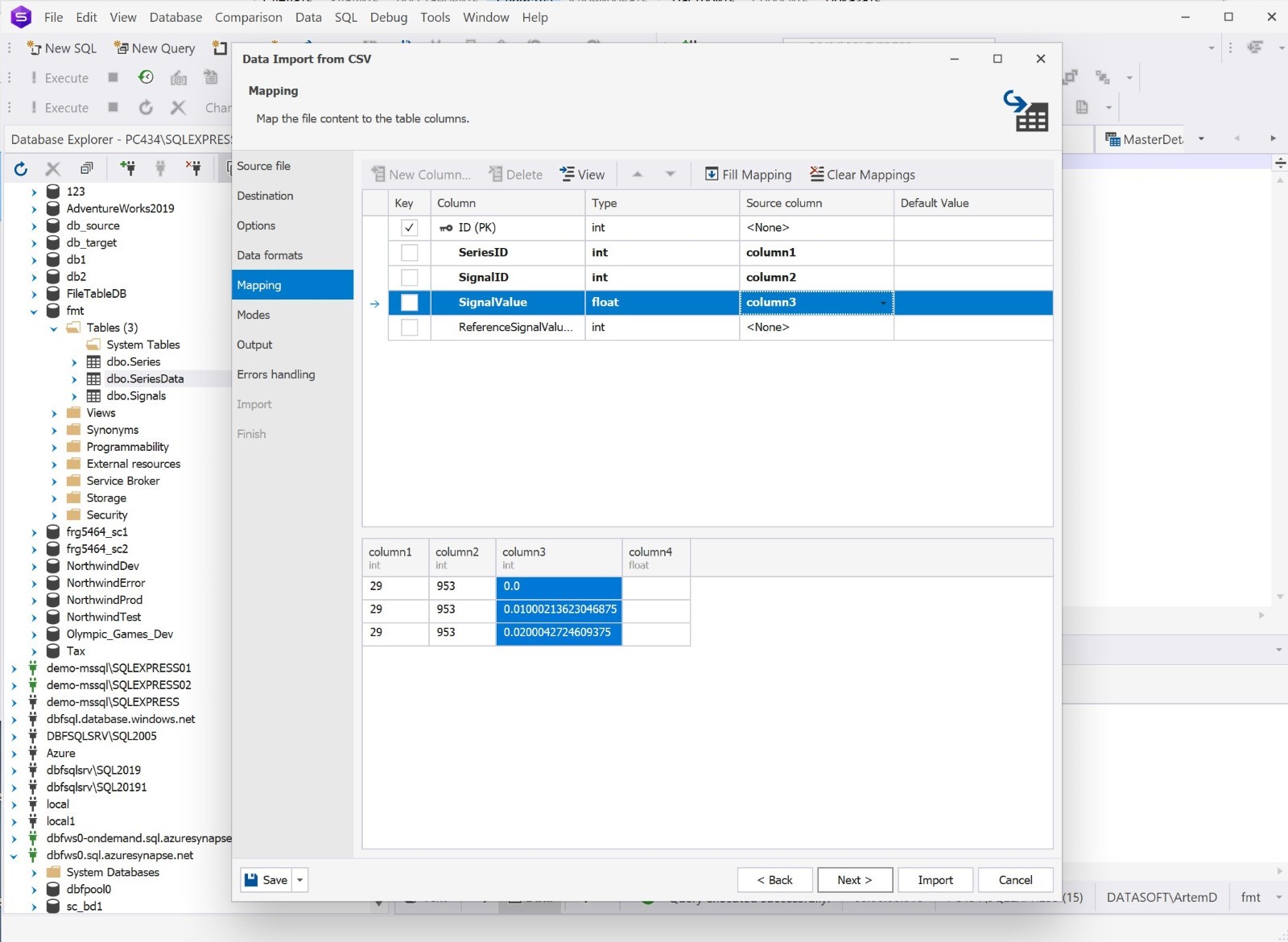

You can load data from a CSV file without using additional templates (*.fmt) by using the Import Wizard in dbForge Studio for SQL Server.

Make sure that the decimal separator is correctly specified as a dot in the import settings, as it appears in your file. Also, perform column mapping. The first column, ID, which is of type IDENTITY, will be filled in automatically and should not be included in the mapping. The last column, ReferenceSignalValueID, will be automatically set to NULL if it is empty in the CSV file.

If needed, you can manually set any other value by specifying it in the Default Value field during import configuration.

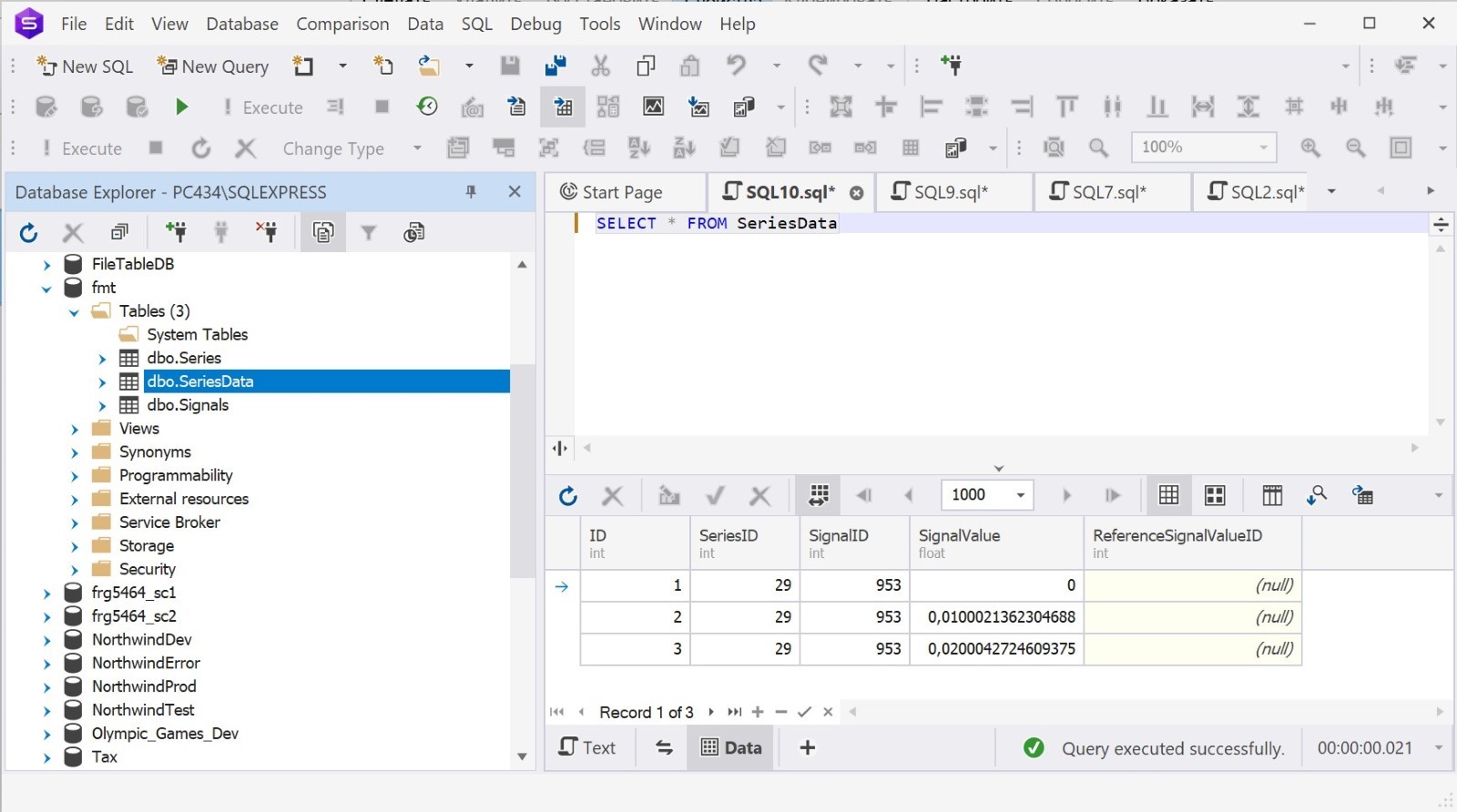

Let's look at the result and make sure that all values ​​were transferred without any effort:
