How Do Smartwatches and Smartphones Track Your Steps? The Science of Pedometers

Counting of steps is now a common functionality on smartwatches, fitness trackers and on smartphones. Although the idea can be presented as simple, the technology is a highly advanced combination of sensors, signal processing and intelligent algorithms. This article decomposes how these devices track your steps with a reasonable level of accuracy, the problems to overcome, how it is technically implemented.

1. Core Sensors Behind Step Counting

Accelerometer The key sensor of any pedometer is the 3-axis accelerometer measuring acceleration on the X, Y and Z directions. The accelerometer records variations in acceleration caused by every turn of your wrist, or phone. The nature of the cyclic pattern of acceleration for walking can be measured and quantified.

Gyroscope A gyroscope is a device that measures angular speed; thus, recognizes the rotation. When used together with accelerometer data, it can assist in differentiating between real walking or running motions and other shakes or vibrations at random.

Magnetometer (Optional) The devices also have a magnetometer to identify direction and orientational changes, contributing to the activity identification but to a lesser degree to the number of steps measured.

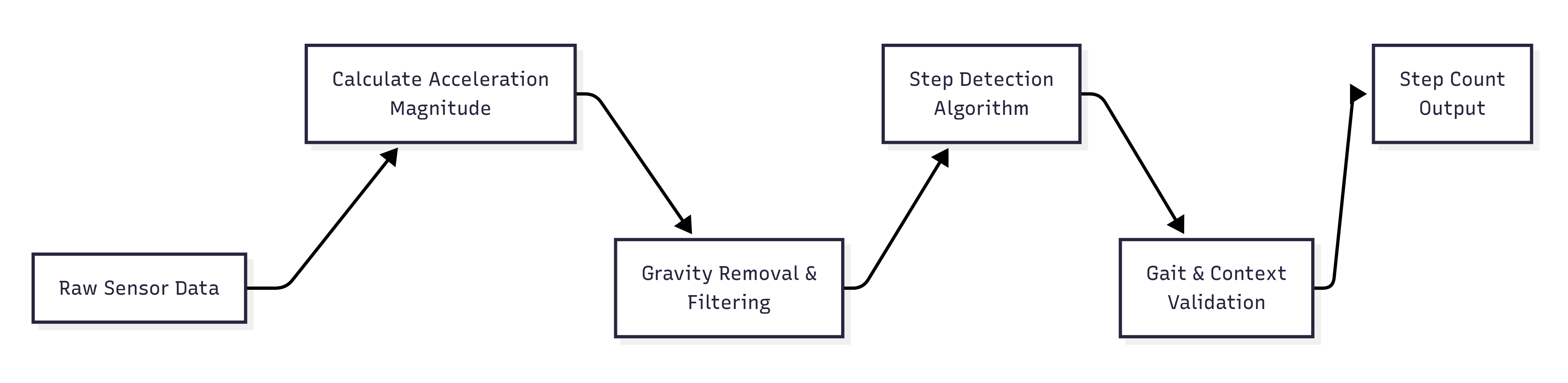

2. From Raw Data to Usable Signals

Raw sensor data is noisy in nature and contains spurious forces like gravity. The firmware of this device uses sensor fusion and filtering techniques to make this data useful.

Step 1: Calculating Acceleration Magnitude To make step detection orientation-independent, the magnitude of the total acceleration is computed:

a_total = √(ax² + ay² + az²)

Step 2: Gravity Removal Gravity (≈ 9.81 m/s²) is constant and must be removed to isolate actual movement:

gravity = α * gravity + (1 - α) * a_total
linear_accel = a_total - gravity

Here, α is a filter constant controlling how quickly gravity is updated.

Step 3: Noise Filtering

• Low-pass filters isolate gravity for removal.

• High-pass filters eliminate slow drifts and irrelevant motion.

• Moving average filters smooth jagged spikes for cleaner signal processing.

3. Step Detection Algorithm

Once the acceleration signal is clean, the device identifies walking patterns using peak detection. Walking produces a waveform where each peak corresponds to a foot striking the ground.

if (linear_accel > step_threshold &&
    min_step_interval < time_since_last_peak < max_step_interval)
    count_step();

Where:

• step_threshold is the minimum acceleration amplitude considered a step (≈ 1.2 m/s²).

• min_step_interval (~250 ms) prevents false counts from quick

• max_step_interval (~2 s) ignores extremely slow movements.

4. Gait Validation and Accuracy Improvements

To further improve accuracy, modern wearables use:

• Gyroscope validation – Confirms rotational movement consistent with arm swings during walking.

• Machine learning models – Trained on large datasets to recognize step patterns for different walking styles and speeds.

• GPS integration – Confirms movement speed (walking is typically 1–2 m/s).

• Context detection – Filters out steps when in vehicles or during unrelated repetitive arm motions.

5. Limitations and Error Sources

Even advanced pedometers can miscount steps due to:

• False positives – Repetitive motions like brushing teeth or clapping.

• False negatives – Walking with minimal arm movement (e.g., holding a shopping cart).

• Device placement – Wrist-worn trackers tend to be more consistent than smartphones in pockets or bags.

High-end devices typically maintain ~95% accuracy under normal walking conditions, but deviations occur with unusual gait patterns or mixed activities.

6. Why Smartwatches Often Outperform Smartphones

• Consistent Positioning – Watches are always on the wrist, reducing sensor orientation changes.

• Continuous Tracking – Watches remain active throughout the day without being set aside.

• Additional Sensors – Built-in heart rate monitors, barometers, and GPS provide richer context for filtering false positives.

Conclusion

The pedometer on your smartwatch or smartphone is much more than a motion detector — it is a mini motion-analysis system. These devices use accelerometers, gyroscopes and other complex calculations to turn the raw data that companies gather about your motion into an estimate of a number of steps that you took during the day. Although it cannot be called perfect, the sensor fusion, filtering, and pattern recognition approach provides a so far impressive estimate of physical activity suitable to day-to-day fitness tracking.
