Background what and why of EC2

Welcome to this introductory lesson on Amazon Elastic Compute Cloud (EC2). In this guide, we’ll explore the evolution of compute, the limitations of traditional data centers, and how EC2 transforms the way you deploy and manage applications in the cloud.

Challenges of Traditional Data Centers

In the 1980s and 1990s, organizations depended on on-premises data centers, facing:

• Lengthy Provisioning
  Ordering, racking, and configuring hardware could take weeks or months.

• High Upfront Costs
  Capital expenditures for servers, networking, and storage were significant.

• Maintenance Overhead
  Hardware failures, patch management, and firmware upgrades required dedicated teams.

• Limited Agility
  Scaling up or down on demand was virtually impossible without overprovisioning.

To accommodate peak loads, companies often overestimated capacity, tying up capital and reducing operational flexibility.

Emergence of Virtualization

The early 2000s saw the rise of virtualization, which enabled multiple virtual machines (VMs) to run on a single physical server. Key benefits included:

• Improved Resource Utilization

• Faster Recovery and simplified maintenance

• On-Demand Flexibility for deploying new workloads

Virtualization set the stage for cloud computing by decoupling hardware from software.

Introducing Amazon EC2

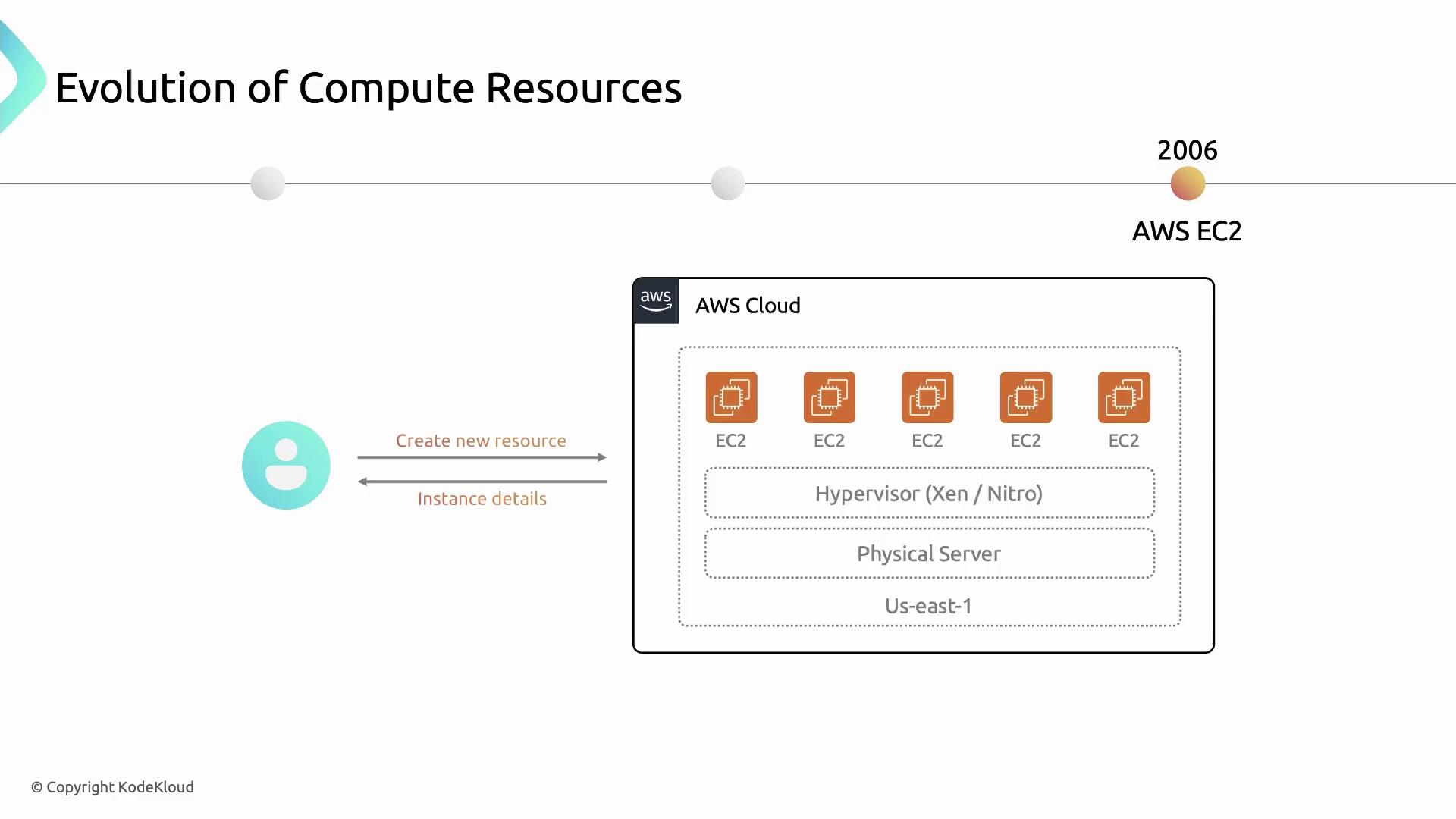

Amazon EC2 (launched in 2006) provides secure, resizable compute capacity in the AWS Cloud. Instead of procuring physical servers, you launch virtual instances with the CPU, memory, storage, and networking capacity you need.

Note

With EC2, provisioning a new server takes minutes instead of months—accelerating development cycles and innovation.

Key Features of Amazon EC2

Amazon EC2 offers a rich set of features to support diverse workloads:

1. Instance Families

Choose from multiple instance families optimized for different use cases:

2. Flexible Pricing Models

Optimize costs with multiple pricing options:

Warning

Provisioning the wrong instance type or pricing model can lead to unexpected costs. Always analyze your workload patterns first.

3. High Availability & Reliability

• Regions & Availability Zones
  Distribute instances across multiple AZs for fault tolerance.

• Automated Hardware Replacement
  AWS monitors and remediates failed hardware.

Learn more: AWS Regions and Availability Zones

4. Elastic Scaling

• Auto Scaling
  Automatically adjust capacity in response to demand.

• Elastic Load Balancing
  Distribute incoming traffic across healthy instances.

Learn more: Amazon EC2 Auto Scaling, Elastic Load Balancing

5. Customization & Control

• Amazon Machine Images (AMIs)
  Preconfigure OS, application server, and applications.

• User Data & CloudInit
  Automate instance initialization scripts.

Learn more: AMI Overview

6. Integration with AWS Services

EC2 works seamlessly with the broader AWS ecosystem:

Introduction to VPC subnet route table internet gateway and nat gateway

Amazon Web Services (AWS) provides a global, highly reliable backbone to deploy secure and scalable network architectures. In this guide, you’ll learn how VPCs, subnets, route tables, Internet Gateways, and NAT Gateways work together to isolate and manage traffic for your EC2 instances.

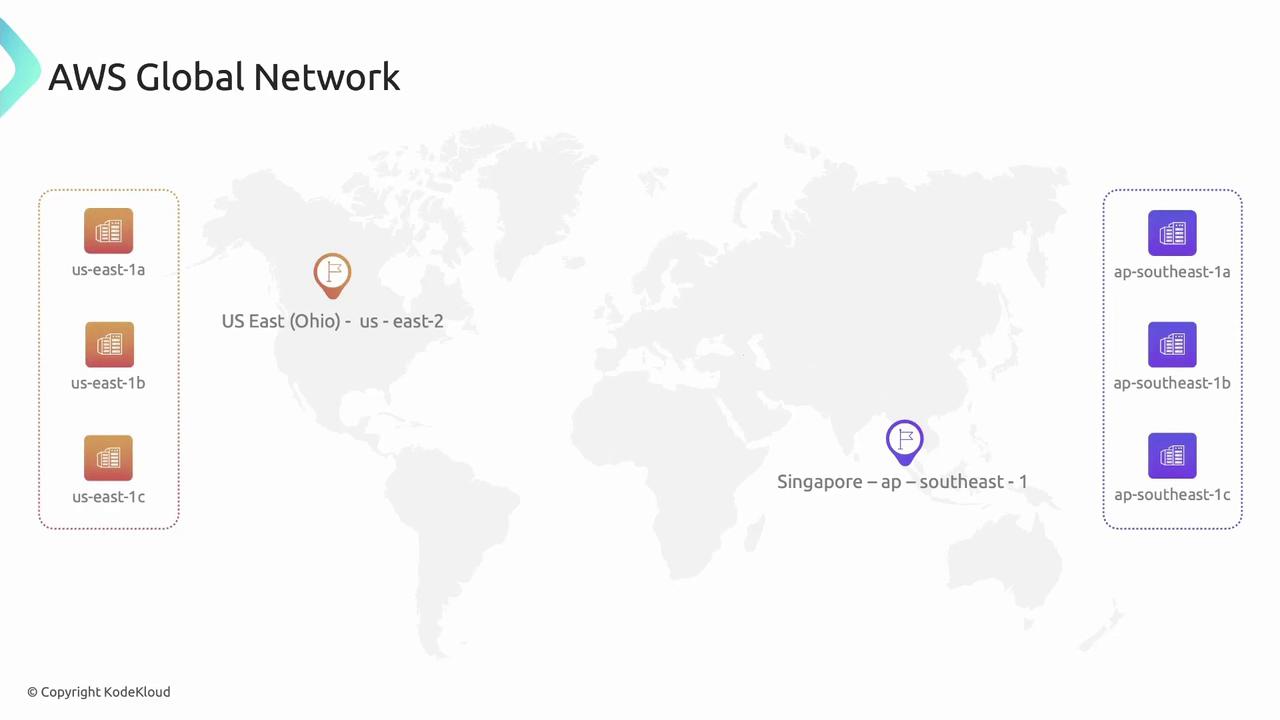

First, let’s explore AWS’s global footprint:

AWS Regions are fully isolated geographic areas. Each Region contains multiple Availability Zones (AZs)—separate data centers that ensure fault tolerance and high availability. Behind the scenes, the AWS Backbone Network securely interconnects Regions and edge locations for low-latency, high-throughput performance.

---

Virtual Private Cloud (VPC): Your Private Network

A Virtual Private Cloud (VPC) is your own private, logically isolated section of the AWS Cloud. It acts like a gated community, where you control who enters, leaves, and communicates internally.

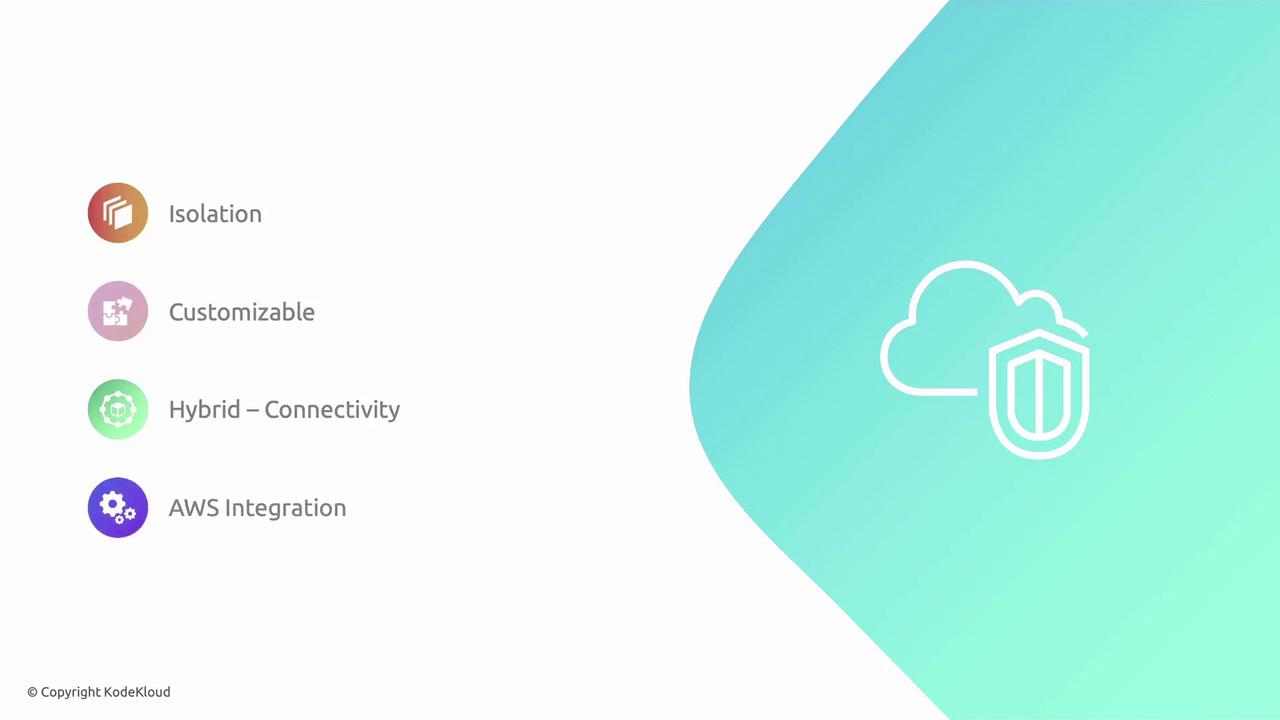

Key VPC capabilities:

Note

Remember: VPCs do not span Regions. Resources in one Region (and its AZs) cannot communicate with resources in another without a peer connection or VPN.

---

Subnets: Segmenting Your VPC

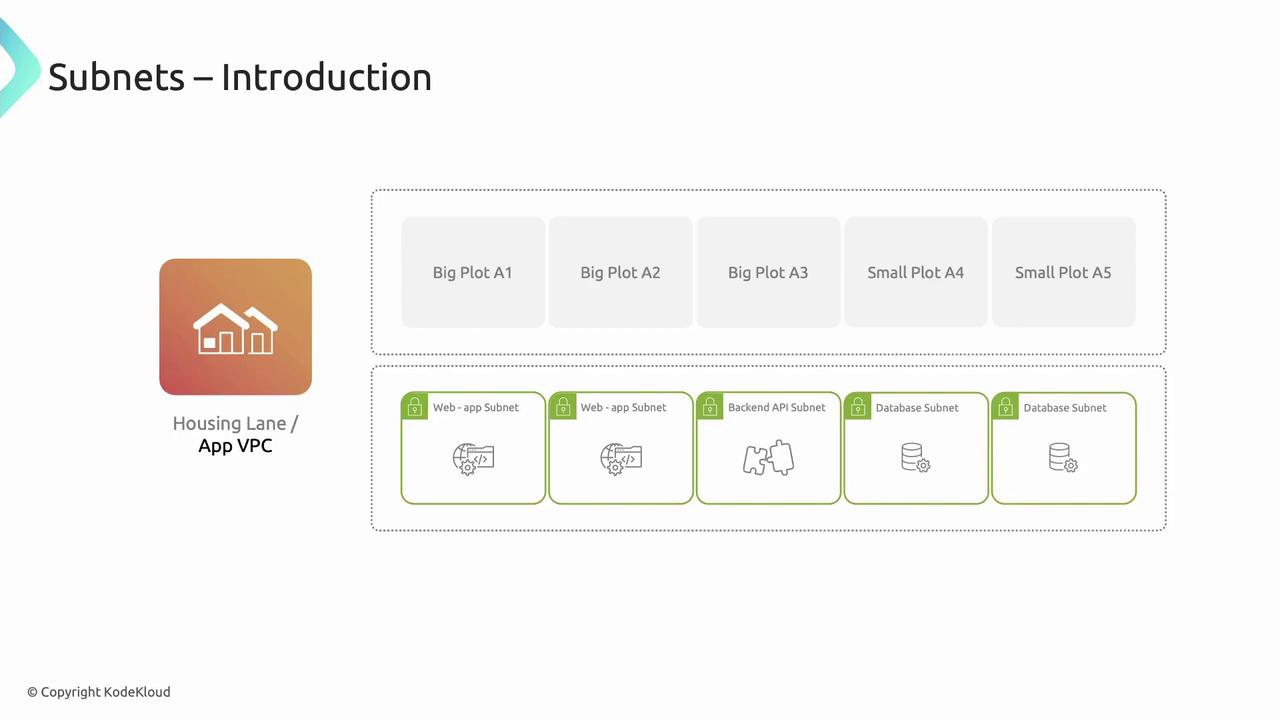

Subnets subdivide a VPC into smaller IP ranges within a single AZ—like dividing a housing lane into individual plots. Use subnets to isolate workloads (web servers, APIs, databases) based on security and routing needs.

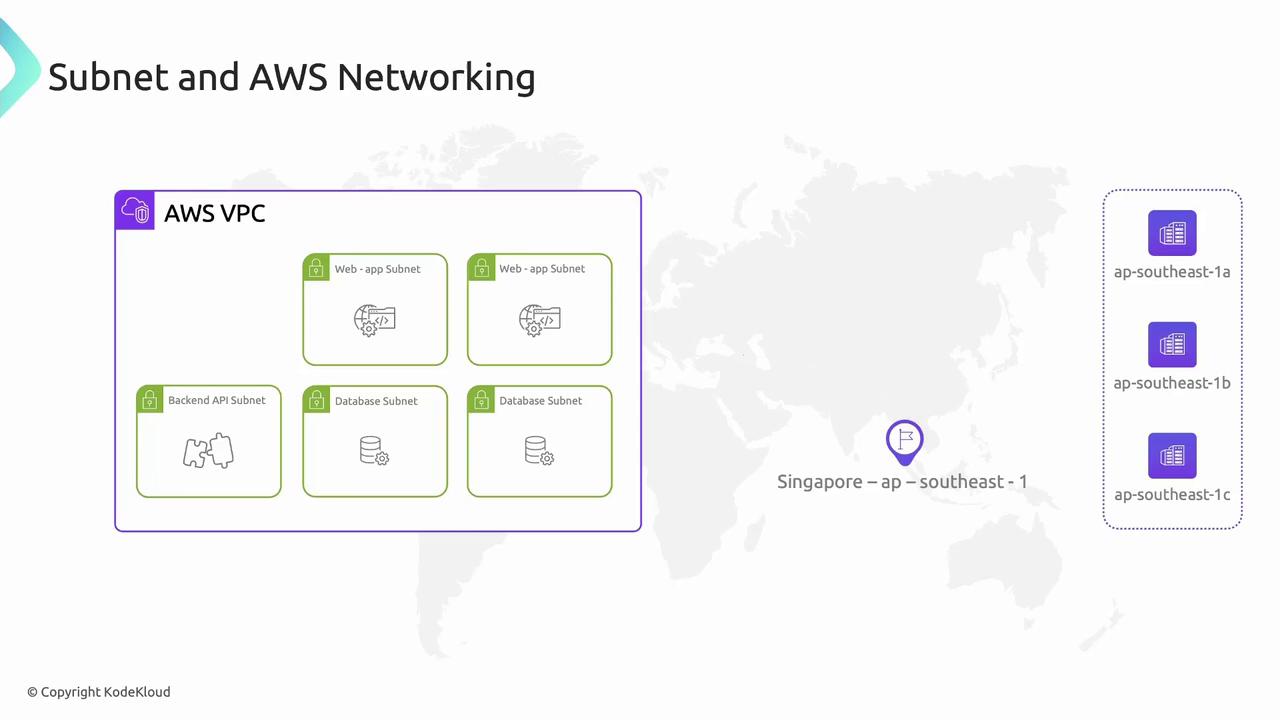

By placing subnets in multiple AZs, you build high-availability architectures:

---

Route Tables: Traffic Signposts

Route tables control how packets flow between subnets, VPC peering connections, Internet Gateways, and NAT Gateways. Each entry maps a destination CIDR to a target.

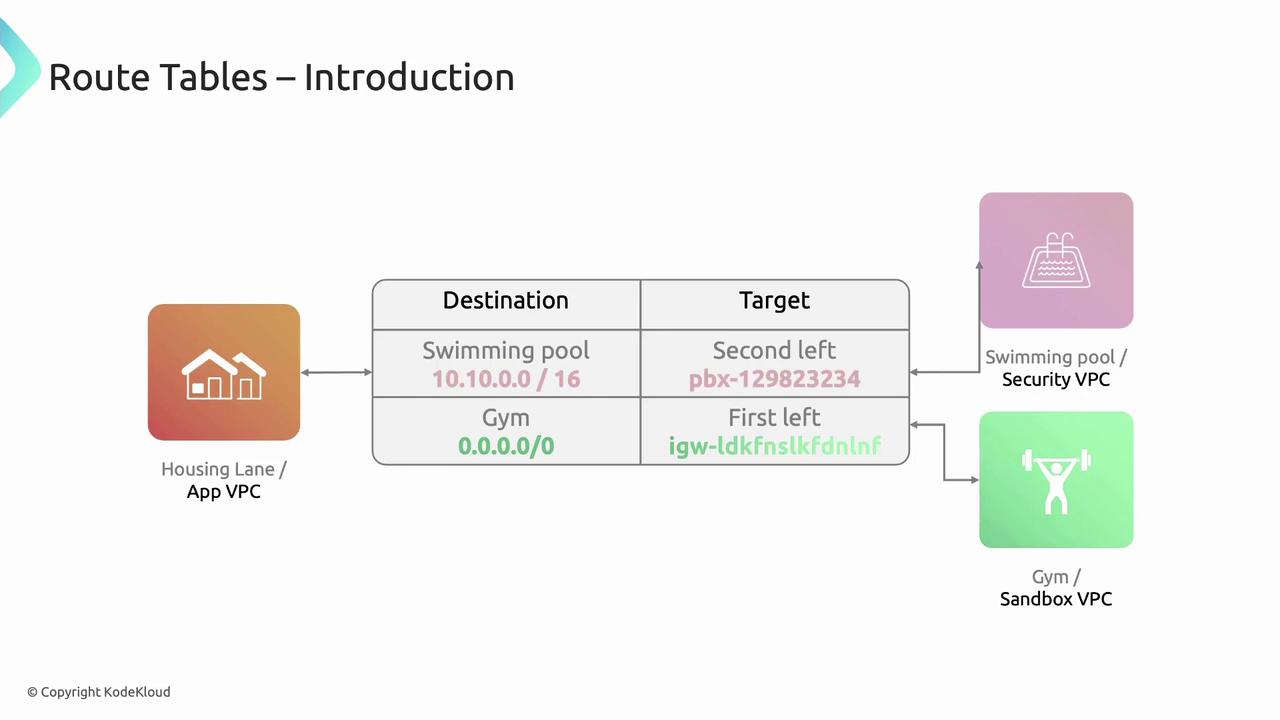

Example “App VPC” route table:

---

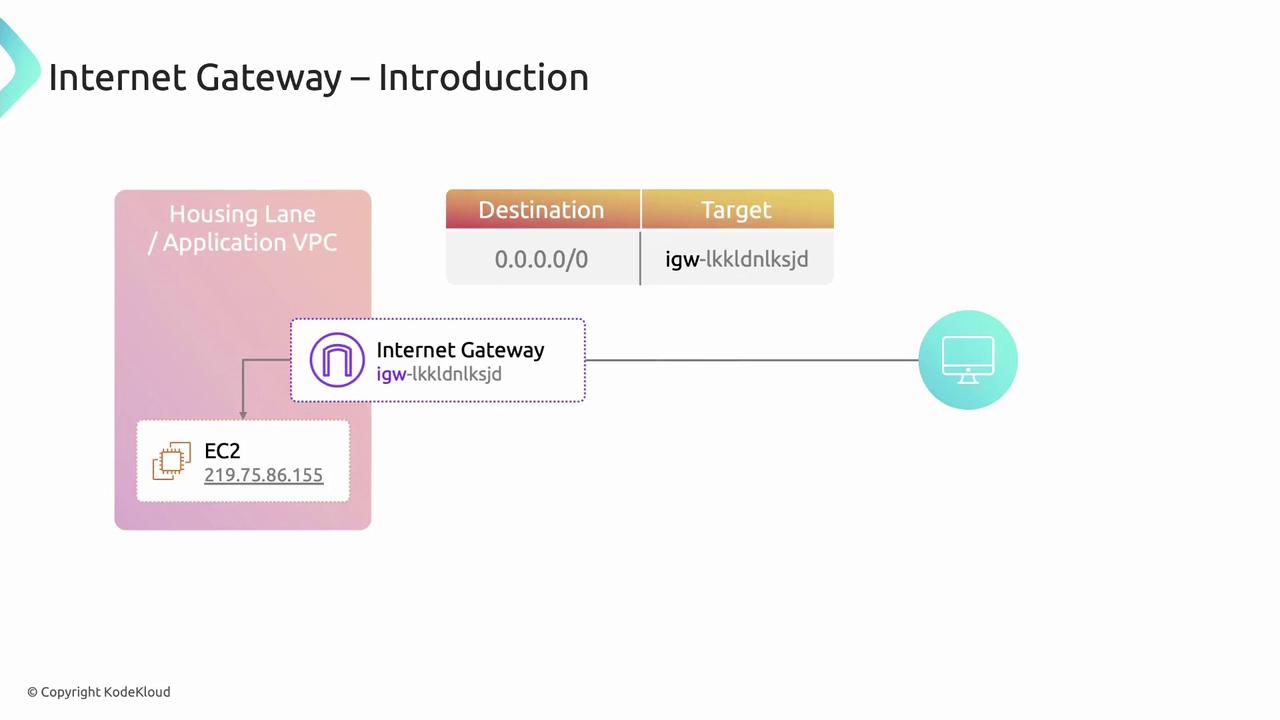

Internet Gateway: Public Access Point

An Internet Gateway (IGW) is a horizontally scaled, redundant VPC component that allows communication between your VPC and the Internet.

To enable Internet access for a subnet:

1. Create and attach an IGW to your VPC.

2. Add a route to your route table:

   • Destination: 0.0.0.0/0

   • Target: igw-<gateway-id>

3. Assign public or Elastic IPs to your EC2 instances.

---

NAT Gateway: Secure Outbound Connectivity

A NAT Gateway allows instances in private subnets to initiate outbound Internet traffic while preventing inbound connections.

Setup steps:

1. Launch a NAT Gateway in a public subnet.

2. Update the private subnet’s route table:

   • Destination: 0.0.0.0/0

   • Target: nat-<gateway-id>

Instances in the private subnet will use the NAT Gateway for OS updates, API calls, and package downloads without exposing their private IPs.

Warning

Each NAT Gateway incurs an hourly charge and data processing fees. Consider using a NAT instance for low-throughput scenarios.

Introduction to Security Group

AWS Security Groups act as virtual firewalls, controlling both inbound and outbound traffic for your EC2 instances and other resources. In this guide, you’ll learn how to configure security group rules to secure your applications while maintaining the necessary connectivity.

Security Group Analogy

Think of a gated community:

• A guard at the entrance logs visitors’ details on arrival and exit.

• Only pre-approved guests or those matching specific criteria can enter or leave.

Similarly, a Security Group inspects network packets, allowing only traffic that matches its defined rules.

Scenario Overview

You have an EC2 instance inside a VPC with an attached security group named application-security-group. This group evaluates:

1. Inbound traffic (requests coming to your instance)

2. Outbound traffic (requests leaving your instance)

Security Group Rule Components

Every security group rule—whether inbound or outbound—includes:

Configuring Inbound Rules

Inbound rules control which external systems can reach your instance.

1. Allow HTTP (port 80) from a specific IP:

    aws ec2 authorize-security-group-ingress \
      --group-name application-security-group \
      --protocol tcp \
      --port 80 \
      --cidr 121.10.13.141/32


2. Test a connection from 130.67.87.13 on port 80 → Rejected (IP not allowed).

3. Open HTTP to the world:

    aws ec2 authorize-security-group-ingress \
      --group-name application-security-group \
      --protocol tcp \
      --port 80 \
      --cidr 0.0.0.0/0


Warning

Allowing 0.0.0.0/0 exposes your port to the entire Internet. Ensure you only open ports that are strictly necessary.

Configuring Outbound Rules

By default, outbound traffic is fully open:

To tighten outbound access, specify the protocol, port range, and destination:

aws ec2 revoke-security-group-egress \
  --group-name application-security-group \
  --protocol all \
  --cidr 0.0.0.0/0


aws ec2 authorize-security-group-egress \
  --group-name application-security-group \
  --protocol tcp \
  --port 443 \
  --cidr 203.0.113.0/24

Note

Always review both inbound and outbound rules to maintain the principle of least privilege.

Best Practices

• Use descriptive security group names (e.g., web-sg, db-sg).

• Limit CIDR ranges to the smallest possible scope.

• Regularly audit rules for unused or overly permissive entries.

• Combine Security Groups with Network ACLs for layered defense.

Introduction to NACL

Network Access Control Lists (Network ACLs or NACLs) are an essential network-layer security feature in Amazon VPCs. While Security Groups enforce host-level traffic rules, NACLs apply stateless, subnet-level filters. This makes them ideal for isolating resources—such as placing databases in a separate subnet and only allowing traffic from your application subnet.

Note

Network ACLs are stateless: you must explicitly configure both inbound and outbound rules to allow return traffic. In contrast, Security Groups are stateful and automatically permit responses.

Network ACLs consist of ordered rule entries that either allow or deny specific traffic. Rules are evaluated by ascending rule number, and processing stops when a match is found.

Inbound vs. Outbound Rules

• Inbound rules filter traffic entering the subnet.

• Outbound rules filter traffic leaving the subnet.

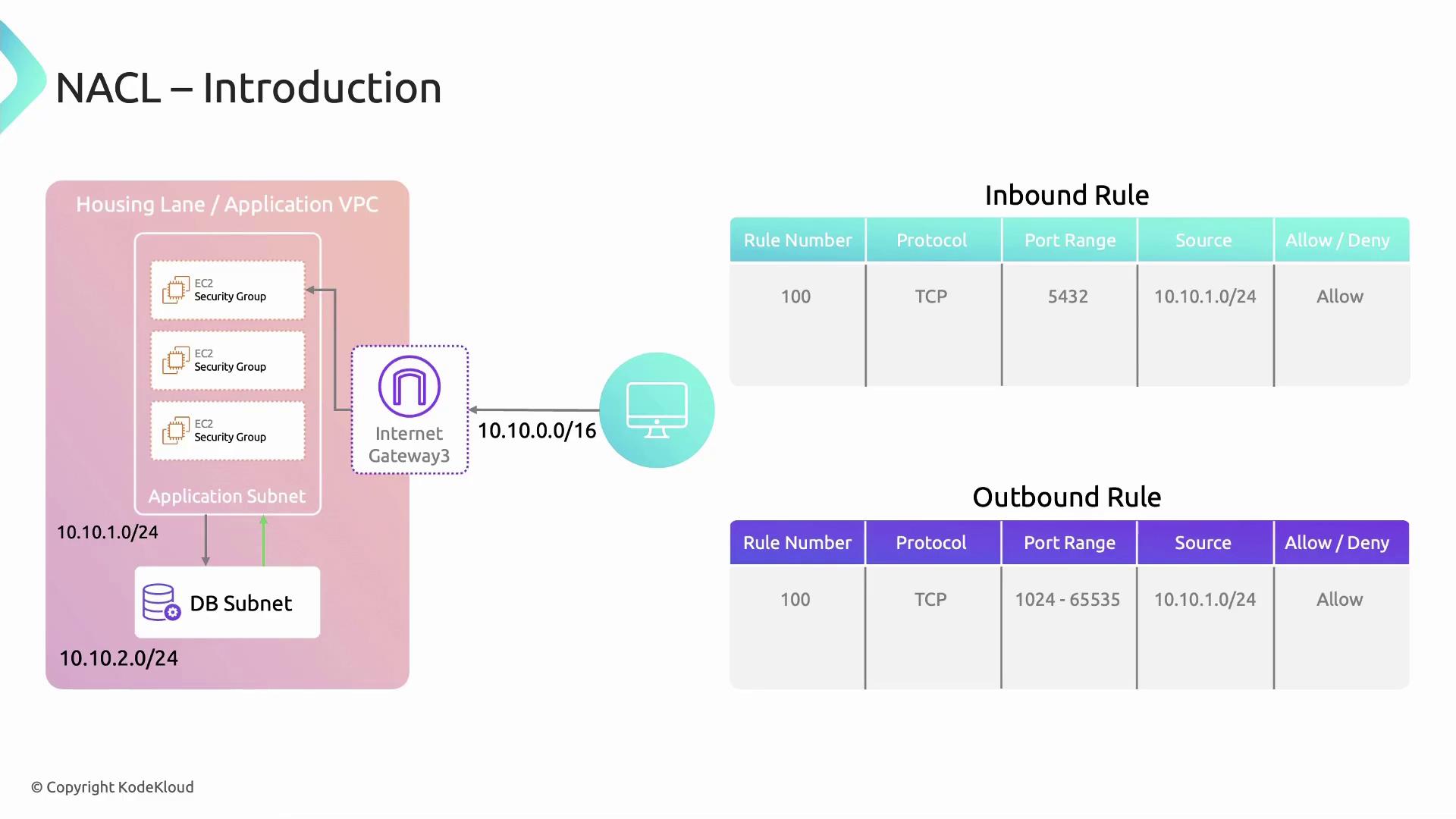

Example: Allowing Ephemeral Port Traffic

In this scenario, an application subnet (10.10.1.0/24) must communicate with a database subnet. We allow TCP traffic on ephemeral ports (1024–65535) and deny all other traffic.

Inbound Rules

Rule #  Protocol  Port Range     Source CIDR        Action
100     TCP       1024–65535     10.10.1.0/24       ALLOW
*       ALL       ALL            0.0.0.0/0          DENY

Outbound Rules

Rule #  Protocol  Port Range     Destination CIDR   Action
100     TCP       1024–65535     10.10.1.0/24       ALLOW
*       ALL       ALL            0.0.0.0/0          DENY

Warning

Always include a catch-all DENY rule (*) to block unwanted traffic. Omitting it can leave your subnet exposed.

• Combine Security Groups (stateful) and Network ACLs (stateless) for layered defense.

• Use specific rule numbers to group similar rules.

• Regularly audit NACL logs via VPC Flow Logs.

• AWS Network ACLs Documentation

• AWS Security Groups vs. NACLs

• VPC Flow Logs

Section Summary

Lesson Summary

In this lesson, we explored Amazon Elastic Compute Cloud (EC2), AWS’s core IaaS offering for provisioning and managing virtual servers in the cloud. You learned key EC2 features, pricing models, scalability options, and the fundamental networking components that make up an AWS deployment.

---

What Is Amazon EC2?

Amazon EC2 (Elastic Compute Cloud) is a web service launched by AWS in 2006 that lets you rent virtual machines—called instances—to run applications without investing in physical hardware or managing your own data center infrastructure. EC2 instances can be resized, scaled, and configured to meet workloads ranging from development environments to high-performance computing.

---

Key EC2 Features

1. Instance Families

Choose from multiple instance families optimized for different workloads:

Note

Selecting the right instance family ensures optimal performance and cost efficiency for your application.

2. Pricing Models

3. Scalability & Reliability

• On-demand scaling: Launch or terminate instances programmatically.

• Auto Scaling: Automatically adjust capacity based on policies and health checks.

• Elastic Load Balancing (ELB): Distribute incoming traffic across multiple instances for fault tolerance.

4. High Availability

• Spread instances across multiple Availability Zones (AZs) within a Region.

• Built-in redundancy and rapid failover.

5. Flexible Configurations

• Choose from dozens of operating systems (Linux, Windows) and preconfigured AMIs.

• Customize CPU, memory, storage (EBS or instance store), and networking (ENI, IP).

6. AWS Service Integrations

EC2 seamlessly integrates with AWS services, including Amazon S3, AWS Lambda, Amazon RDS, AWS Identity and Access Management (IAM), and Amazon CloudWatch, enabling robust, scalable architectures.

---

Core Networking Concepts

AWS Account

Your root container for AWS resources, billing, and identity controls.

AWS Region & Availability Zones

• Region: A geographical area (e.g., us-east-1) with multiple isolated data centers.

• Availability Zone (AZ): An individual data center with its own power and networking setup.

Amazon VPC

A Virtual Private Cloud where you define your own IP address range, subnets, route tables, and gateways.

Subnets

• Public Subnet: Instances have direct internet access via an Internet Gateway.

• Private Subnet: Instances cannot be reached from the internet without a NAT Gateway or proxy.

Internet Gateway

Attaches to your VPC to enable outbound and inbound internet traffic for public subnets.

NAT Gateway

Provides outbound-only internet access for instances in private subnets, blocking inbound connections.

Route Table

Determines how traffic flows within your VPC and to external networks (Internet Gateway, NAT Gateway, peering connections).

Security Group

Stateful virtual firewall at the instance level that controls inbound and outbound traffic based on rules.
