Why Foreign Key Constraint Errors Occur in Spring Data JPA and How to Resolve Them

TuanhdotnetTuanhdotnet
5 min read

1. What Are Foreign Key Constraint Errors in JPA?

1.1 Definition of Foreign Key Constraints

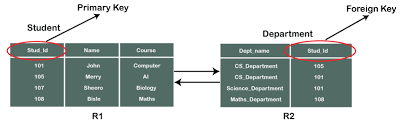

Foreign Key Constraints ensure referential integrity between two database tables. When one table references another, the foreign key enforces rules to maintain a valid relationship. For example, a child record cannot reference a parent record that doesn’t exist.

Example:

Consider the following tables:

  • Parent Table: Contains the primary key (id).
  • Child Table: References the id of the Parent Table.

If you try to insert a child record referencing a non-existent parent ID, the database throws a Foreign Key Constraint Violation.


1.2 How JPA Manages Foreign Keys

Spring Data JPA provides annotations such as @ManyToOne, @OneToMany, and @OneToOne to define relationships. Underneath, JPA translates these annotations into SQL foreign key constraints. Improper use of these annotations can result in constraint violations.

2. Common Causes of Foreign Key Constraint Errors

2.1 Persisting Child Entities Without Persisting Parent Entities

When persisting entities, if a child references a parent that hasn’t been saved yet, a foreign key violation occurs. JPA doesn’t automatically manage the order of persistence for dependent entities.

Code Example:

@Entity
public class Parent {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;

    private String name;
}

@Entity
public class Child {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;

    @ManyToOne
    @JoinColumn(name = "parent_id", nullable = false)
    private Parent parent;
}

Problematic Save Operation:

Parent parent = new Parent();
parent.setName("Parent 1");

Child child = new Child();
// Parent is not persisted yet
child.setParent(parent);

childRepository.save(child); // Throws Foreign Key Constraint Error

2.2 Deleting Parent Entities Without Handling Cascade Operations

When a parent entity is deleted without addressing dependent child entities, foreign key violations occur.

Code Example:

@Entity
public class Parent {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;

    @OneToMany(mappedBy = "parent", cascade = CascadeType.REMOVE)
    private List<Child> children;
}

If the CascadeType.REMOVE annotation is missing, deleting a parent with associated children will throw a foreign key error.

3. Strategies to Resolve Foreign Key Constraint Errors

3.1 Ensuring Entity Persistence Order

Ensure that parent entities are saved before their child entities.

Correct Save Operation:

Parent parent = new Parent();
parent.setName("Parent 1");
parentRepository.save(parent); // Persist the parent first

Child child = new Child();
child.setParent(parent);
childRepository.save(child); // Save the child after the parent

3.2 Using CascadeType for Simplified Management

Use cascading operations to manage parent-child relationships efficiently. When a parent is saved or deleted, the operations automatically propagate to child entities.

Example:

@OneToMany(mappedBy = "parent", cascade = CascadeType.ALL)
private List<Child> children = new ArrayList<>();

Behavior:

  • CascadeType.ALL: Automatically persists, merges, or removes child entities when the parent is managed.
  • CascadeType.REMOVE: Deletes all child entities when the parent is deleted.

3.3 Using Orphan Removal for Detached Entities

Use the orphanRemoval = true option to automatically remove child entities that are no longer associated with a parent.

Example:

@OneToMany(mappedBy = "parent", cascade = CascadeType.ALL, orphanRemoval = true)
private List<Child> children = new ArrayList<>();

Behavior:

If a child is removed from the parent’s list, JPA automatically deletes it.

3.4 Validating Data Integrity in the Application Layer

Before performing any operation, validate the relationships between entities. For instance, check if a parent exists before associating it with a child.

Example:

public Child createChild(Long parentId, Child child) {
    Parent parent = parentRepository.findById(parentId)
            .orElseThrow(() -> new RuntimeException("Parent not found"));
    child.setParent(parent);
    return childRepository.save(child);
}

4. Best Practices for Avoiding Foreign Key Constraint Errors

Define Database Constraints Clearly

Ensure that the database schema is well-defined with proper foreign key relationships and constraints.

Leverage JPA Lifecycle Callbacks

Use annotations like @PrePersist or @PostPersist to automatically handle relationship integrity.

Example:

@PrePersist
public void validateParent() {
    if (this.parent == null) {
        throw new RuntimeException("Parent must not be null");
    }
}

Test Relationships Thoroughly

Write integration tests to verify that entity relationships work as expected.

Example:

@Test
public void testParentChildRelationship() {
    Parent parent = new Parent();
    parent.setName("Test Parent");
    parentRepository.save(parent);

    Child child = new Child();
    child.setParent(parent);
    childRepository.save(child);

    assertEquals(1, childRepository.findAll().size());
}

5. Conclusion

Understanding and resolving foreign key constraint errors in Spring Data JPA is a key skill for building robust relational applications. By correctly managing entity relationships, leveraging cascading operations, and validating data integrity, you can avoid these errors and ensure smooth database interactions. If you have any questions or need further clarification, feel free to leave a comment below!
